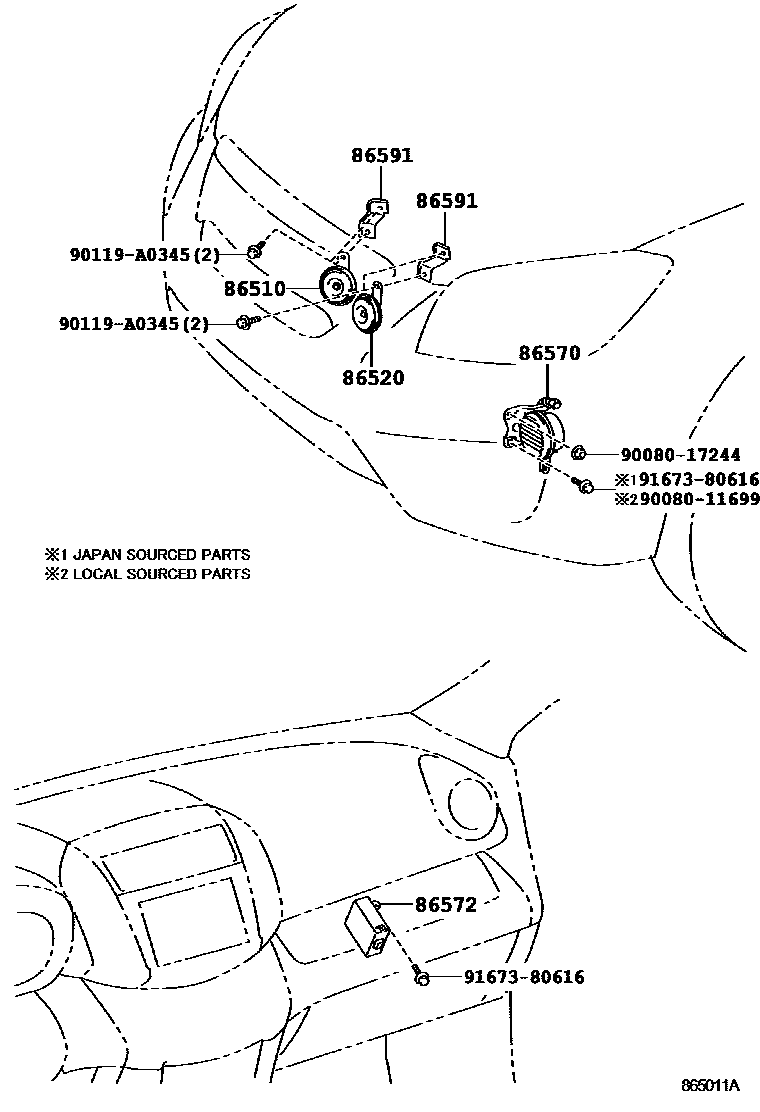

Toyota RAV4 喇叭 — Figure 8611
Toyota RAV4 EPC diagram 8611, 喇叭, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86510 | tweeter assembly | 86510-0R010 |
| 86520 | Subwoofer assembly | 86520-0R010 |
| 86570 | Vehicle intrusion speaker assembly | 86570-42010 |
| 86572 | vehicle hacking speaker controller | 86572-42010 |
| 86591 | speaker bracket | 86591-0R010 |
