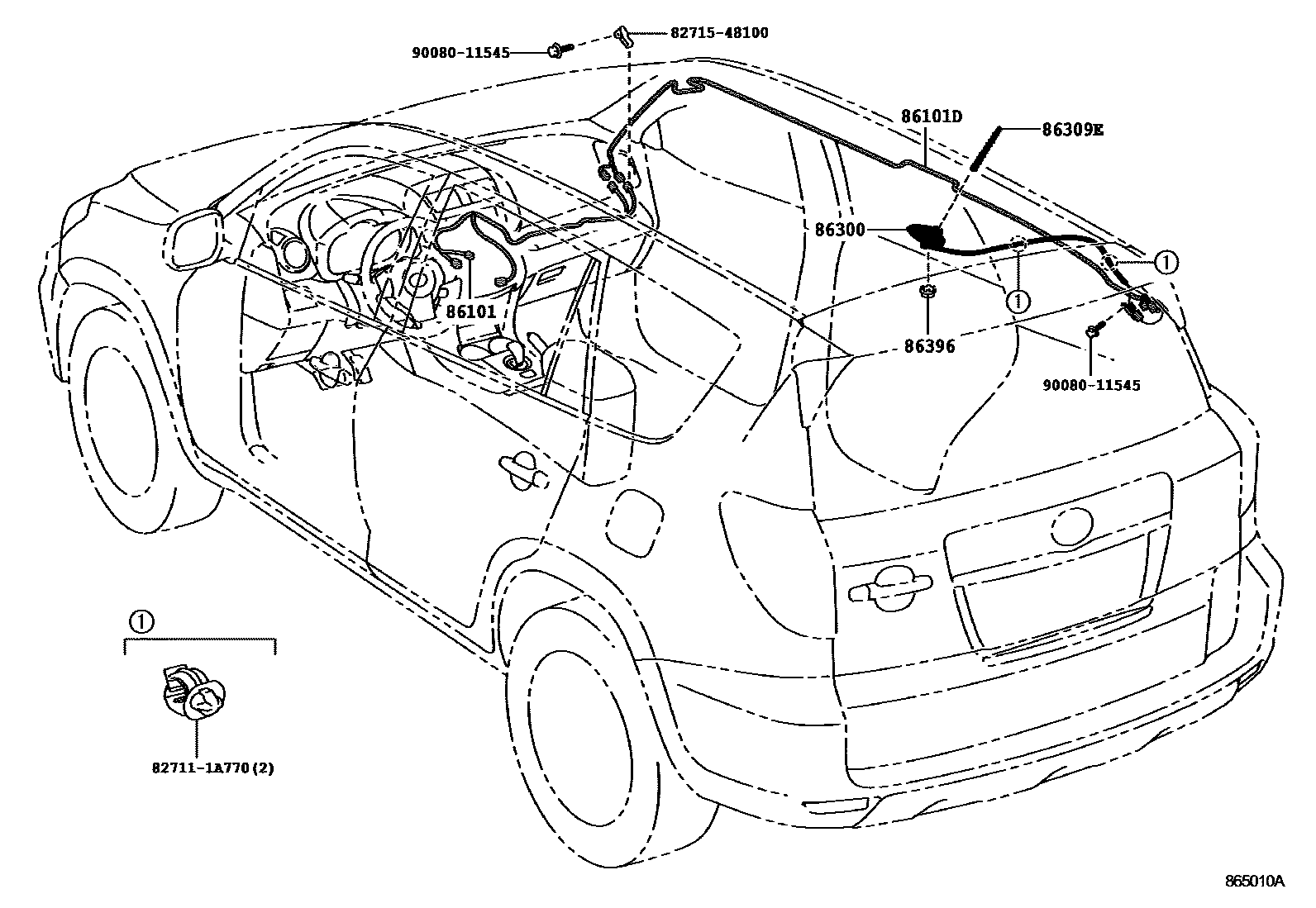

Toyota RAV4 antenna — Figure 8604
Toyota RAV4 EPC diagram 8604, antenna, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86101 | Antenna wire sub-assembly | 86101-0R230 |
| 86101D | No. 3 antenna wire sub-assembly | 86101-0R220 |
| 86300 | Antenna assembly with fixing parts | 86760-0R020 · 86760-0R021 |
| 86309E | Roof antenna sub-assembly | 86761-47011 |
| 86396 | Antenna nut | 86396-47010 |
