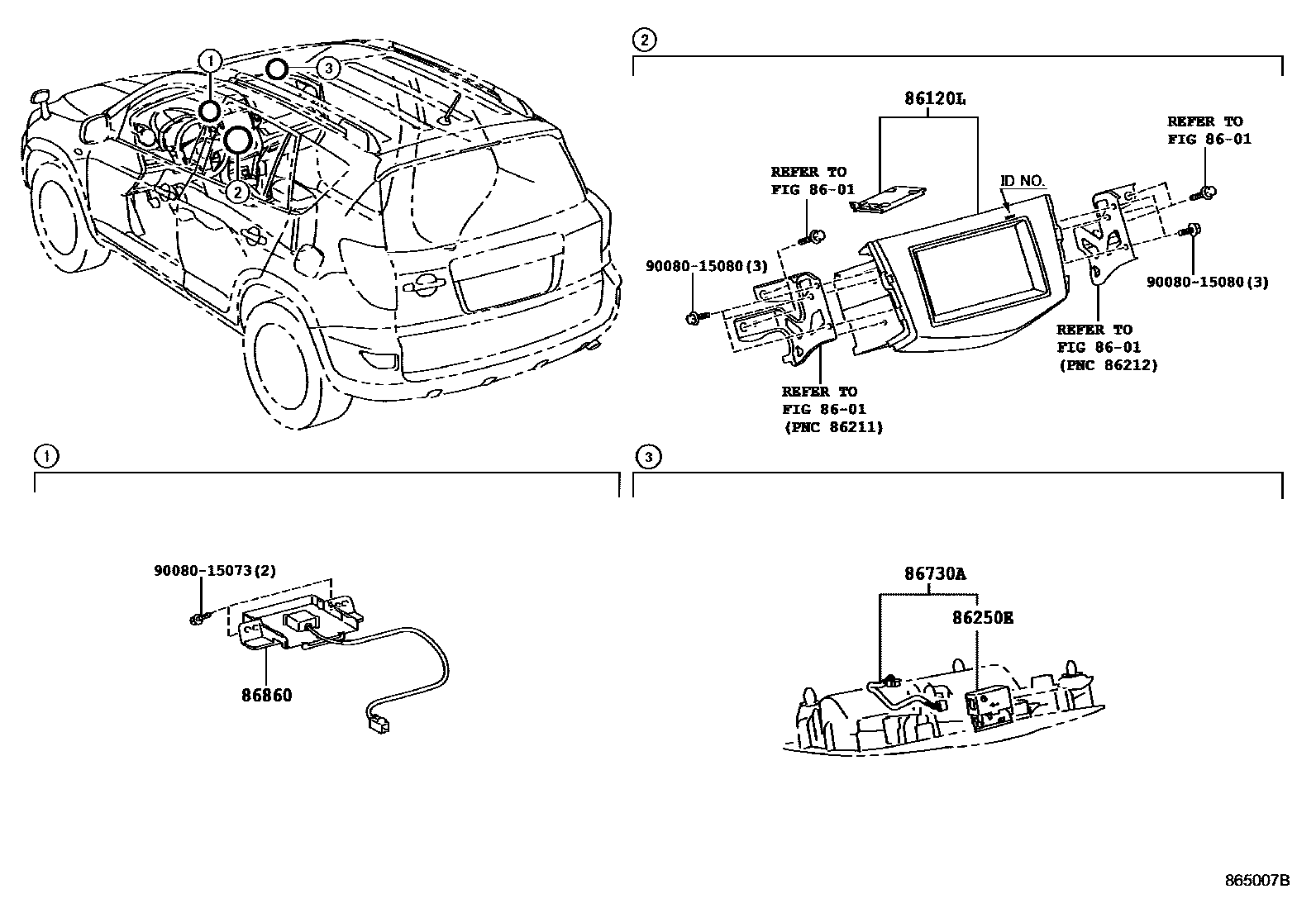

Toyota RAV4 导航和前监视器显示屏 — Figure 8603
Toyota RAV4 EPC diagram 8603, 导航和前监视器显示屏, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86120L | Navigation receiver assembly | 86100-0R030 · 86100-0R031 · 86100-0R032 · 86100-0R033 |
| 86250E | amplifier loudspeaker assembly | 86250-52030 |
| 86730A | Telephone amplifier assembly | 86730-42020 |
| 86860 | Navigation antenna assembly | 86860-42030 |
