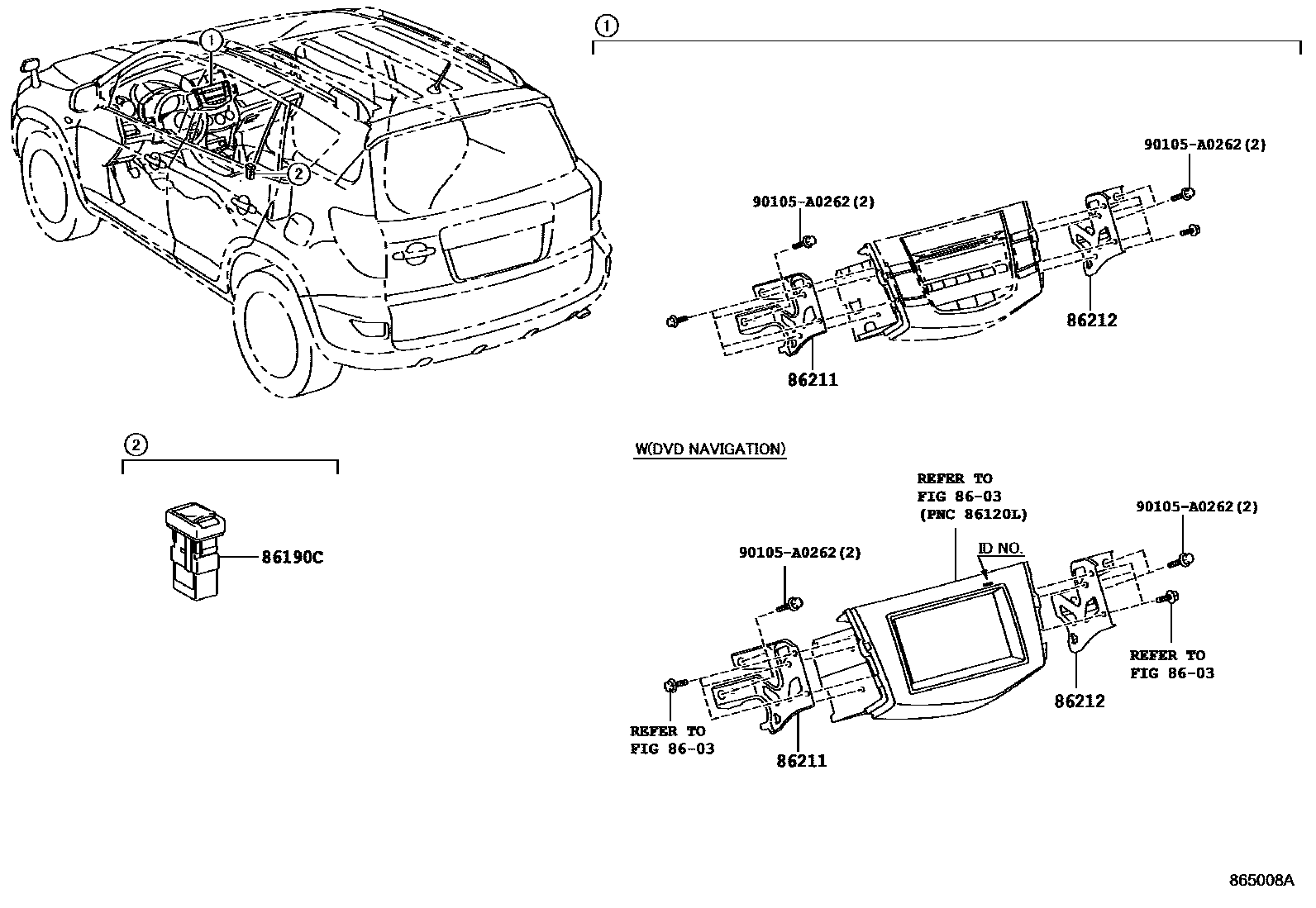

Toyota RAV4 收音机、放大器和冷凝器 — Figure 8601
Toyota RAV4 EPC diagram 8601, 收音机、放大器和冷凝器, with 2 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

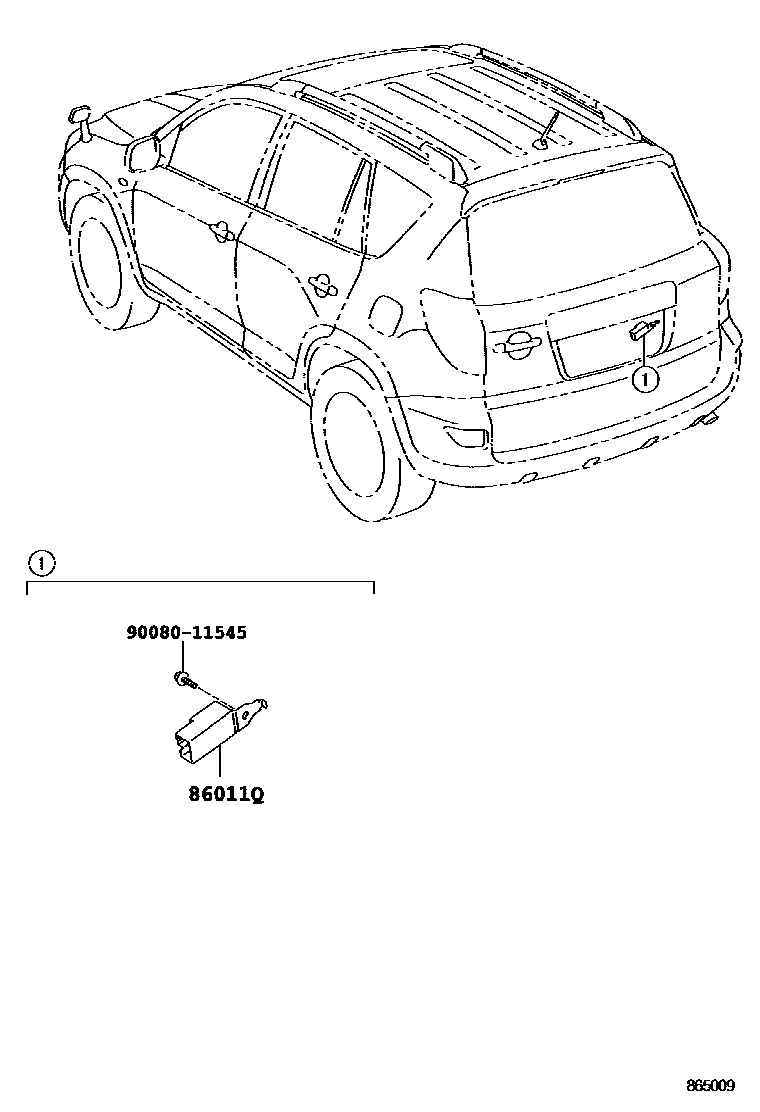

| 86011Q | radio settings phase modulator | 90980-04197 |
| 86190C | Stereo socket connector assembly No. 1 | 86190-0C020 |
| 86211 | No. 1 radio bracket | 86211-0R010 |
| 86212 | No. 2 radio bracket | 86212-0R010 |
