Toyota RAV4 后清洗器 — Figure 8504

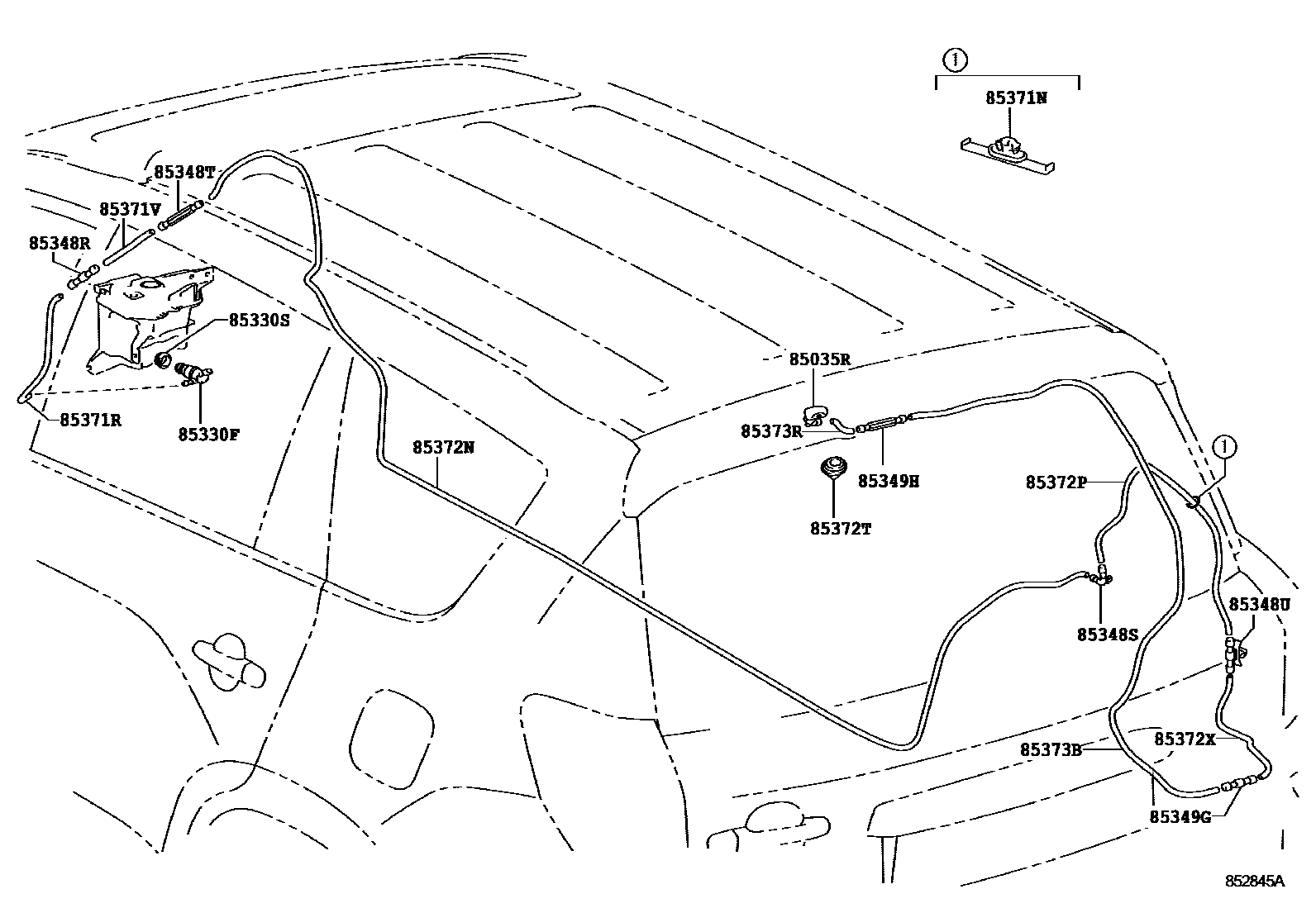

Toyota RAV4 EPC diagram 8504, 后清洗器, with 1 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035R | Rear washer nozzle sub-assembly | 85391-42010 |
| 85330F | Rear washer motor and pump assembly | 85330-60180 |
| 85330S | Rear washer fluid tank bushing | 85336-60300 |
| 85348R | No. 1 rear washer hose connector | 85375-0E010 |
| 85348S | No. 1 rear cleaner elbow joint | 85375-60290 |
| 85348T | No. 2 rear washer hose connector | 85349-32150 |
| 85348U | No. 3 rear washer hose connector | 85376-0R020 |
| 85349G | No. 2 rear washer hose connector | 85349-89122 |
| 85349H | No. 3 rear washer hose connector | 85349-32150 |
| 85371N | Rear washer hose clamp | 82711-3F290 |
| 85371R | Rear washer hose (from motor to connector) | 90068-59071 |
| 85371V | Rear washer hose (from fitting to fitting) | 90068-33019 |
| 85372N | No. 1 rear washer hose (from connector to connector) | 90068-59102 |
| 85372P | No. 2 rear washer hose (from connector to connector) | 90068-59101 |
| 85372T | Cleaner seal | 85372-20020 |
| 85373R | Rear washer hose (from connector to nozzle) | 90068-33029 |
