Toyota RAV4 EV充电器&DC/DC转换器 — Figure 8442

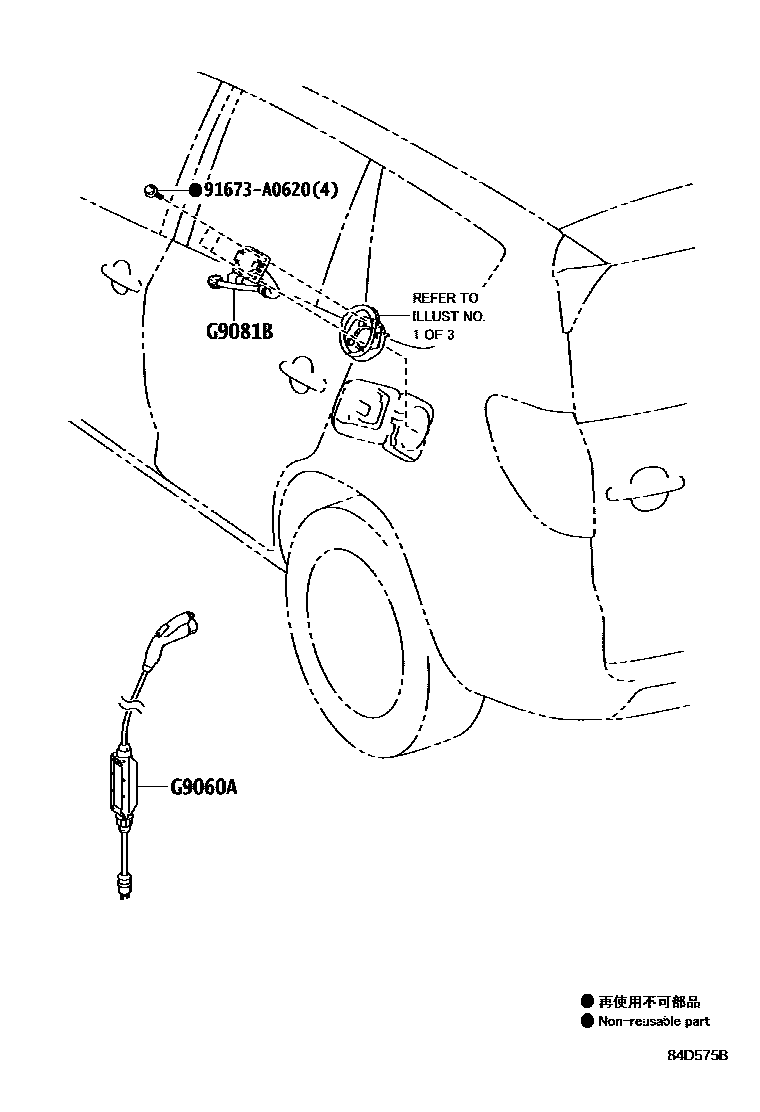

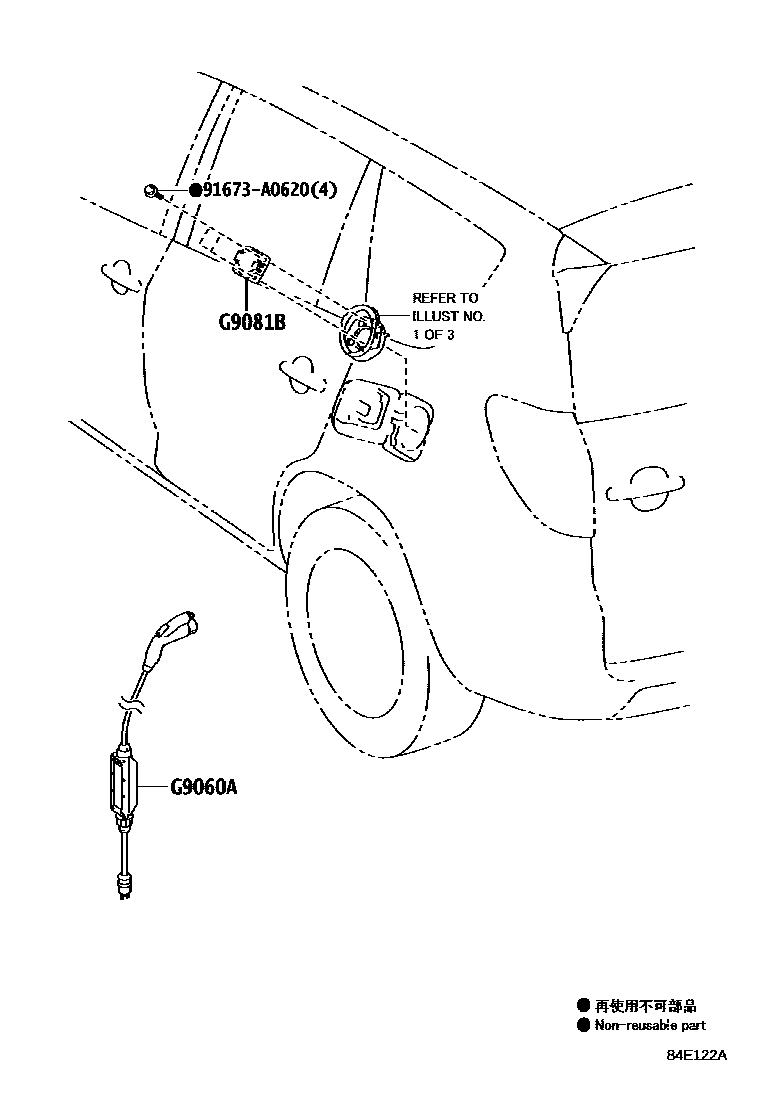

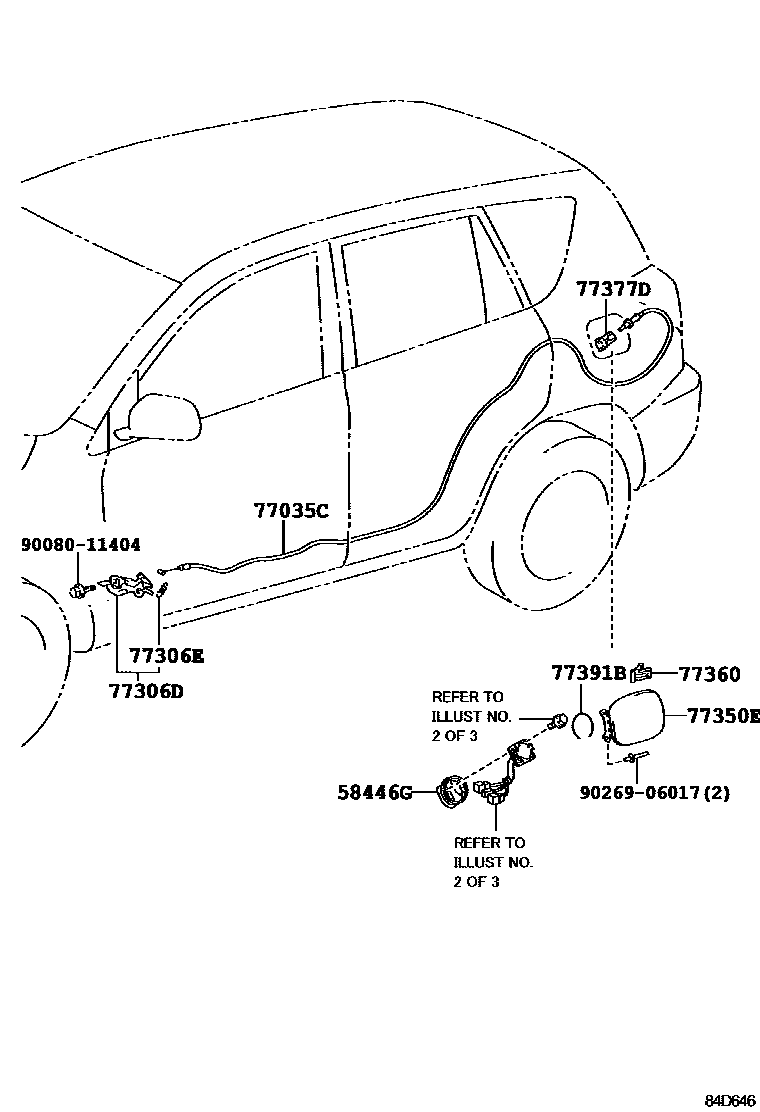

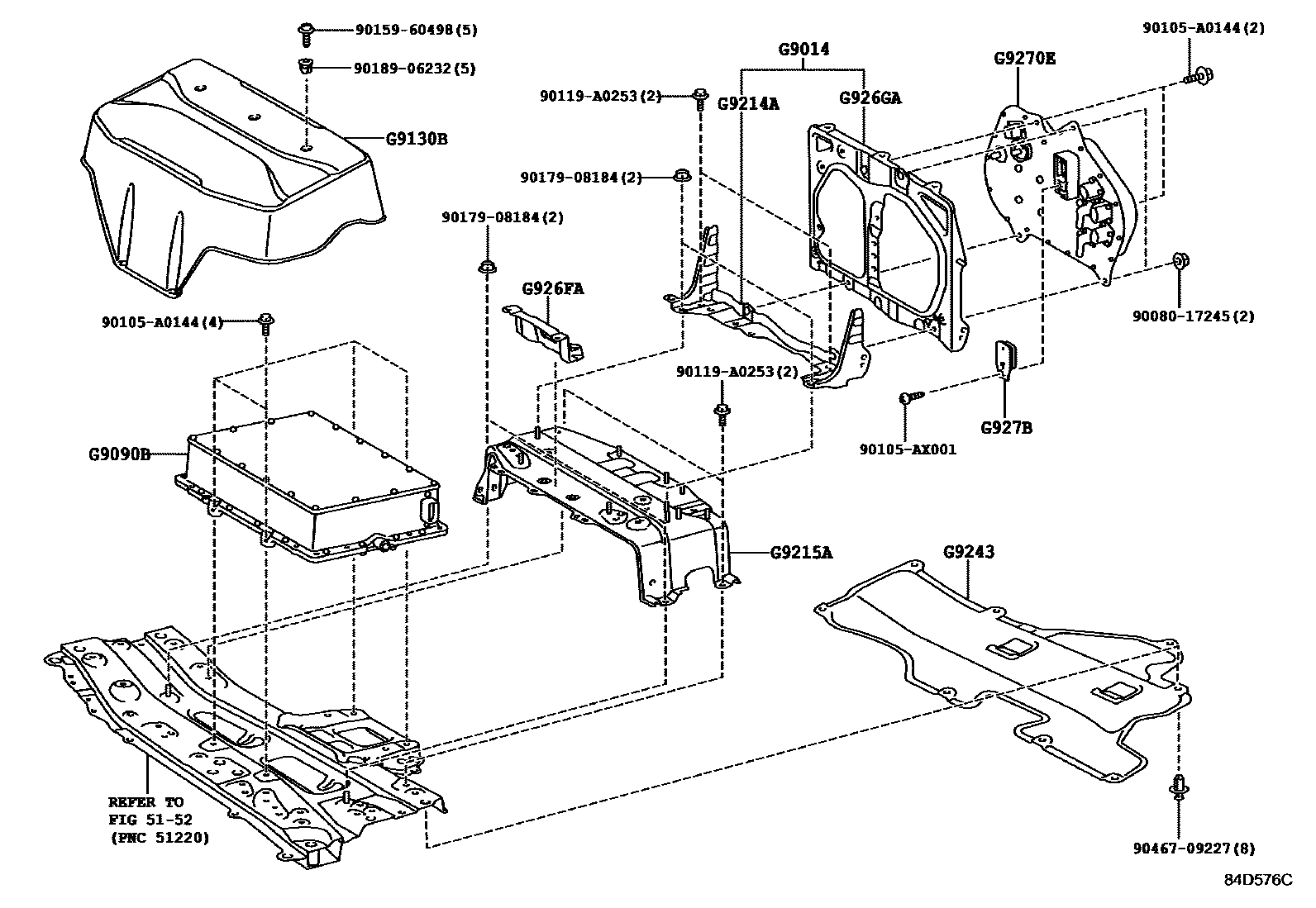

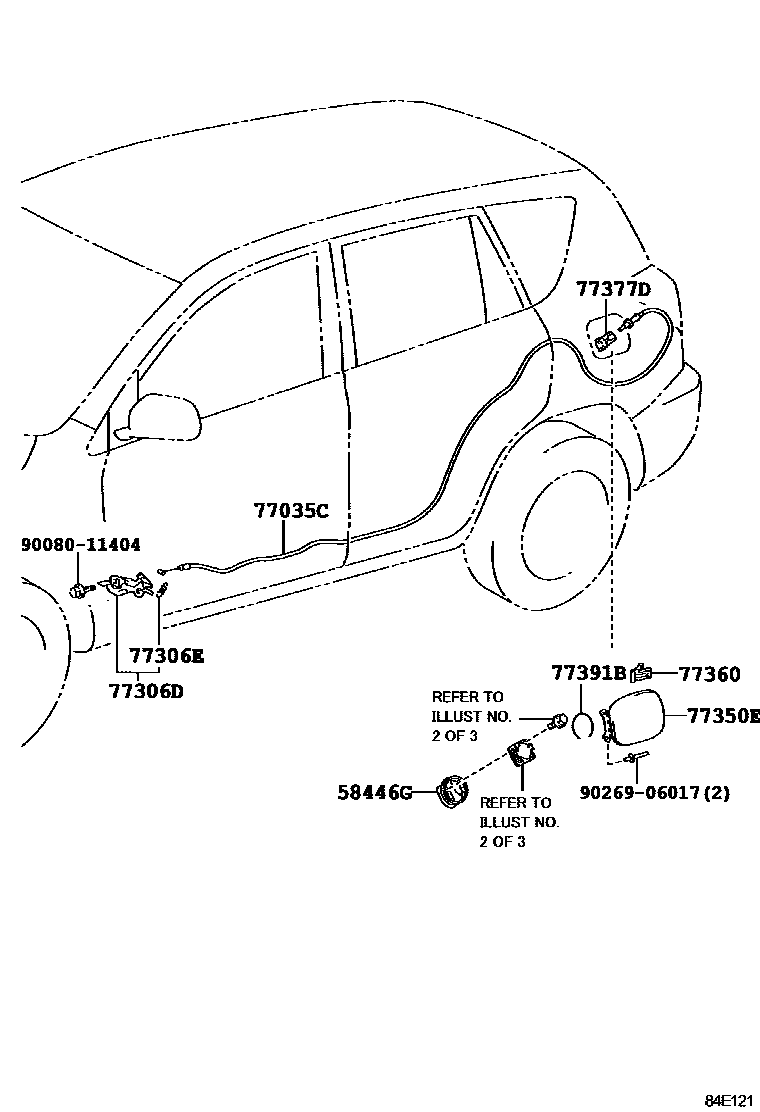

Toyota RAV4 EPC diagram 8442, EV充电器&DC/DC转换器, with 5 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58446G | PROTECTEUR, CAPOT DE L'OUVERTURE DE SERVICE DE LA BATTERIE | 58446-0R010 |
| 77035C | SS-ENS. CABLE, CONTROLE DU VERROUILLAGE DU CAPOT DE CHARGE | 77035-0R040 |
| 77306D | SS-ENS. LEVIER, OUVERTURE DE LA SERRURE DU CAPOT DE CHARGE | 77306-0R030 |
| 77306E | RESSORT, LEVIER D'OUVERTURE DE SERRURE DU CAPOT DE CHARGE | 90506-09004 |
| 77350E | ENSEMBLE CAPOT, OUVERTURE DE LA PRISE DE CHARGE | 77350-0R010 |
| 77360 | ENSEMBLE RESSORT, CAPOT D'OUVERTURE DE LA PRISE DE CHARGE | 77360-0R010 |
| 77377D | ARRETOIR, SERRURE DU CAPOT D'OUVERTURE DE PRISE DE CHARGE | 77377-02010 |
| 77391B | SEGMENT, CAISSON D'ASPIRATION DE CHARGE | 77391-0R010 |
| G9014 | DC/DC converter No. 1 bracket sub-assembly | G9014-0R010 · G9014-0R011 |
| G9060A | Electric vehicle charger cable assembly | G9060-47190 |
| G9081B | EV charger water inlet sub-assembly with cable | G9081-0R012 · G9081-0R013 · G9081-0R014 |
| G9090B | Electric vehicle charger assembly | G9090-0R010 · G9090-0R011 |
| G9130B | DC/DC converter right side cover assembly | G9130-0R010 |
| G9214A | DC/DC converter bracket No. 1 | G9214-0R010 |
| G9215A | DC/DC converter bracket No. 2 | G9215-0R010 |
| G9243 | DC/DC converter insulation board | G9243-0R020 |
| G926FA | EV charger mounting bracket No.1 | G926F-0R010 |
| G926GA | EV charger mounting bracket No. 2 | G926G-0R010 |
| G9270E | DC/DC converter assembly | G9270-0R010 · G9270-0R011 |
| G927B | PROTECTEUR, CONVERTISSEUR VEHICULE ELECTRIQUE | G927B-0R010 |
