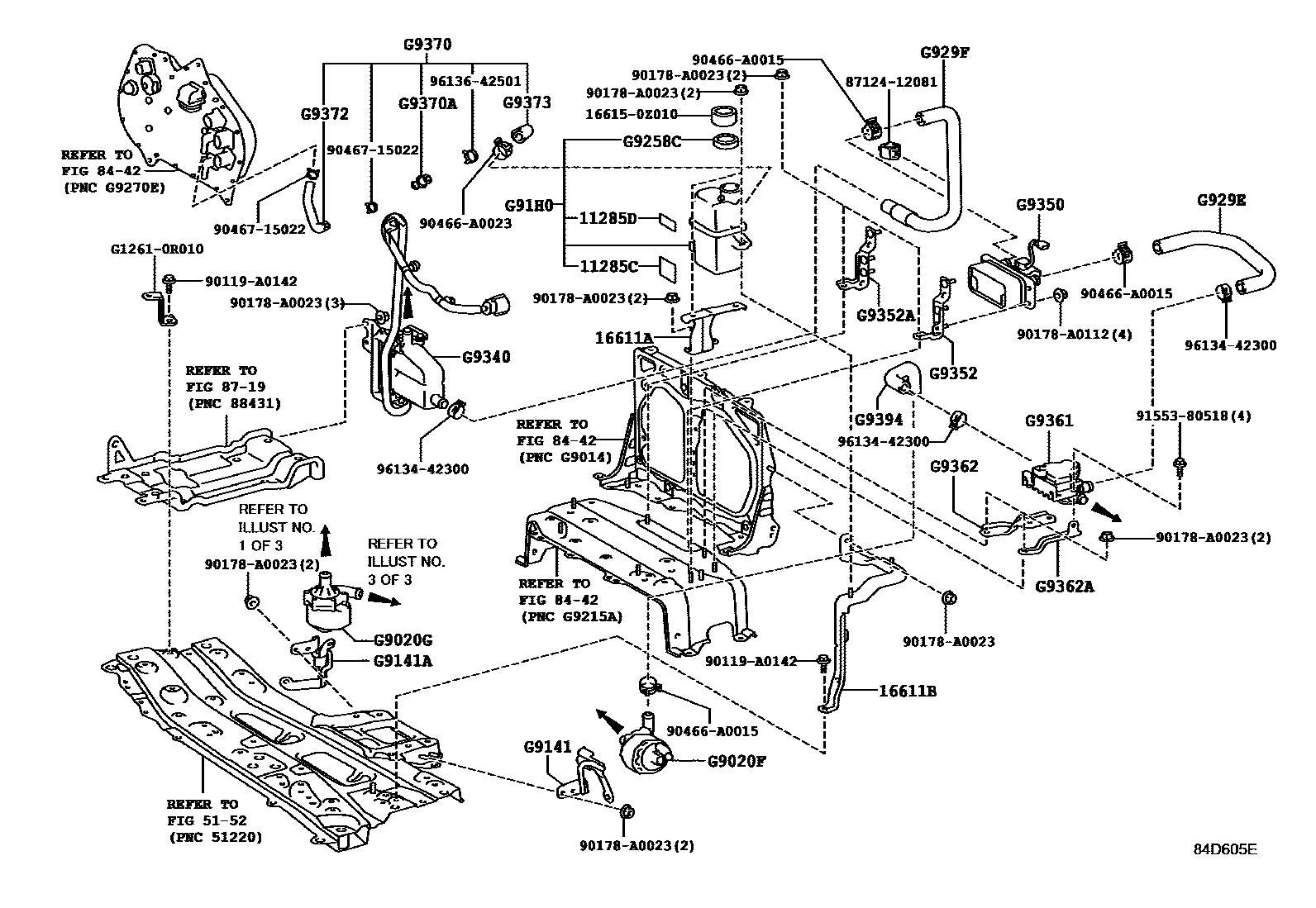

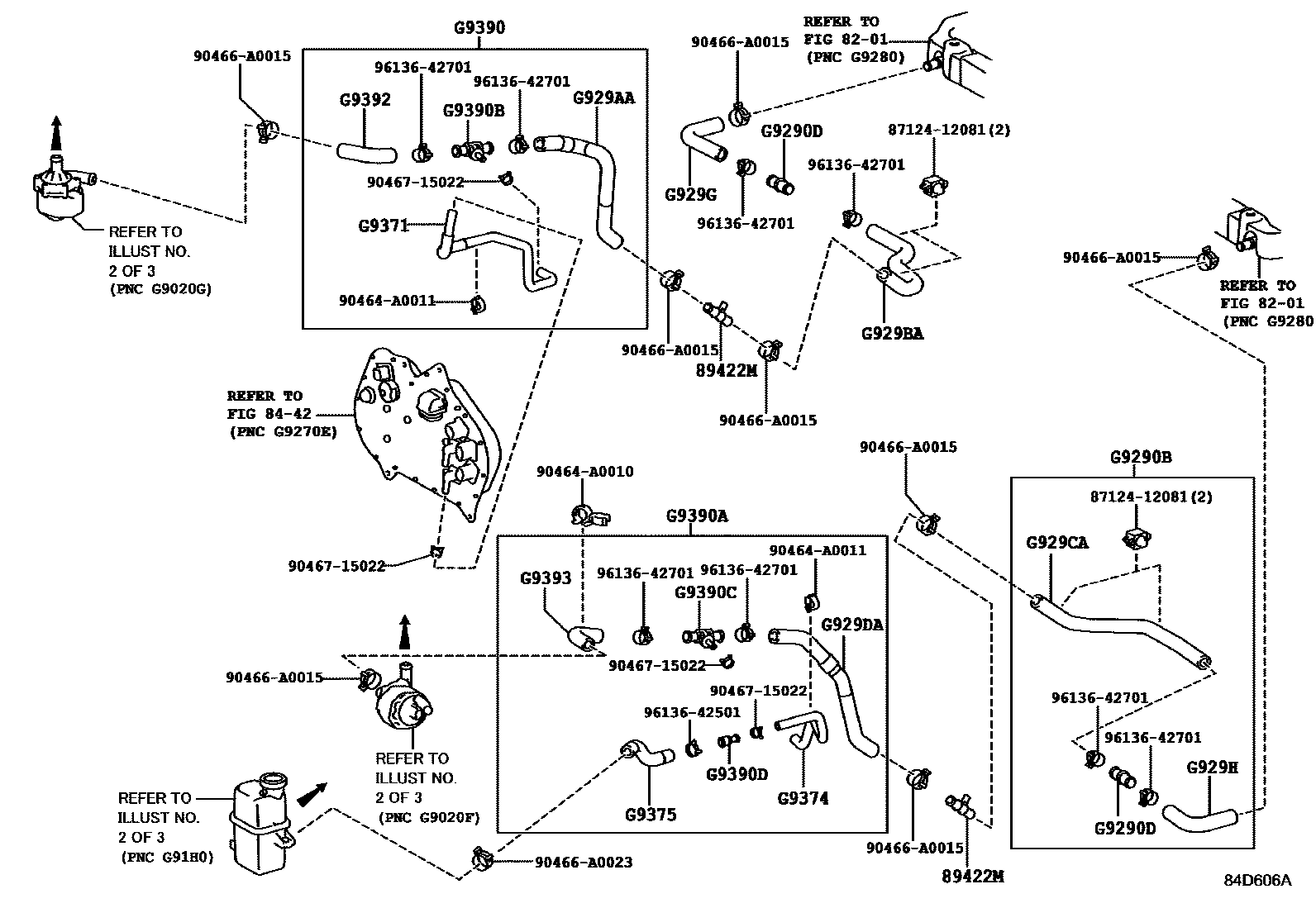

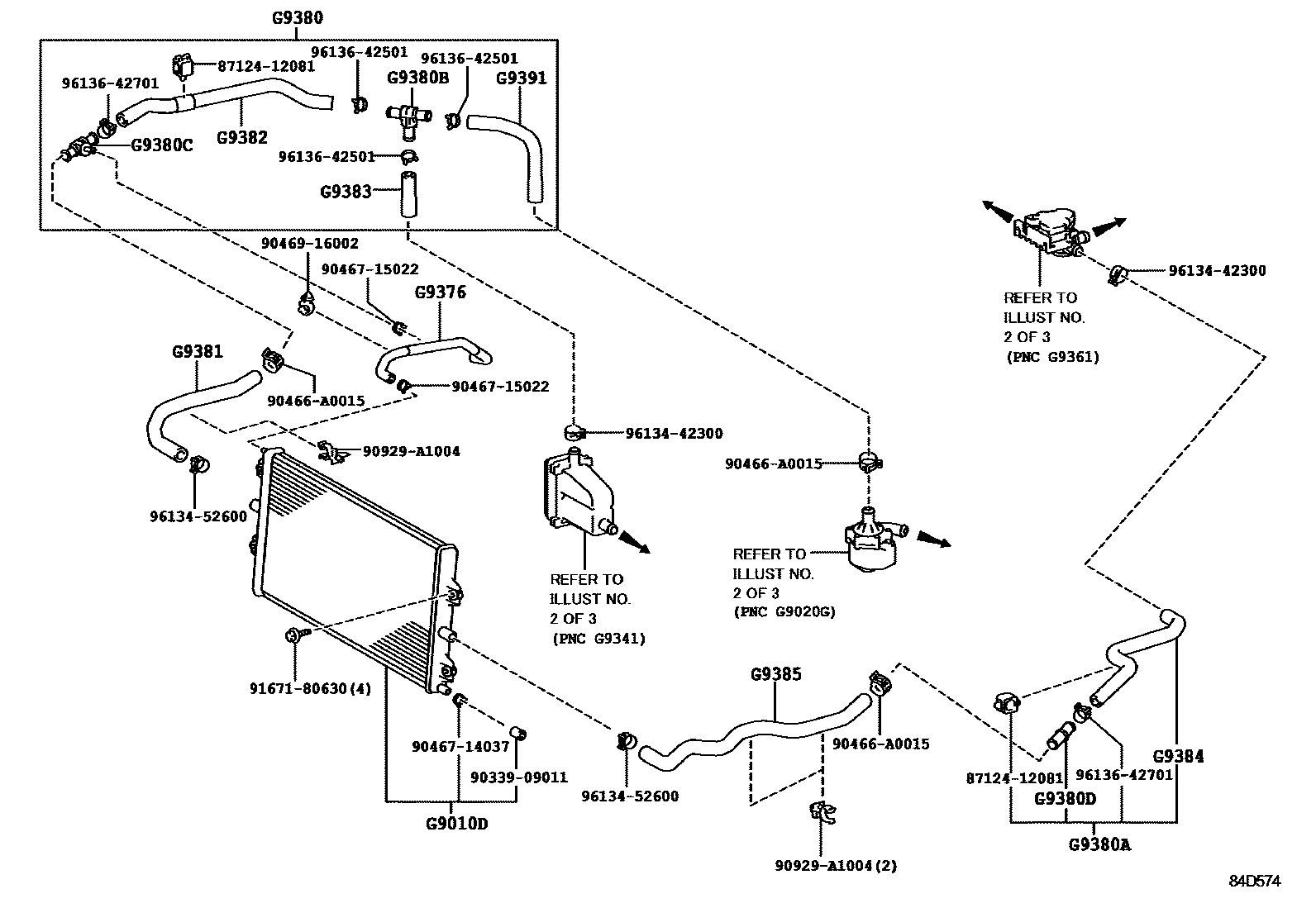

Toyota RAV4 EV冷却系统 — Figure 8441
Toyota RAV4 EPC diagram 8441, EV冷却系统, with 3 images and 56 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11285C | Coolant system information label | 11285-10020 |
| 11285D | Coolant System Warning Label | 11285-10030 |
| 16611A | No. 1 battery storage tank bracket | 16611-0Z010 |
| 16611B | No. 2 battery tank bracket | 16611-0Z020 |
| 89422M | water temperature sensor | 89422-0R010 |
| G9010D | Radiator assembly | G9010-0R010 |
| G9020F | Water pump assembly with motor and insulation plate on the left | G9020-0R020 |
| G9020G | Water pump assembly with motor and insulation plate on the right side | G9020-0R030 |
| G9141 | EV water pump left bracket | G9141-0R020 |
| G9141A | EV water pump right side bracket | G9141-0R030 |
| G91H0 | Battery reservoir assembly | G91H0-42030 |
| G9258C | Battery reservoir cap | G9258-47011 |
| G9290B | No. 1 EV battery hose assembly | G9290-0R020 |
| G9290D | Double-pass pipe | 90412-19001 |
| G929AA | No. 1 EV battery hose | G929A-0R010 |
| G929BA | No. 2 EV battery hose | G929B-0R010 |
| G929CA | No. 3 EV battery hose | G929C-0R010 |
| G929DA | No. 4 EV battery hose | G929D-0R010 |
| G929E | DURITE, BATTERIE VEHICULE ELECTRIQUE, NO.5 | G929E-0R010 |
| G929F | DURITE, BATTERIE VEHICULE ELECTRIQUE, NO.6 | G929F-0R020 |
| G929G | No. 7 EV battery hose | G929G-0R030 |
| G929H | No. 8 EV battery hose | G929H-0R030 |
| G9340 | ENS. RECHAUFFEUR, LIQUIDE DE REFROIDISSEMENT DE LA BATTERIE | G9340-0R010 |
| G9350 | Battery coolant cooler assembly | G9350-0R010 |
| G9352 | No. 1 battery coolant cooler bracket | G9352-0R010 |
| G9352A | No. 2 battery coolant cooler bracket | G9352-0R020 |
| G9361 | One-way switch valve | G9361-0R010 |
| G9362 | One-way coolant valve right side bracket | G9362-0R020 |
| G9362A | One-way coolant valve left bracket | G9362-0R030 |
| G9370 | EV water bypass hose assembly | G9370-0R010 |
| G9370A | Double-pass pipe | 90412-17002 |
| G9371 | No. 1 EV water bypass hose | G9371-0R010 |
| G9372 | No. 2 EV water bypass hose | G9372-0R010 |
| G9373 | No. 3 EV water bypass hose | G9373-0R010 |
| G9374 | No. 4 EV water bypass hose | G9374-0R010 |
| G9375 | No. 5 EV water bypass hose | G9375-0R010 |
| G9376 | No. 6 EV water bypass hose | G9376-0R010 |
| G9380 | No. 1 EV radiator hose assembly | G9380-0R010 |
| G9380A | No. 2 EV radiator hose assembly | G9380-0R020 |
| G9380B | tee pipe | 90413-17004 |
| G9380C | tee pipe | 90413-19004 |
| G9380D | tee pipe | 90412-19001 |
| G9381 | No. 1 EV radiator hose | G9381-0R030 |
| G9382 | No. 2 EV radiator hose | G9382-0R010 |
| G9383 | No. 3 EV radiator hose | G9383-0R010 |
| G9384 | No. 4 EV radiator hose | G9384-0R010 |
| G9385 | No. 5 EV radiator hose | G9385-0R010 |
| G9390 | No. 1 EV water pump hose assembly | G9390-0R010 |
| G9390A | No. 2 EV water pump hose assembly | G9390-0R020 |
| G9390B | tee pipe | 90413-19004 |
| G9390C | tee pipe | 90413-19004 |
| G9390D | Double-pass pipe | 90412-17002 |
| G9391 | No. 1 EV water pump hose | G9391-0R010 |
| G9392 | No. 2 EV water pump hose | G9392-0R010 |
| G9393 | No. 3 EV water pump hose | G9393-0R010 |
| G9394 | No. 4 EV water pump hose | G9394-0R010 |
