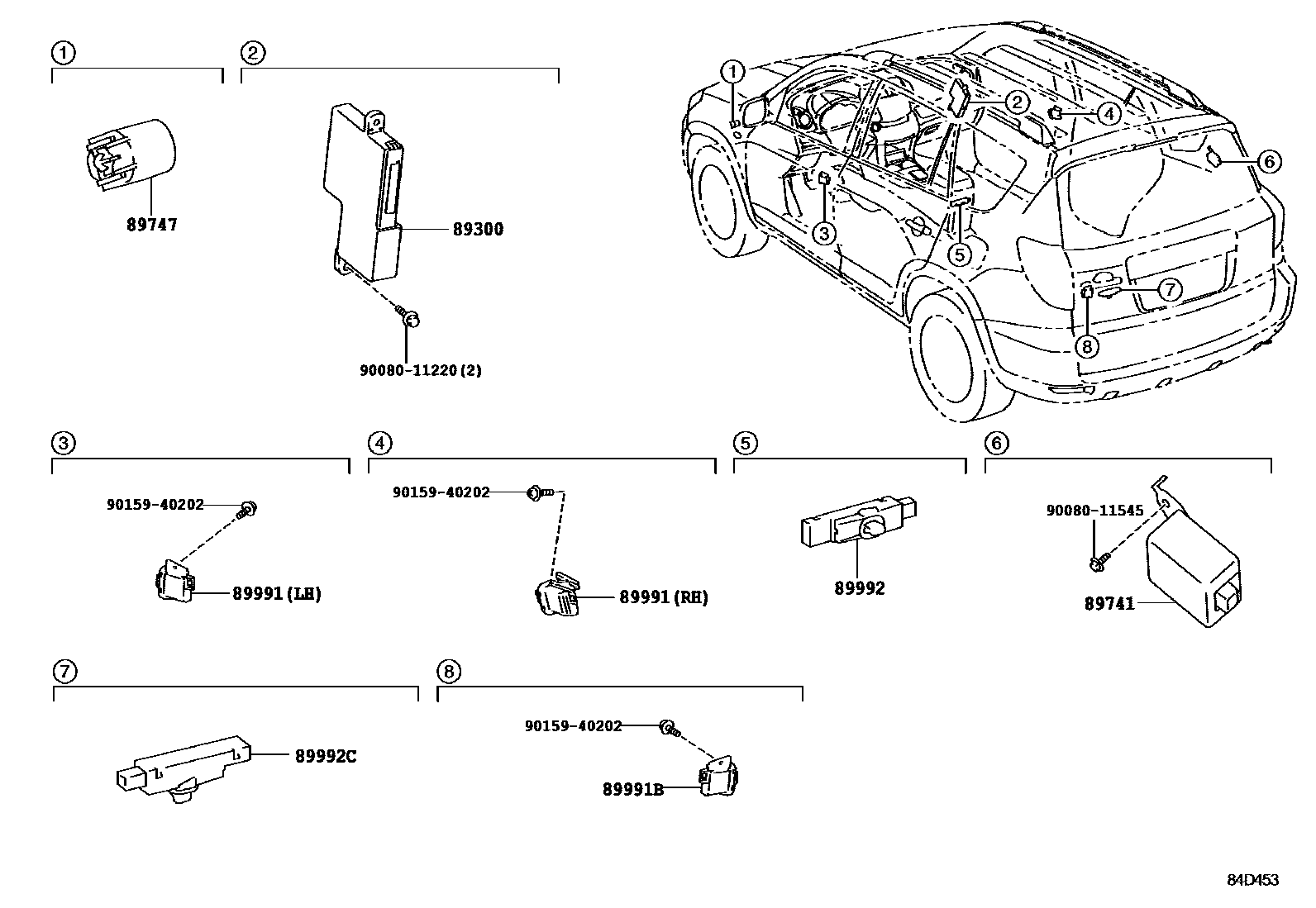

Toyota RAV4 遥控门锁 — Figure 8420
Toyota RAV4 EPC diagram 8420, 遥控门锁, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89300 | ECU integrated box assembly | 89300-42112 · 89300-42113 |
| 89741 | door control receiver | 89740-0R010 |
| 89747 | Remote door lock buzzer | 89747-02010 |
| 89991 | Door electronic key oscillator | 89991-06010 · 89991-06020 |
| 89991B | Door electronic key oscillator (for trunk) | 89991-06020 |
| 89992 | Car electronic key oscillator | 89992-06040 |
| 89992C | Electronic key oscillator in car No. 2 | 89992-07010 |
