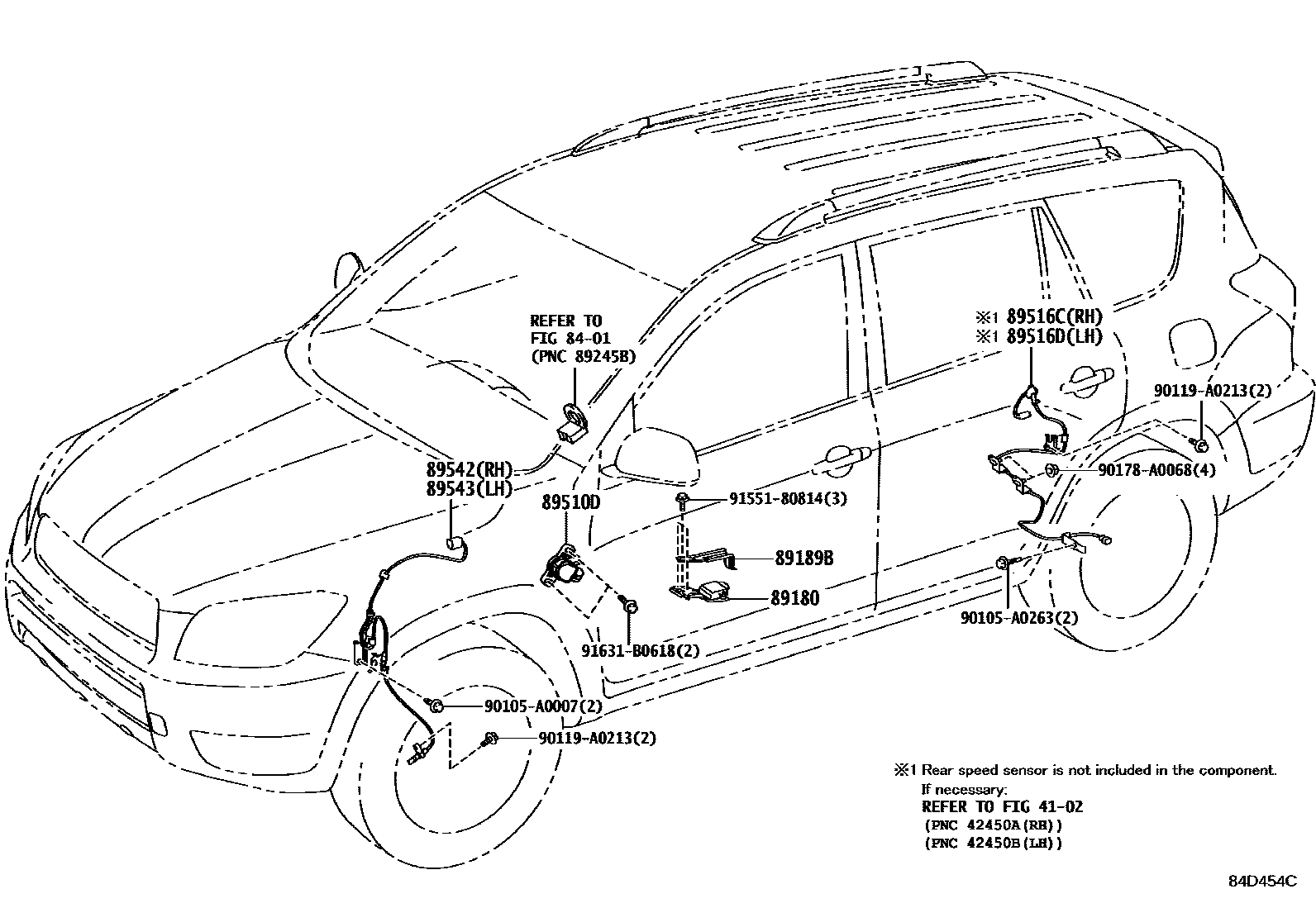

Toyota RAV4 ABS 和 VSC — Figure 8414
Toyota RAV4 EPC diagram 8414, ABS 和 VSC, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89180 | Yaw rate sensor assembly | 89180-42040 |
| 89189B | Yaw rate sensor bracket | 89189-0R010 |
| 89510D | Brake pedal stroke sensor assembly | 89510-33030 |
| 89516C | Right anti-skid control sensor harness | 89516-0R010 |
| 89516D | Left anti-skid control sensor wiring harness | 89516-0R020 |
| 89542 | Right front wheel speed sensor | 89542-0R010 |
| 89543 | Left front wheel speed sensor | 89543-0R010 |
