Toyota RAV4 开关和继电器和ECU — Figure 8401
Toyota RAV4 EPC diagram 8401, 开关和继电器和ECU, with 6 images and 79 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28371 | No. 1 ignition relay | 90987-A2002 |
| 81851C | Indicator light assembly | 81850-0R010 |
| 81980 | Turn signal flasher relay assembly | 81980-02050 |
| 82210N | Instrument panel fuse | 90982-08295 |
| 82210Q | RACCORD FUSIBLE COMPARTIMENT AV | 90982-08202 · 90982-08286 · 90982-08294 · 90982-08295 · 90982-08296 |
| 82241J | Shorting pin | 82241-42010 |
| 82600D | Dashboard fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 |
| 82600K | FUSIBLE COMPARTIMENT AV | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09025 |
| 82616 | fuse puller | 82616-58010 |

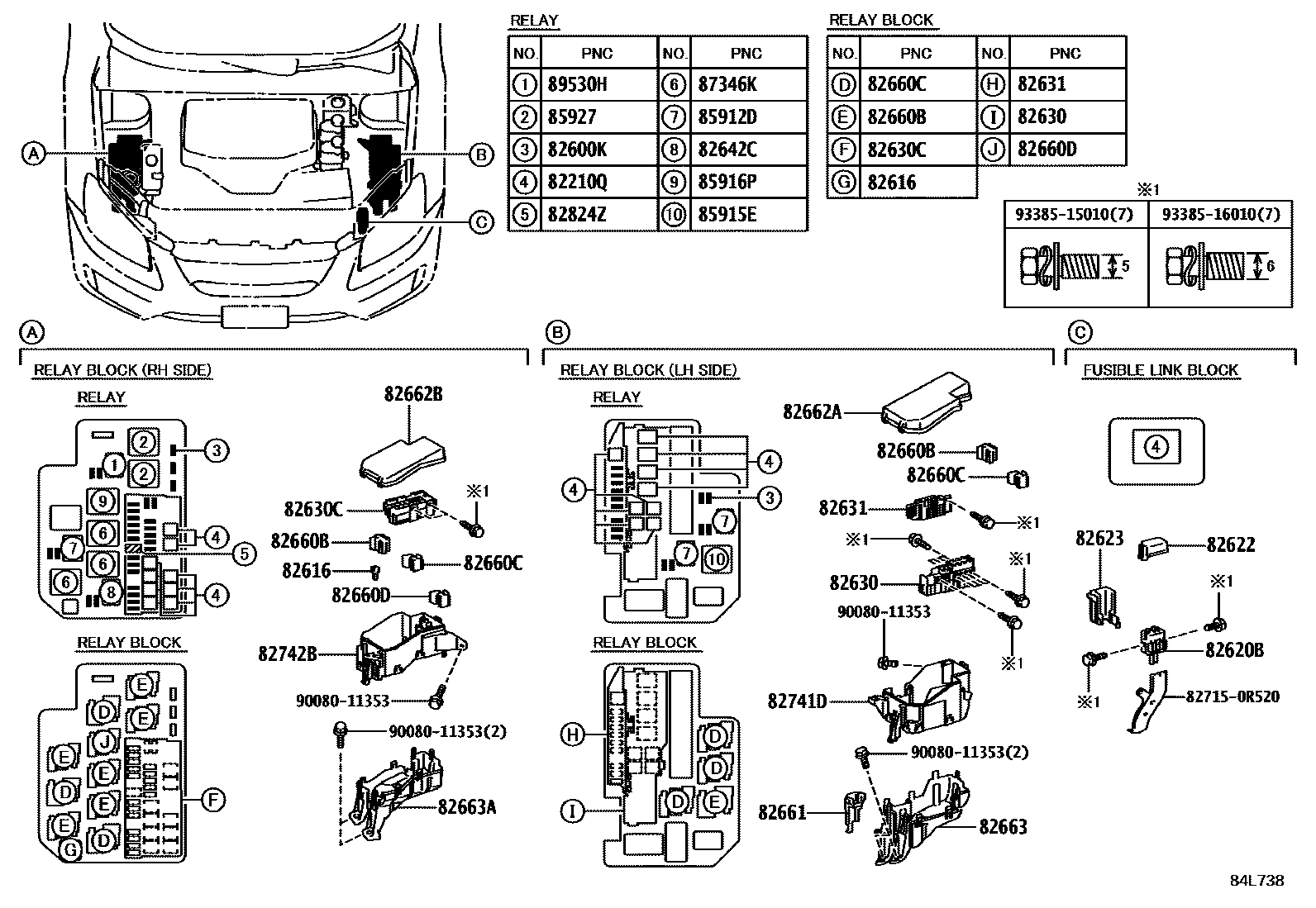

| 82620B | Fuse box assembly | 82620-06021 |
| 82622 | Fuse cover | 82622-0R010 |
| 82623 | Fuse lower cover | 82623-06011 |
| 82630 | Fuse holder assembly | 82631-0R010 |
| 82630C | Fuse holder assembly | 82631-0R020 |
| 82631 | fuse holder | 82631-42020 |
| 82642C | No. 2 daytime running light relay | 90080-87010 |
| 82650 | No. 1 circuit breaker assembly | 82650-0R010 |
| 82660B | Relay assembly | 82660-0H070 |
| 82660C | Relay assembly | 82660-52020 |
| 82660D | Relay assembly | 82660-26270 |
| 82660H | Relay assembly | 82660-52020 |
| 82661 | No. 1 relay box cover | 82661-42030 |
| 82662A | No. 1 relay box upper cover | 82662-0R070 |
| 82662B | No. 2 relay box upper cover | 82662-0R090 |
| 82663 | Relay box lower cover | 82663-0R020 |
| 82663A | No. 2 relay box lower cover | 82663-42090 |
| 82666 | Connector holder | 82666-0R070 |
| 82673A | Junction box bracket | 82673-42090 |
| 82673B | Junction box bracket | 82673-42100 |
| 82673C | Junction box bracket | 82673-42110 |
| 82673F | Junction box bracket | 82673-42120 |

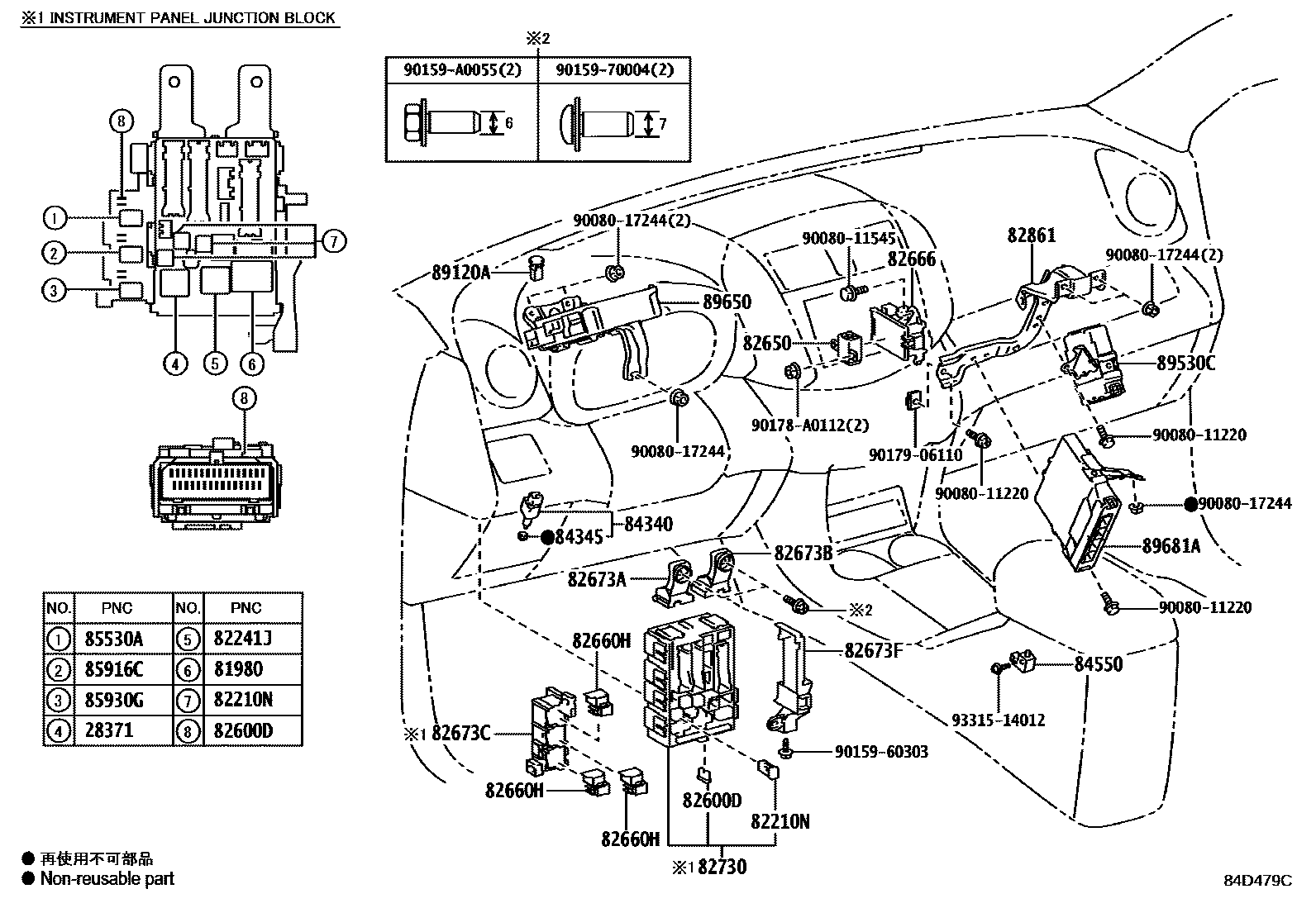

| 82730 | Instrument panel junction box assembly | 82730-0R130 |
| 82741D | BLOC, RELAIS COMPARTIMENT AV | 82741-42010 |
| 82742B | BLOC, RELAIS COMPARTIMENT AV, NO.2 | 82742-42030 |
| 82824Z | Shorting pin | 82824-20140 |
| 82861 | No. 1 ECU integrated bracket | 82861-42040 |

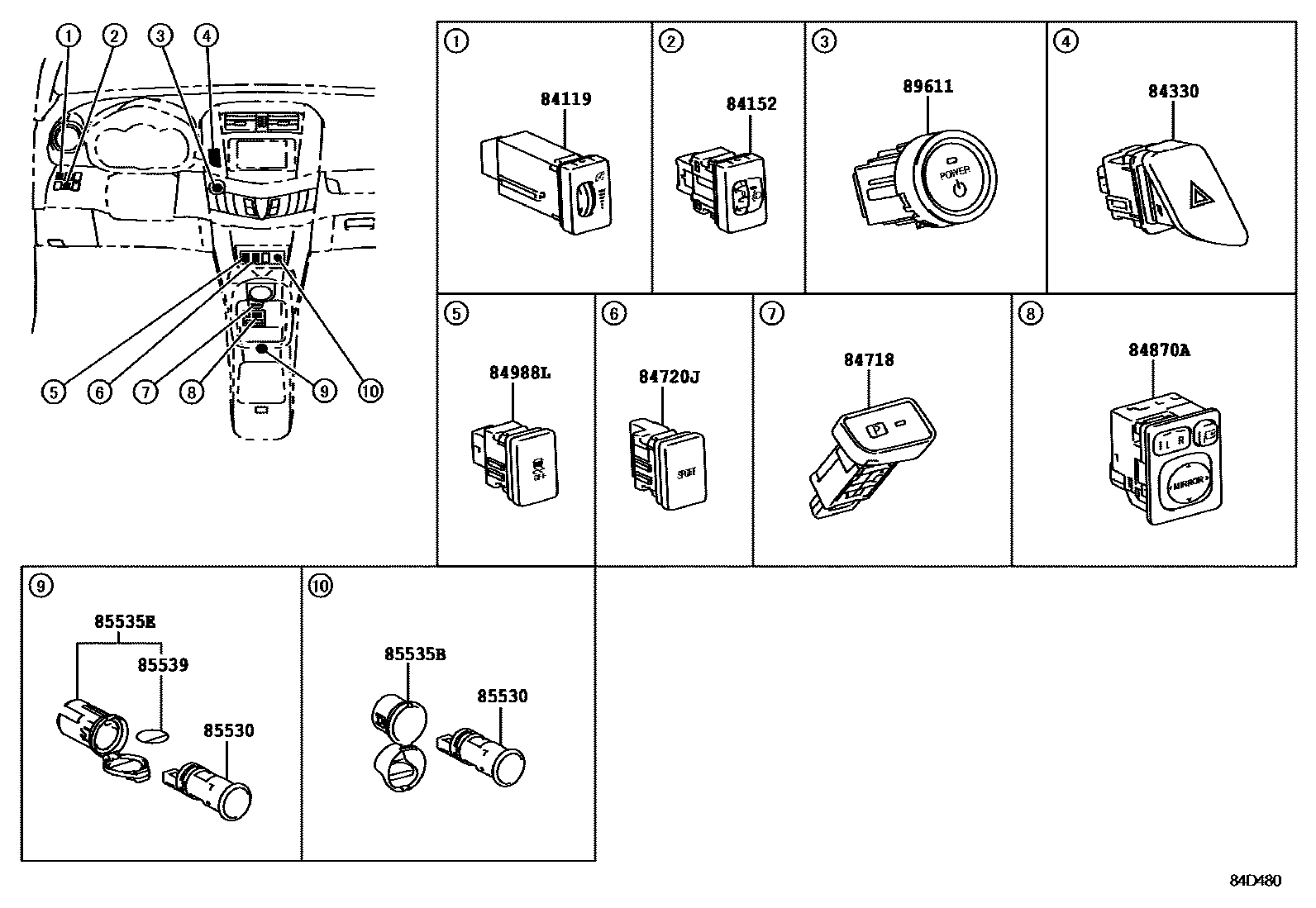

| 84119 | Light control rheostat | 84119-0C040 |
| 84140 | Headlight dimmer switch assembly | 84140-07132 |
| 84152 | Headlight beam height adjustment switch | 84152-48030 |
| 84233 | Door control light switch assembly (for front door) | 84231-08030 |
| 84234 | Door control light switch assembly (for rear door) | 84231-08030 |
| 84235 | Door control light switch assembly (for back door) | 84231-08030 |

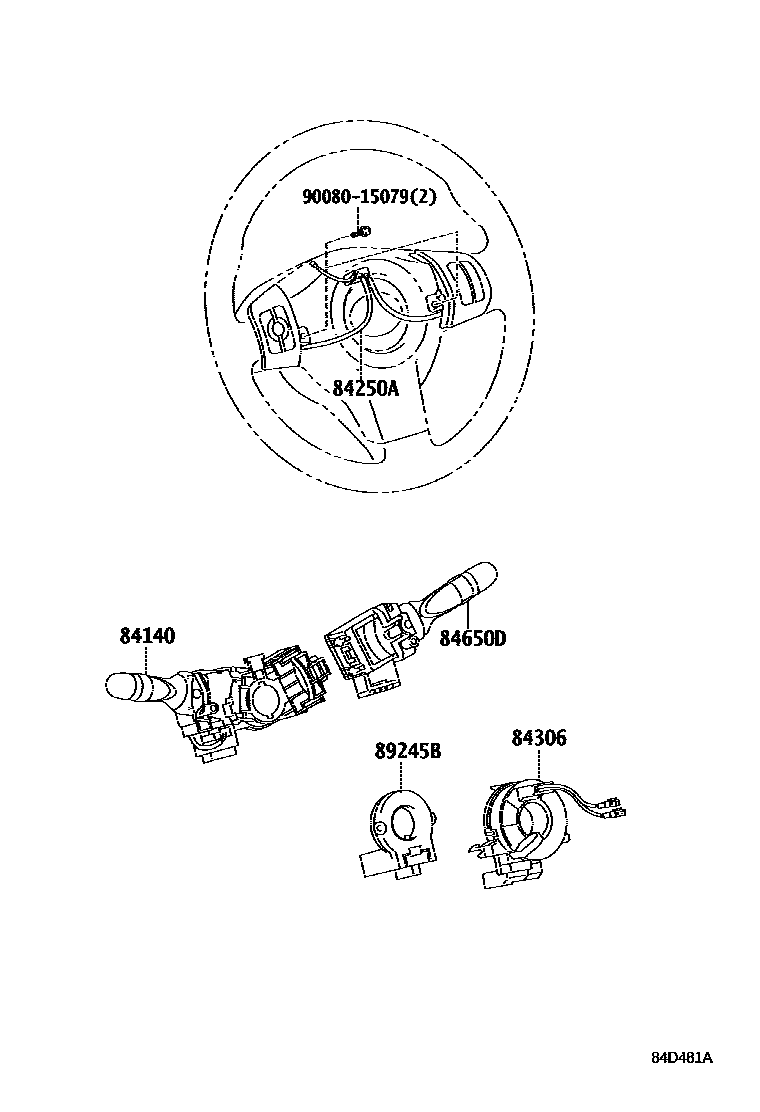

| 84250A | Steering wheel decorative cover switch assembly | 84250-0R070 |
| 84306 | Spiral cable sub-assembly | 84306-0E010 |
| 84330 | Hazard warning signal switch assembly | 84332-0R030 |
| 84340 | brake light switch assembly | 84340-49065 |
| 84345 | Brake light switch base adjuster | 84345-08010 |
| 84550 | Parking brake switch assembly | 84550-16060 |
| 84650D | ENS. COMM, ESS-GL PARE-BRISE AV RELAIS, COMM ESS-GL | 84652-02730 |
| 84718 | Transmission shift master switch | 84718-0R010 |
| 84720J | Mode selection switch assembly | 84720-0R010 |

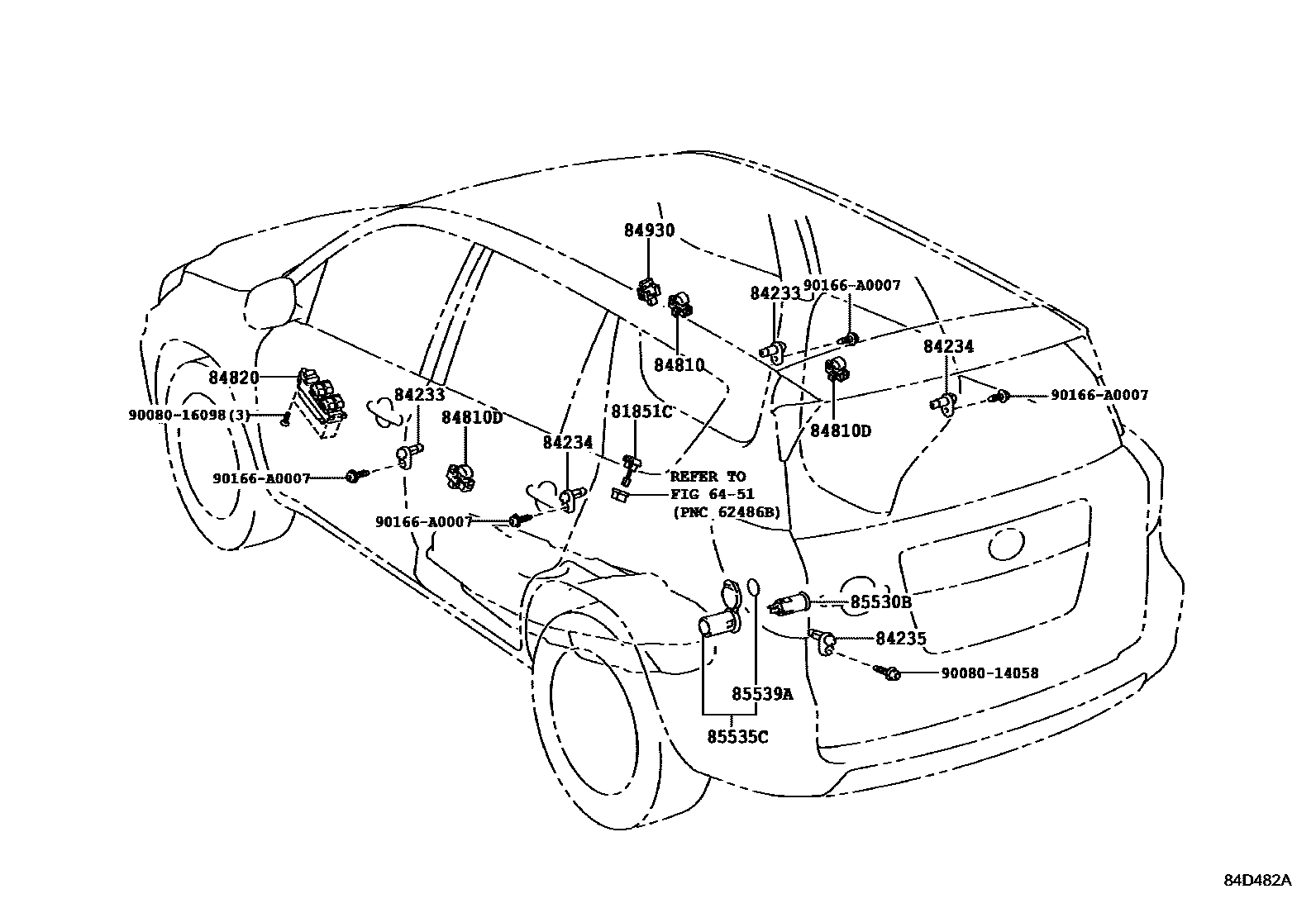

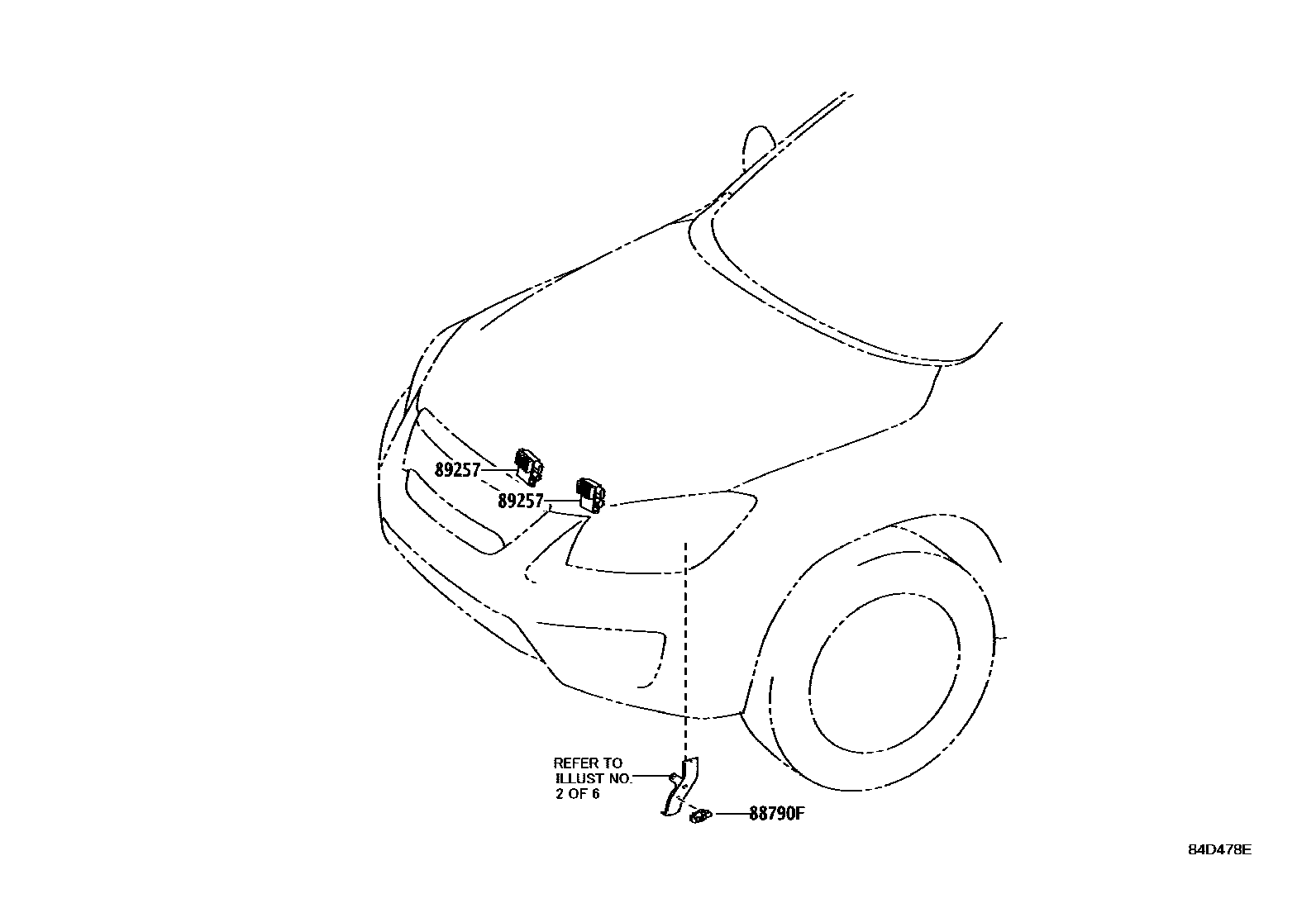

| 84810 | Electric window lift switch assembly | 84810-06030 |
| 84810D | Rear electric window lift switch assembly | 84810-06030 |
| 84820 | Electric window lift main switch assembly | 84820-0R020 |
| 84870A | Exterior rearview mirror switch assembly | 84870-0C040 |
| 84930 | Door control switch assembly | 84930-0C010 |
| 84988L | VSC off switch | 84988-60020 |
| 85530 | No. 1 power socket assembly | 85530-06030 |
| 85530A | power outlet relay | 90080-87026 |
| 85530B | No. 1 rear power socket assembly | 85530-06030 |
| 85535B | No. 1 power outlet cover | 85535-0R010 |
| 85539 | Power socket attention labels | 85539-60020 |
| 85539A | Note label on rear power outlet | 85539-60020 |
| 85912D | relay | 90080-87026 · 90987-02027 |
| 85915E | relay | 90080-87024 · 90987-02025 |
| 85916C | Reversing light relay | 90080-87026 |
| 85916P | headlight relay | 90080-87025 · 90987-04010 |
| 85927 | cooling fan relay | 90080-87024 · 90987-02025 |
| 85930G | ACC relay | 90080-87026 |
| 87346K | PTC heater relay | 90080-87024 · 90987-02025 |
| 88790F | Thermistor assembly | 88790-06010 · 88790-22131 |
| 89120A | Automatic light control sensor | 89121-12010 |
| 89245B | steering sensor | 89245-0R020 |
| 89257 | Cooling fan ECU | 89257-26020 |
| 89530C | Transmission control ECU assembly | 89530-42030 |
| 89530H | Transaxle parking lock control relay | 90080-87026 · 90987-02027 |
| 89611 | push button start switch | 89611-75032 · 89611-75033 |
| 89650 | Power steering ECU assembly | 89650-42140 |
| 89681A | Power management control ECU | 89690-42011 · 89690-42012 · 89690-42013 · 89690-42014 · 89690-42015 |
