Toyota RAV4 线束和卡夹 — Figure 8202

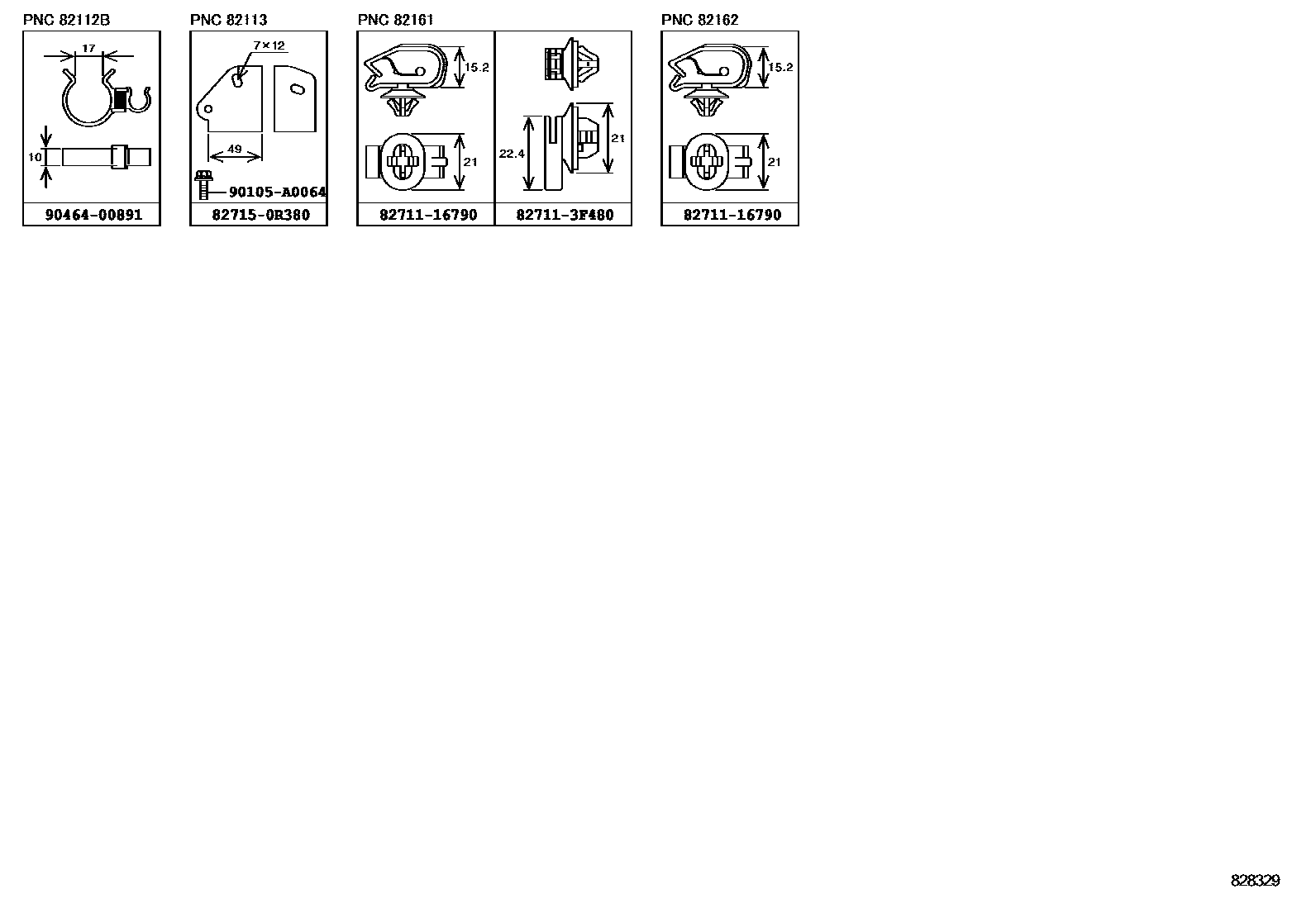

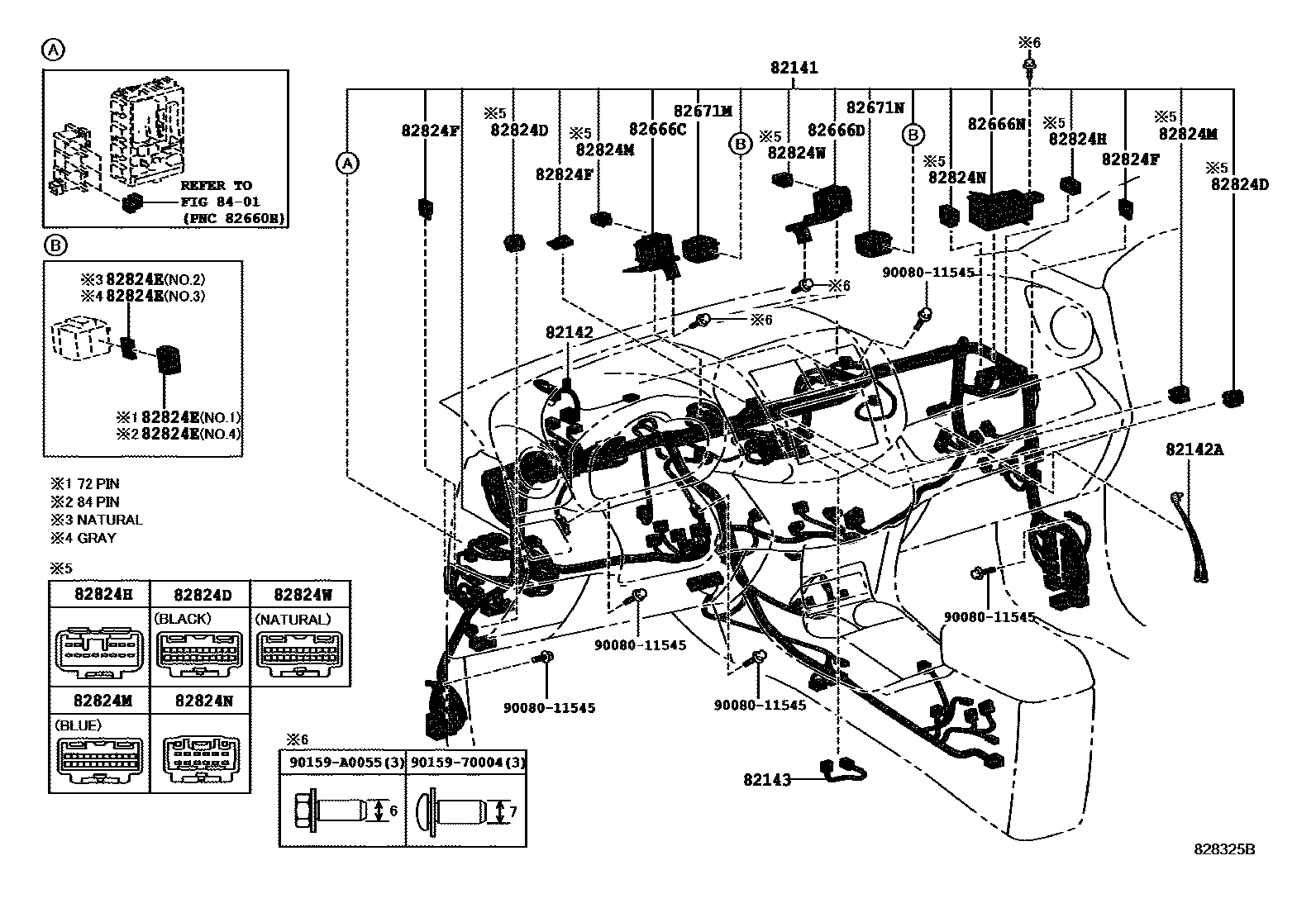

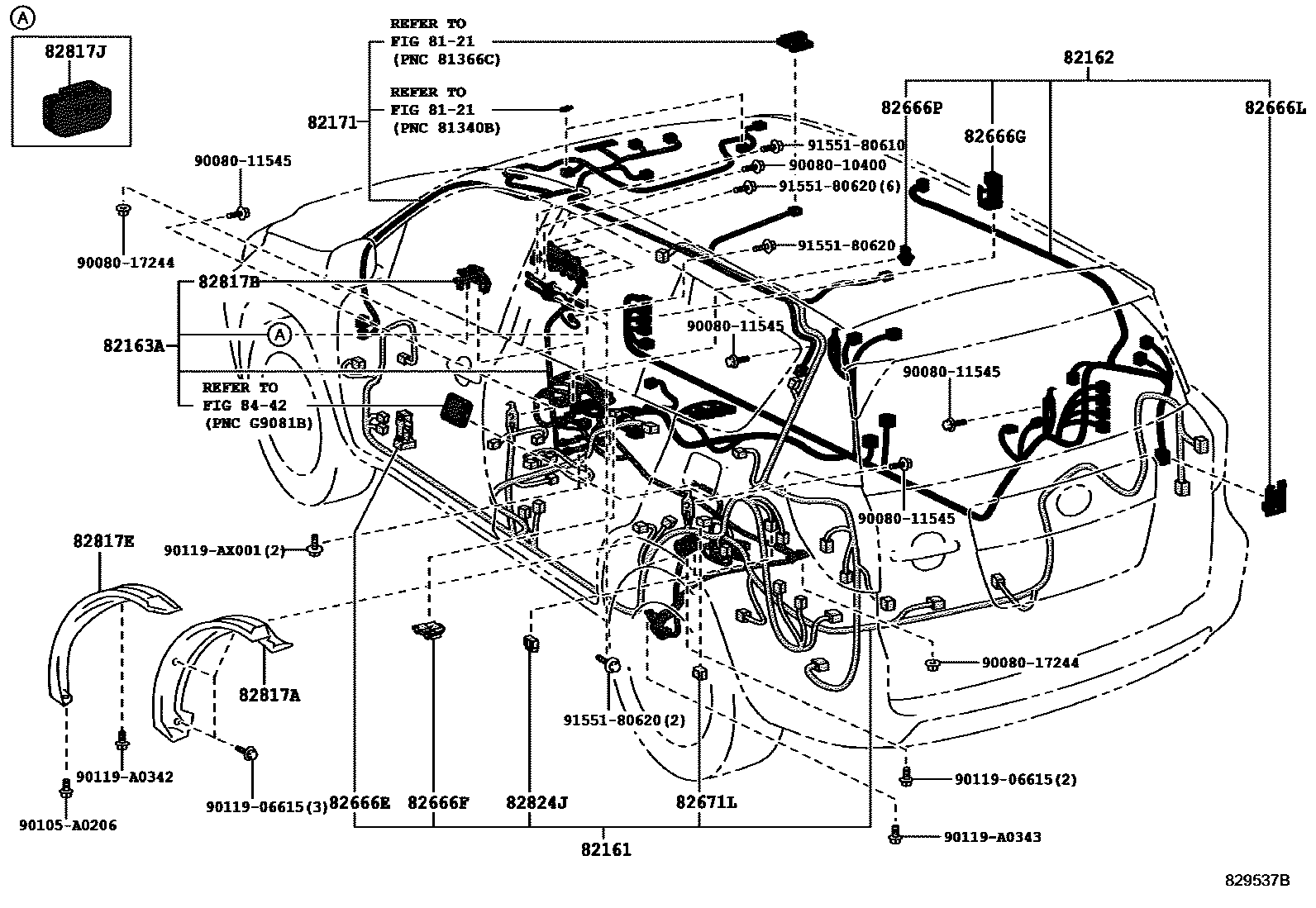

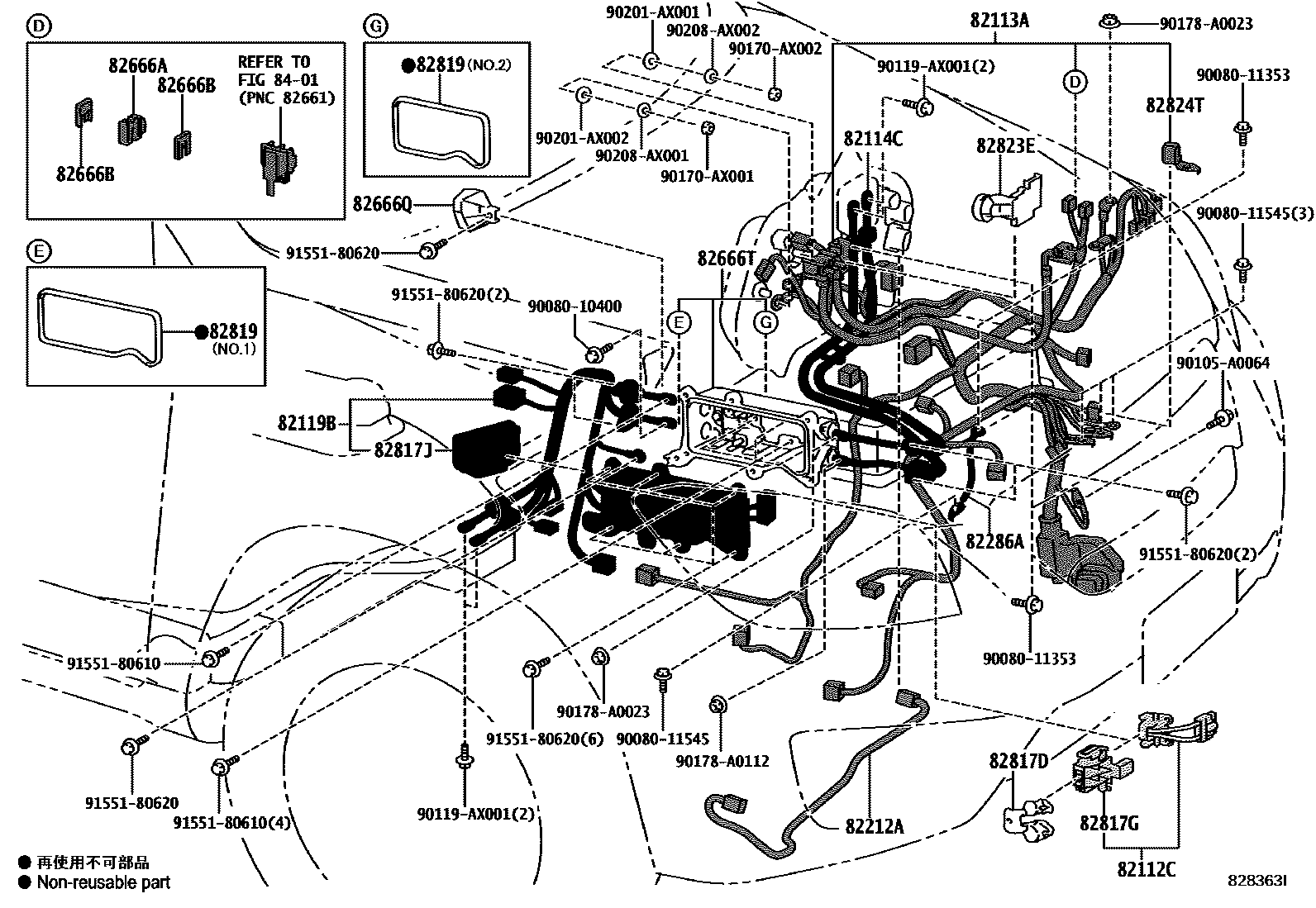

Toyota RAV4 EPC diagram 8202, 线束和卡夹, with 11 images and 65 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

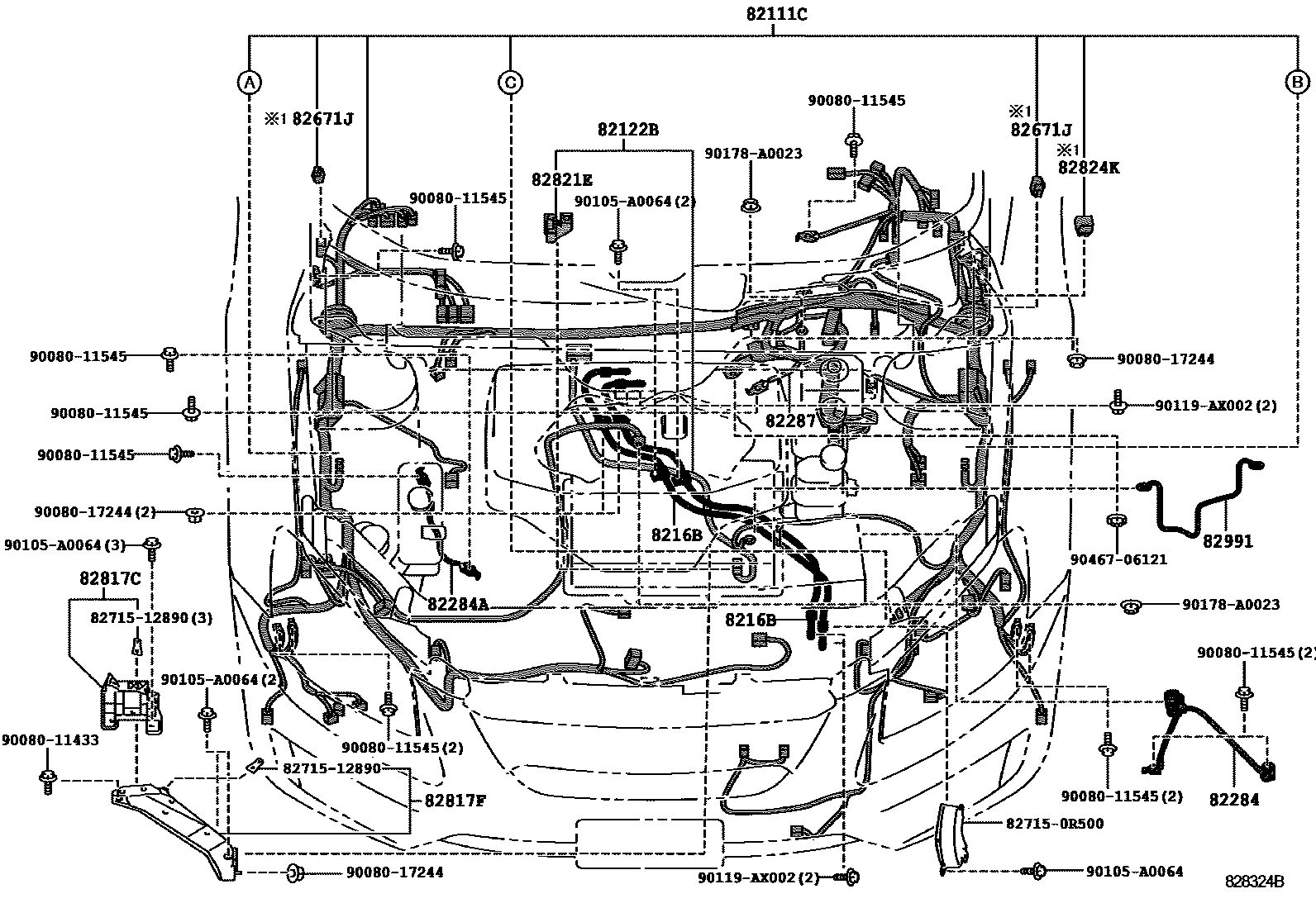

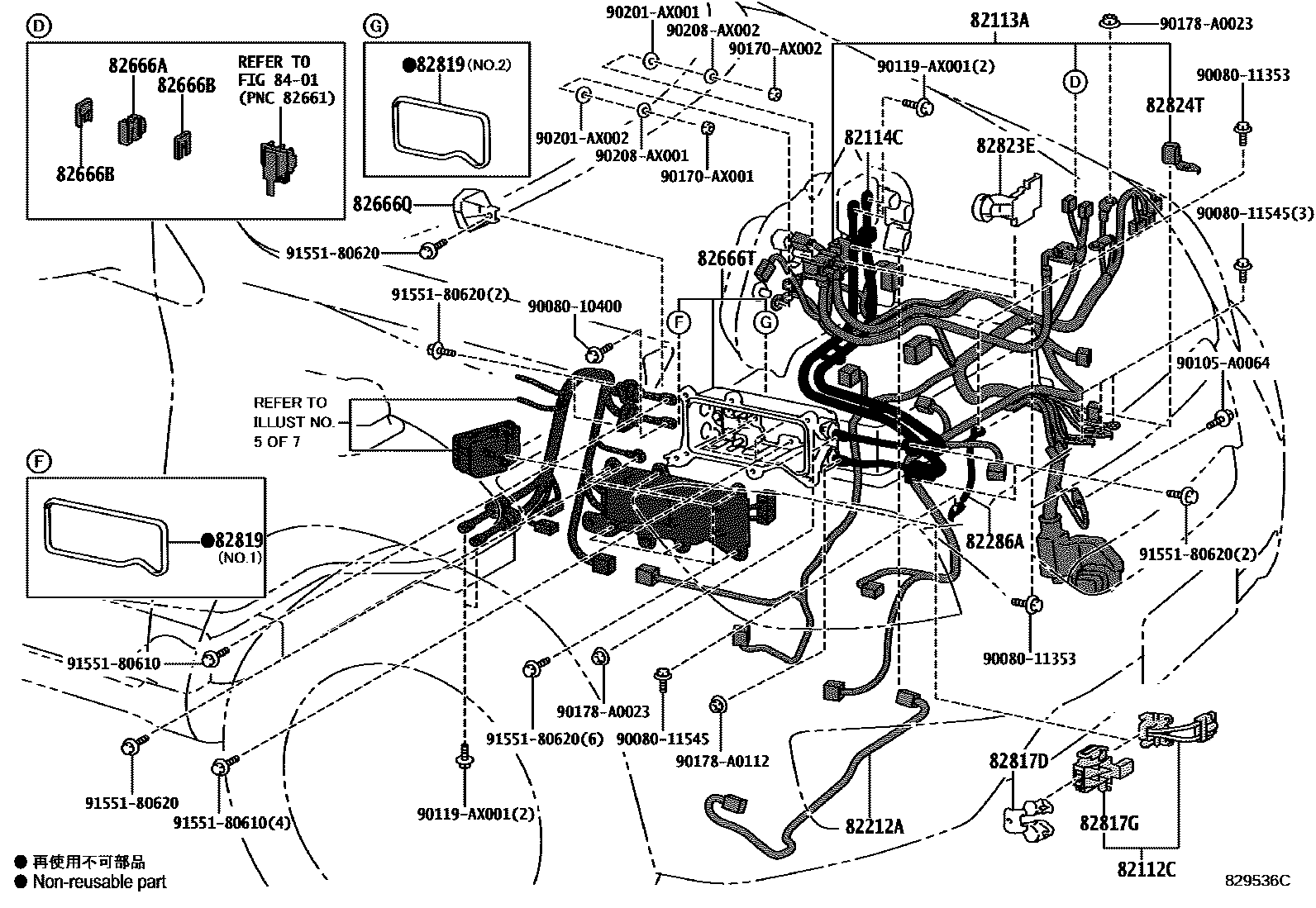

| 82111C | FIL, COMPARTIMENT AV, PRINCIPAL | 82111-0R180 |
| 82112C | FIL, COMPARTIMENT AV, NO.2 | 82112-0R010 |
| 82113A | FIL, COMPARTIMENT AV, NO.3 | 82113-0R010 · 82113-0R011 |
| 82114C | FIL, COMPARTIMENT AV, NO.4 | 82114-0R010 |
| 82119B | FIL, COMPARTIMENT AV, NO.5 | 82119-0R011 |
| 82122B | FIL, MOTEUR, NO.2 | 82122-0R050 |
| 82141 | Dashboard wiring harness | 82141-0R790 |
| 82142 | Instrument panel wiring harness No. 2 | 82142-0R010 |
| 82142A | Instrument panel wiring harness No. 2 | 82140-0R010 |
| 82143 | Instrument panel wiring harness No. 3 | 82140-0R060 |

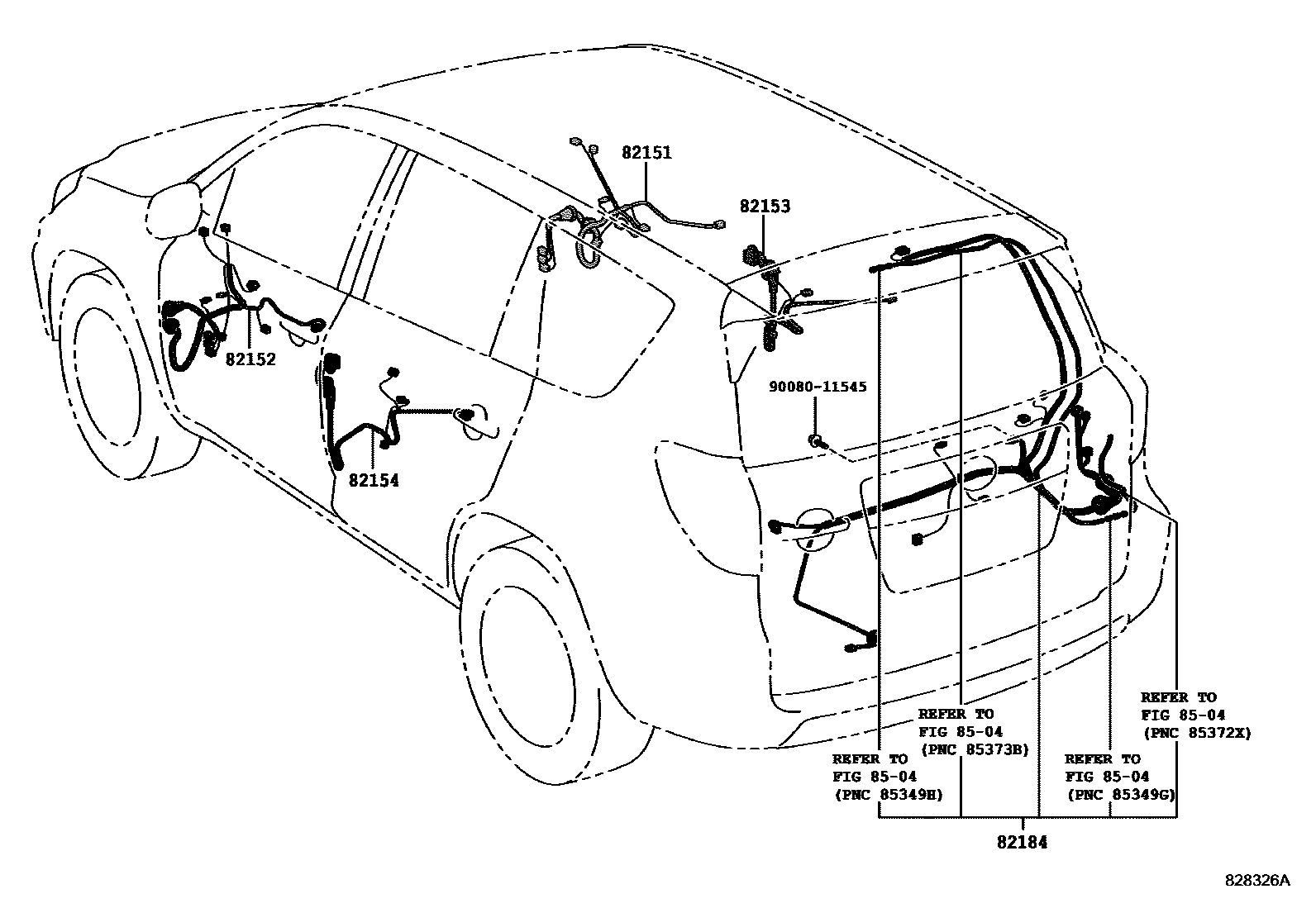

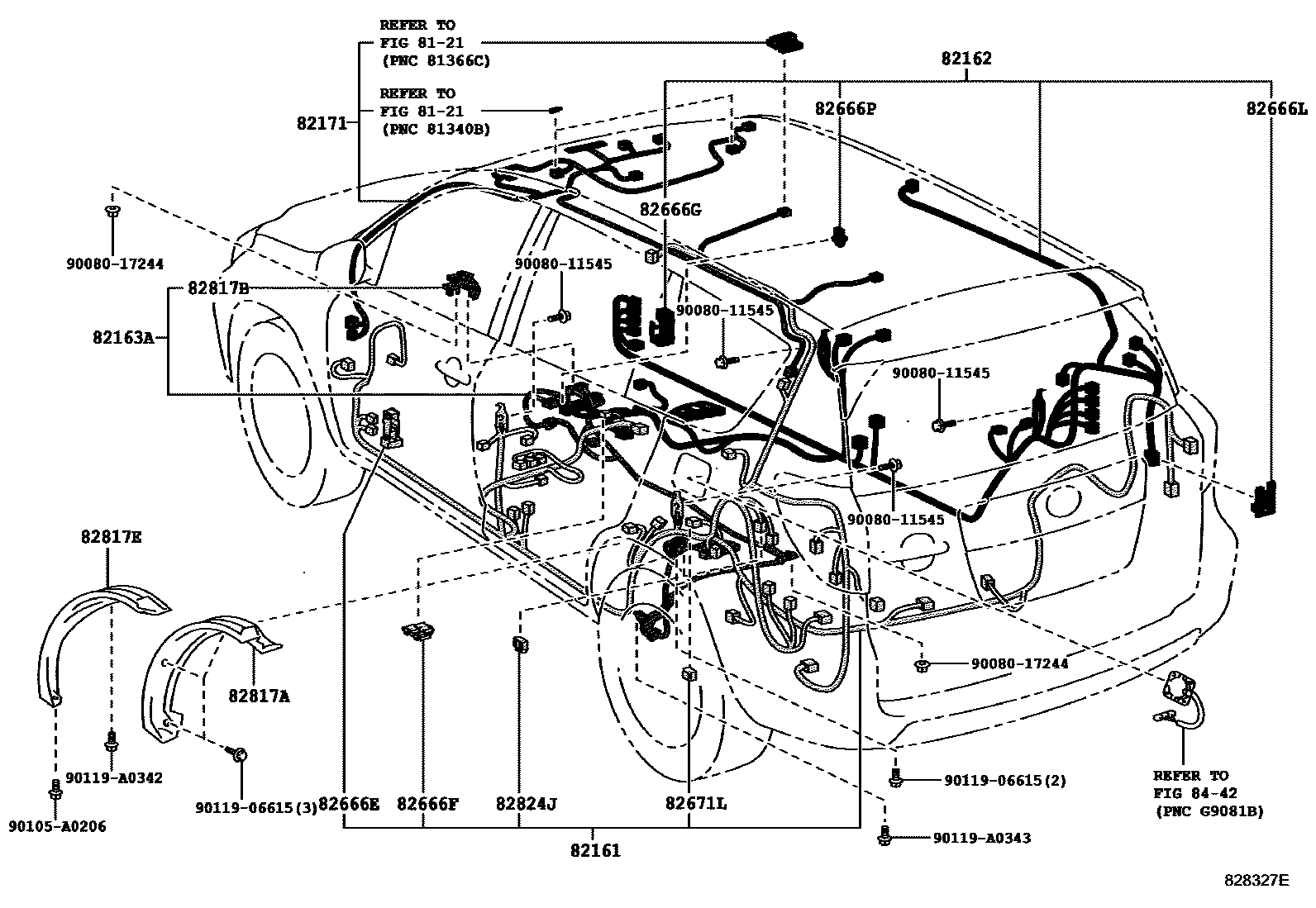

| 82151 | Right front door wiring harness | 82151-42A91 |
| 82152 | Left front door wiring harness | 82152-42A01 |
| 82153 | Rear door wiring harness No. 1 | 82153-0R010 |
| 82154 | Rear door wiring harness No. 2 | 82153-0R010 |
| 82161 | floor wiring harness | 82161-0R280 |
| 82162 | Floor wiring harness No. 2 | 82162-0R330 · 82162-0R331 |
| 82163A | No. 4 floor wiring harness | 8216C-0R012 · 8216C-0R014 · 8216C-0R015 |
| 8216B | No. 8 floor wiring harness | 8216B-0R010 · 8216B-0R020 |
| 82171 | Roof No. 1 wiring harness | 82171-0R170 |
| 82184 | Rear door No. 1 wiring harness | 82184-42251 |

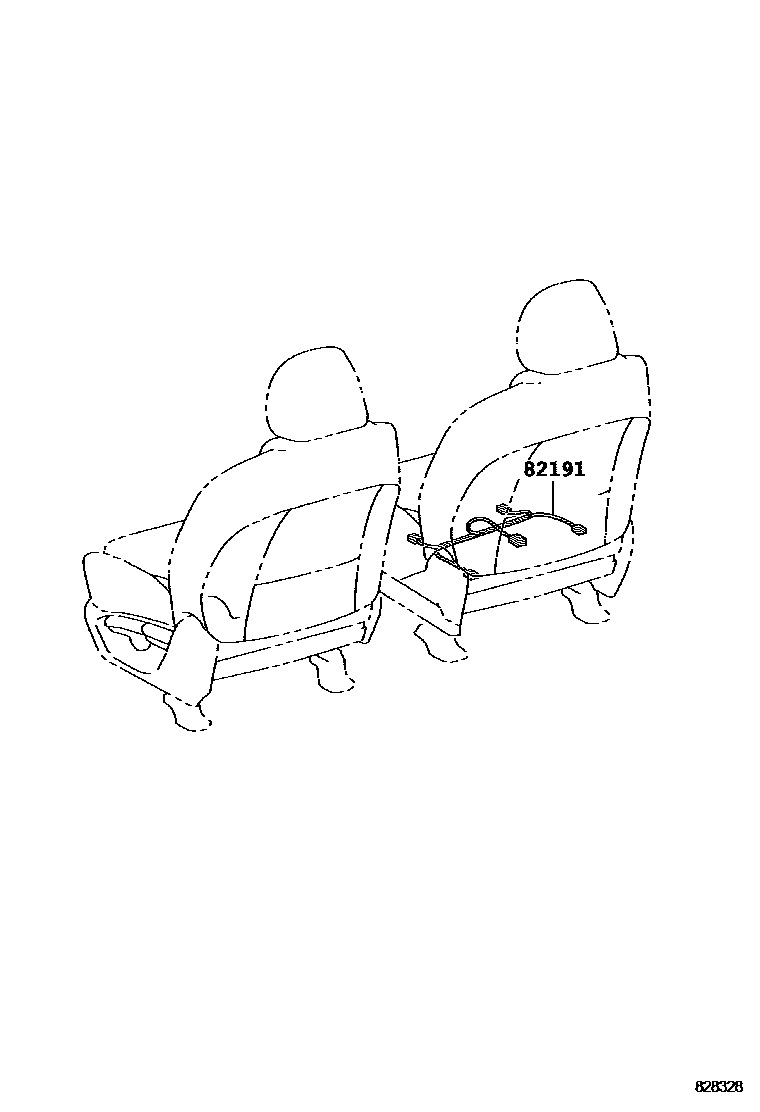

| 82191 | Front right seat wiring harness | 82191-33140 |
| 82212A | Air conditioning wiring harness | 82212-0R020 |
| 82284 | Ground wire | 82284-0R020 |
| 82284A | Line 2 | 82284-0R010 |
| 82286A | Line 2 | 82286-0R010 |
| 82287 | Line 3 | 82287-0R010 |
| 82666A | Connector holder No. 2 | 82666-08120 |
| 82666B | No. 3 connector holder | 82666-21040 |
| 82666C | No. 4 connector holder | 82666-42231 |
| 82666D | No. 5 connector holder | 82666-42241 |
| 82666E | No. 6 connector holder | 82666-42200 |
| 82666F | No. 7 connector holder | 82666-42260 |
| 82666G | No. 8 connector holder | 82666-42210 |
| 82666L | No. 9 connector holder | 82666-42280 |
| 82666N | No. 10 connector holder | 82666-42171 |
| 82666P | No. 11 Connector Block | 82666-22130 |
| 82666Q | No. 12 connector holder | 82666-0R100 |
| 82666T | No. 14 connector socket | 82666-0R060 |

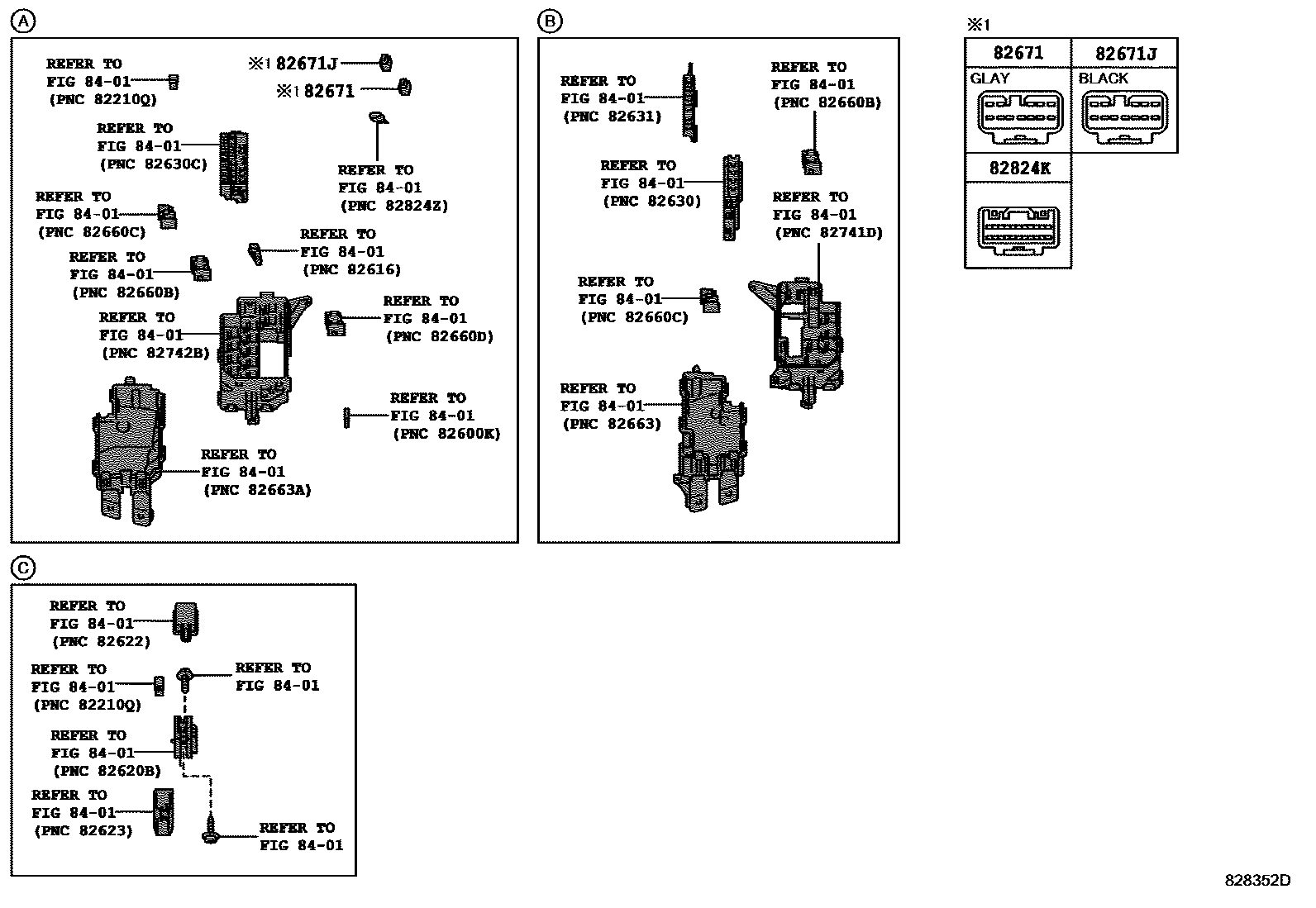

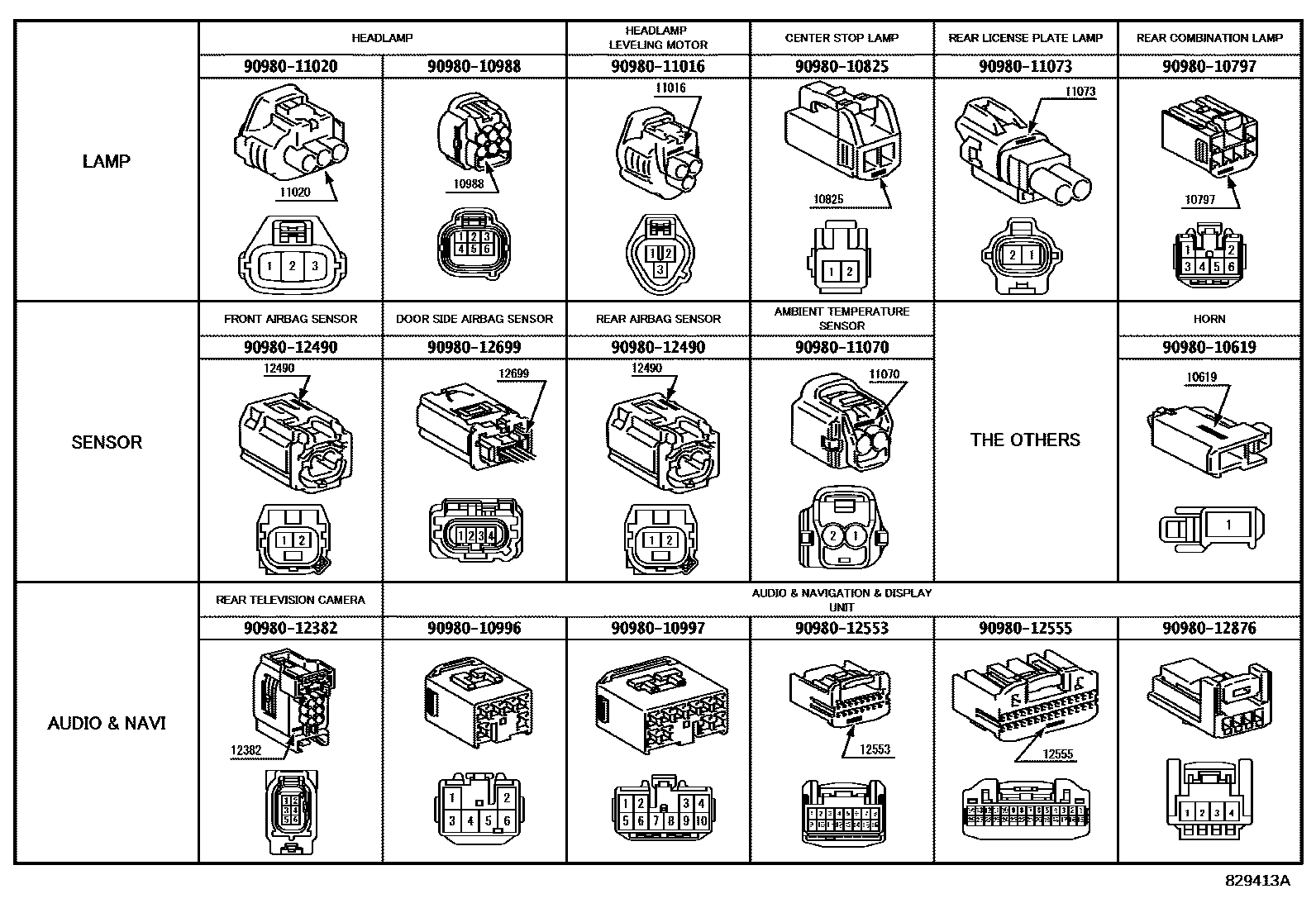

| 82671 | junction box | 82671-30360 |
| 82671J | No. 2 junction box | 82671-30370 |
| 82671L | No. 4 junction box | 82671-30360 |
| 82671M | No. 5 junction box | 82671-42150 |
| 82671N | No. 6 junction box | 82671-42160 |
| 82817A | No. 2 wire harness protection device | 77277-0R040 |
| 82817B | No. 3 wire harness protection device | 82817-0R121 · 82817-0R122 |
| 82817C | No. 4 wire harness protection device | 82817-0R100 |
| 82817D | No. 5 wire harness protection device | 82817-0R160 |
| 82817E | No. 6 wire harness protection device | 82817-0R130 · 82817-0R131 |
| 82817F | No. 7 wire harness protection device | 82817-0R140 |
| 82817G | No. 8 wire harness protection device | 82817-0R150 |
| 82817J | No. 9 wire harness protection device | 82817-0R200 |
| 82819 | Wire harness seal | 82819-0R070 · 82819-0R080 |
| 82821E | Connector cover | 82821-0R060 |
| 82823E | Terminal cover No. 5 | 82823-0R020 |
| 82824D | Harness connector | 82824-50350 |
| 82824E | Harness connector | 82824-42180 · 82824-42190 · 82824-42200 · 82824-42210 |
| 82824F | Harness connector | 82824-30130 |
| 82824H | Harness connector | 82824-20110 |
| 82824J | Harness connector | 82824-22080 |
| 82824K | Harness connector | 82824-52080 |
| 82824M | Harness connector | 82824-52270 |
| 82824N | Harness connector | 82824-73040 |
| 82824T | Harness connector | 82824-48020 |
| 82824W | Harness connector | 82824-50360 |
| 82991 | Fuse repair line | 82991-0R020 |
