Toyota RAV4 后牌照灯 — Figure 8113

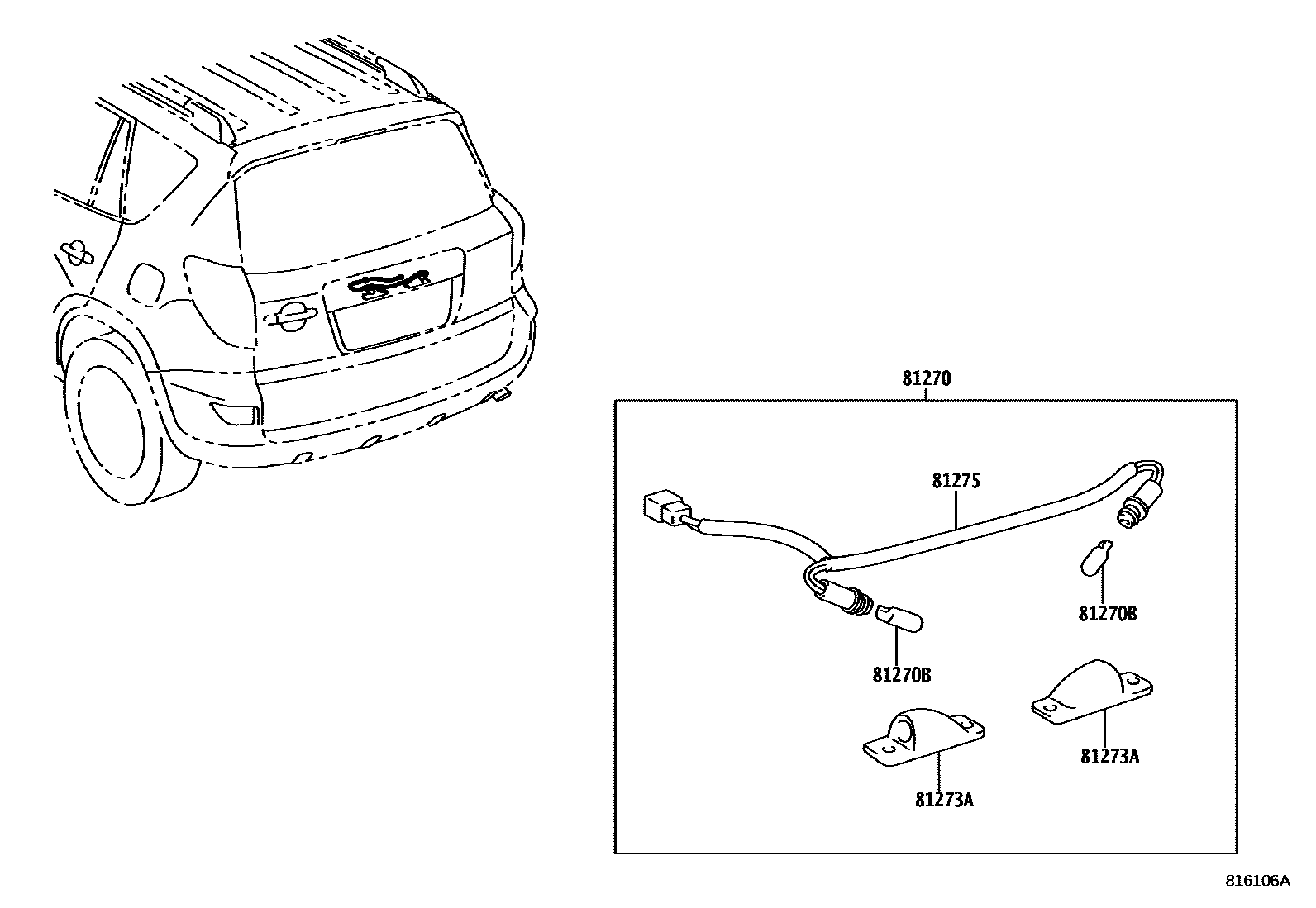

Toyota RAV4 EPC diagram 8113, 后牌照灯, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81270 | License plate light assembly | 81270-42060 |
| 81270B | Bulb (for license plate light) | 99132-12050 |
| 81273A | license plate light body | 81273-48010 |
| 81275 | License plate lamp holder and wiring harness | 81275-42060 |
