Toyota RAV4 扰流板和侧挡泥板 — Figure 7652

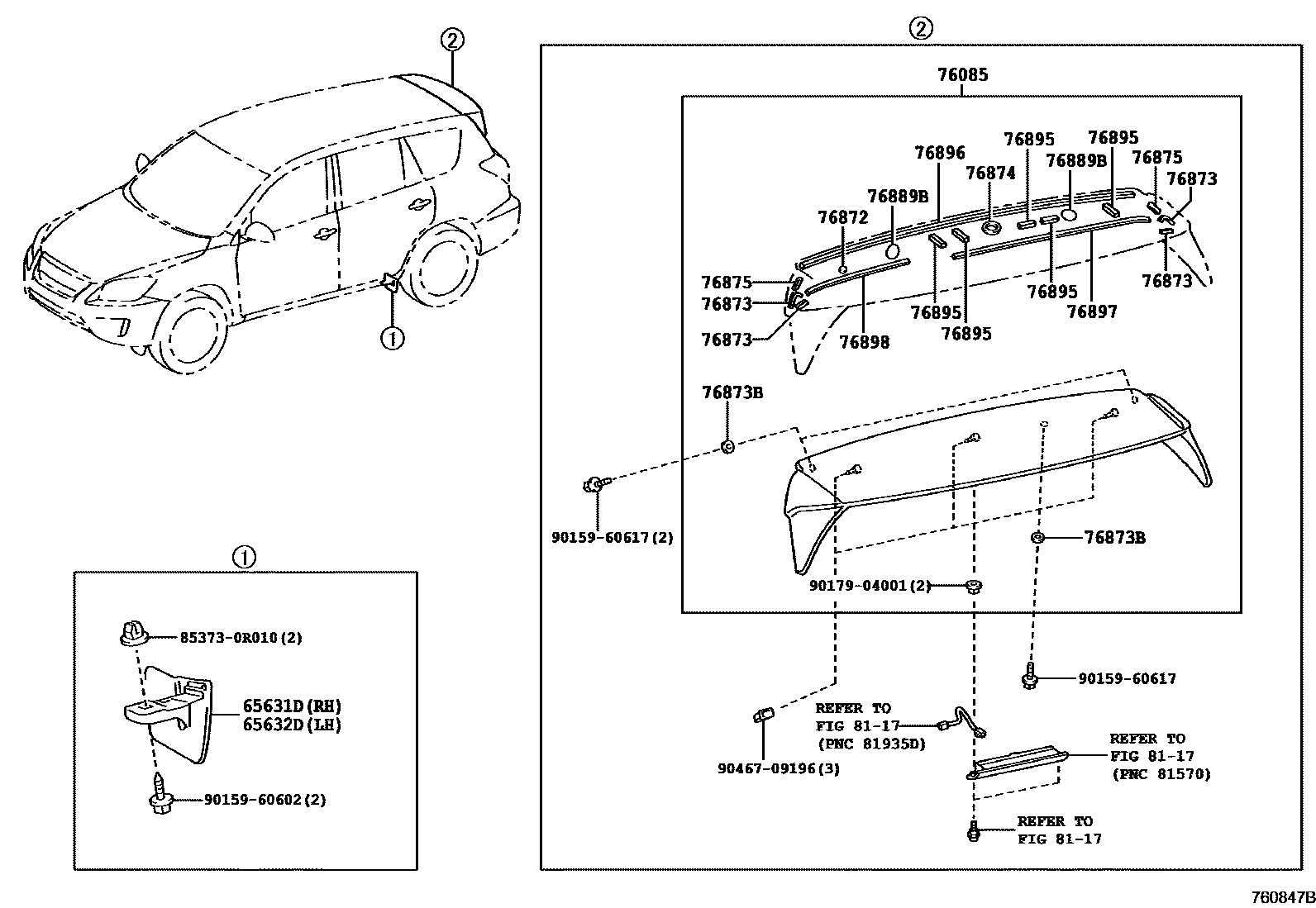

Toyota RAV4 EPC diagram 7652, 扰流板和侧挡泥板, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 65631D | Right rear wheel house front panel | 65631-0R040 |
| 65632D | Left rear wheel house front panel | 65632-0R040 |
| 76872 | No. 1 rear spoiler protective strip | 76872-0R010 |
| 76873 | No. 2 rear spoiler protective strip | 76875-0R020 |
| 76873B | No. 2 rear spoiler protective strip | 76873-0R010 |
| 76874 | No. 3 rear spoiler protective strip | 76874-0R010 |
| 76875 | No. 4 rear spoiler protective strip | 76876-0R010 |
| 76889B | No. 1 rear spoiler seal | 76889-0R010 |
| 76895 | No. 5 rear spoiler protective strip | 76895-0R010 |
| 76896 | No. 6 rear spoiler protective strip | 76896-0R010 |
| 76897 | Right rear spoiler protection strip | 76897-0R010 |
| 76898 | Left rear spoiler protection strip | 76897-0R010 · 76898-0R010 |
