Toyota RAV4 防护条 — Figure 7552

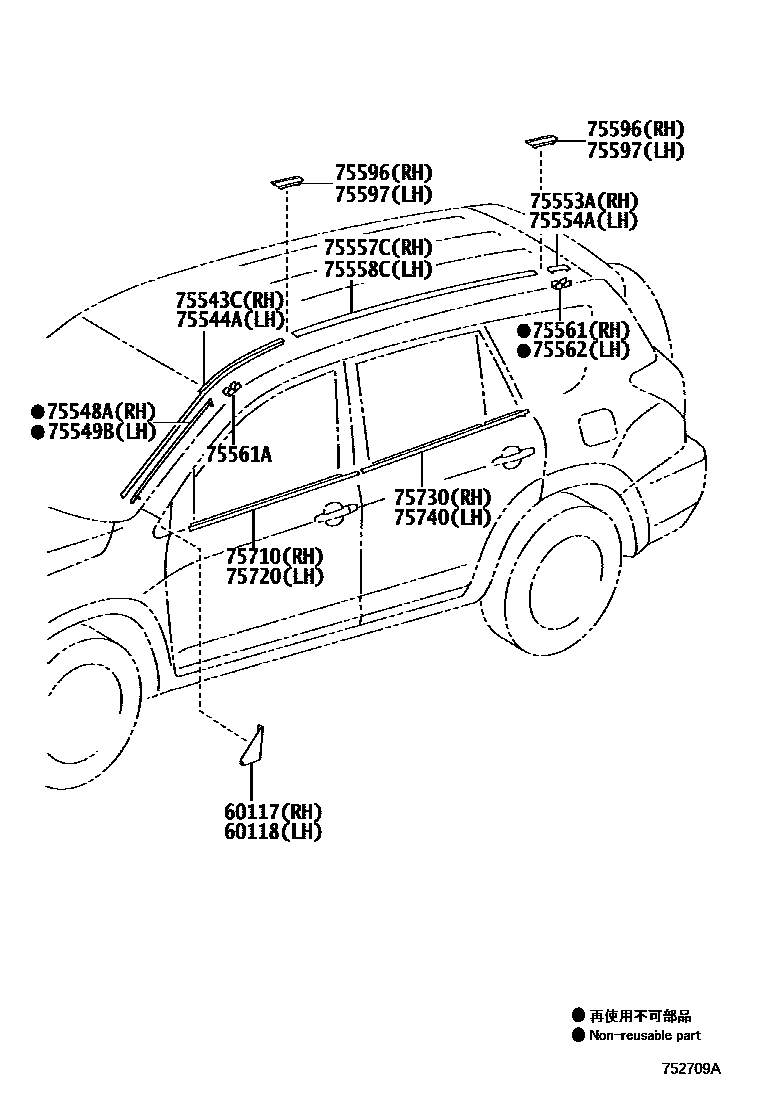

Toyota RAV4 EPC diagram 7552, 防护条, with 1 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 60117 | Right front pillar upper cover sub-assembly | 60117-42010 |
| 60118 | Left front pillar upper cover sub-assembly | 60118-42010 |
| 75543C | No. 2 windshield right outer protective strip | 75543-42010 |
| 75544A | No. 2 windshield left outer protective strip | 75544-42010 |
| 75548A | No. 1 windshield outer protective strip fasteners | 75548-42021 · 75548-42040 |
| 75549B | No. 2 windshield outer protective strip fasteners | 75549-42021 · 75549-42040 |
| 75553A | Decorative strip on the right side of the roof, rear gutter side | 75553-0R010 |
| 75554A | Decorative strip on the left side of the roof, rear gutter side | 75554-0R010 |
| 75557C | Decorative strip on the middle section of the drainage channel on the right side of the No. 2 roof | 75557-0R010 |
| 75558C | Decorative strip on the side of the drainage channel in the middle section of the left roof of No. 2 car | 75557-0R010 |
| 75561 | No. 1 roof drain channel side decorative strip clip | 75561-02020 |
| 75561A | Roof drain channel side decorative strip clip | 75561-02020 |
| 75562 | No. 2 roof drain channel side decorative strip clip | 75561-02020 |
| 75596 | Drainage channel side decorative strip joint cover on the right side of the roof | 75596-02020 · 75596-35030 |
| 75597 | Drainage channel side decorative strip joint cover on the left side of the roof | 75596-02020 · 75596-35030 |
| 75710 | Right front door waistline protection strip assembly | 75710-0R011 |
| 75720 | Left front door waistline protection strip assembly | 75720-0R011 |
| 75730 | Right rear door waistline protection strip assembly | 75730-0R011 |
| 75740 | Left rear door waistline protection strip assembly | 75740-0R011 |
