Toyota RAV4 徽标和铭牌 — Figure 7551

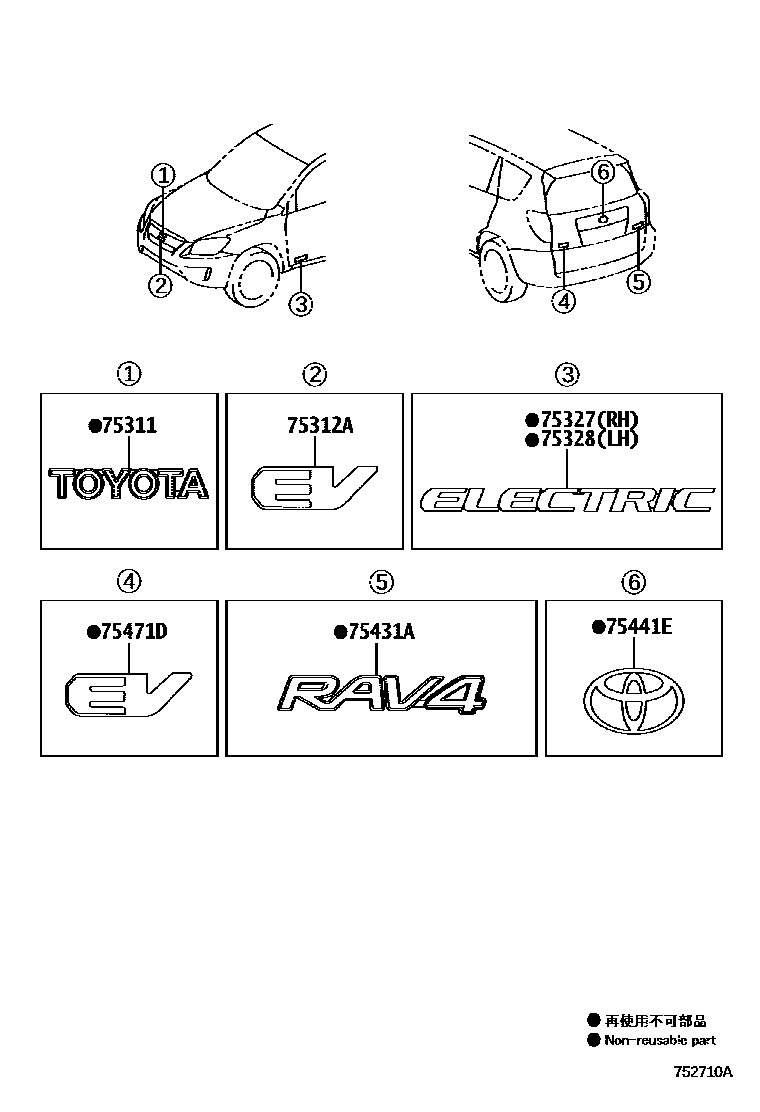

Toyota RAV4 EPC diagram 7551, 徽标和铭牌, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75311 | Radiator grille (or front panel) plate | 75311-0R040 |
| 75312A | Front No. 2 nameplate | 75312-0R040 |
| 75327 | Right front door mark | 75315-0R010 |
| 75328 | Left front door mark | 75315-0R010 |
| 75431A | No. 1 sign on back door | 75431-42110 |
| 75441E | Back door No. 1 nameplate | 75403-12040 |
| 75471D | rear nameplate | 75471-0R010 |
