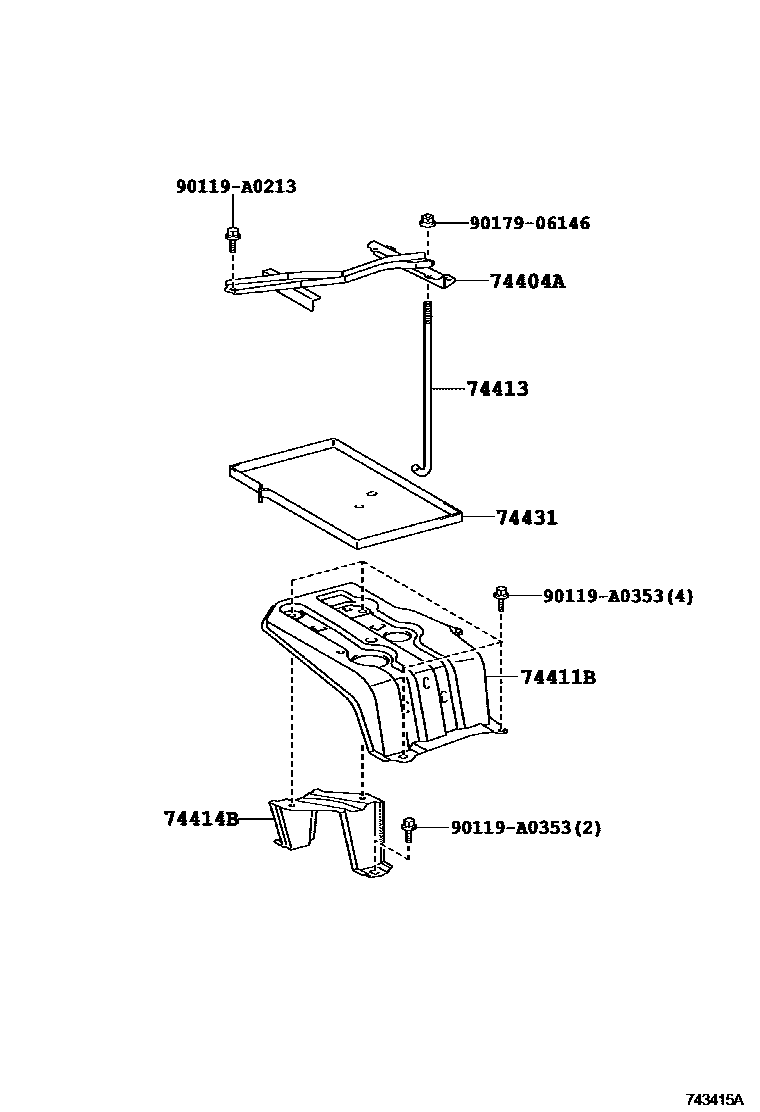

Toyota RAV4 battery holder — Figure 7454
Toyota RAV4 EPC diagram 7454, battery holder, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 74404A | Battery clip sub-assembly | 74404-0R011 |
| 74411B | Battery front side bracket | 74411-0R010 · 74411-0R030 |
| 74413 | Battery clamp bolt | 74451-10060 |
| 74414B | Battery bracket reinforcement | 74414-0R040 |
| 74431 | battery tray | 74431-0R010 |
