Toyota RAV4 座椅和座椅滑轨 — Figure 7151

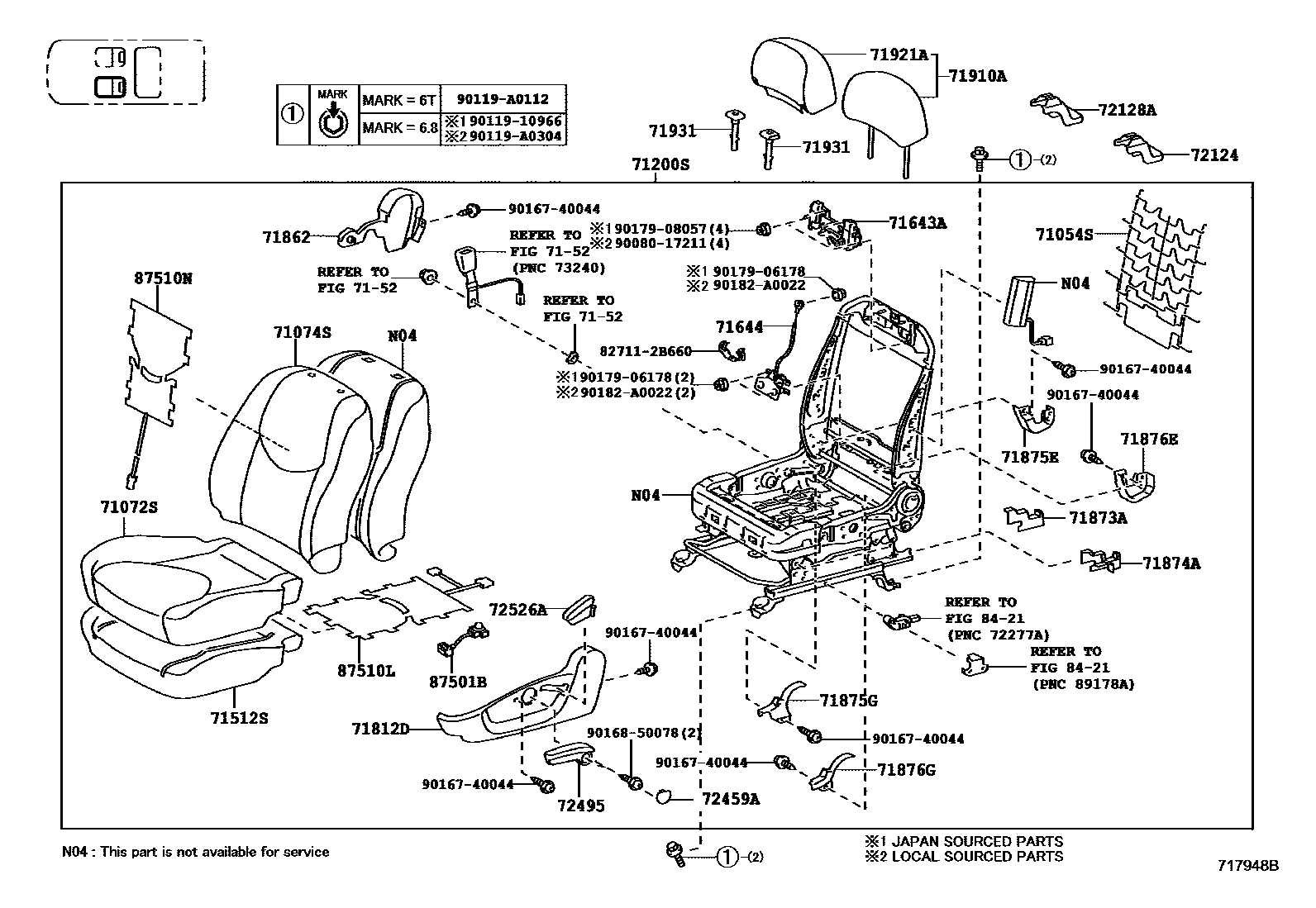

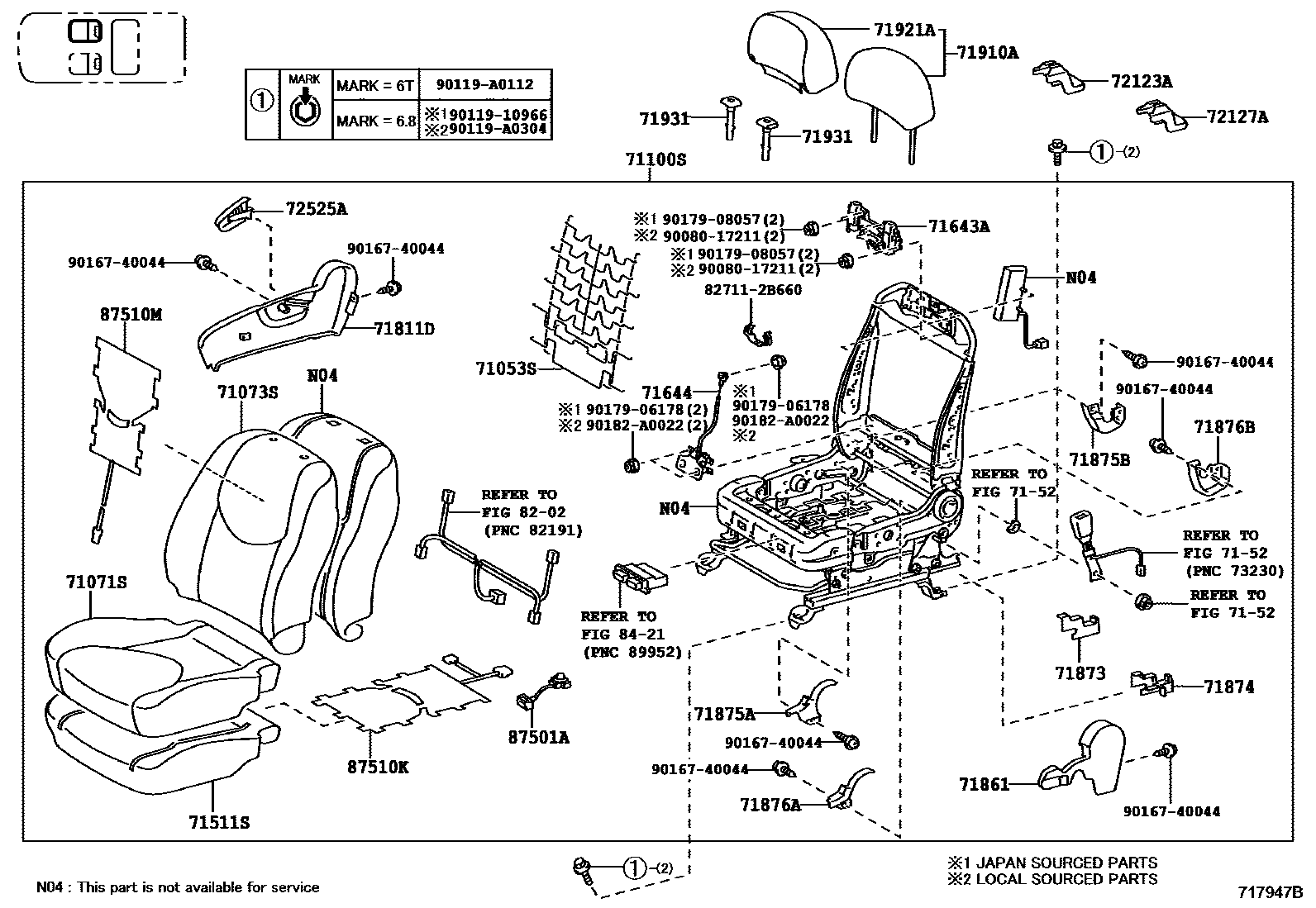

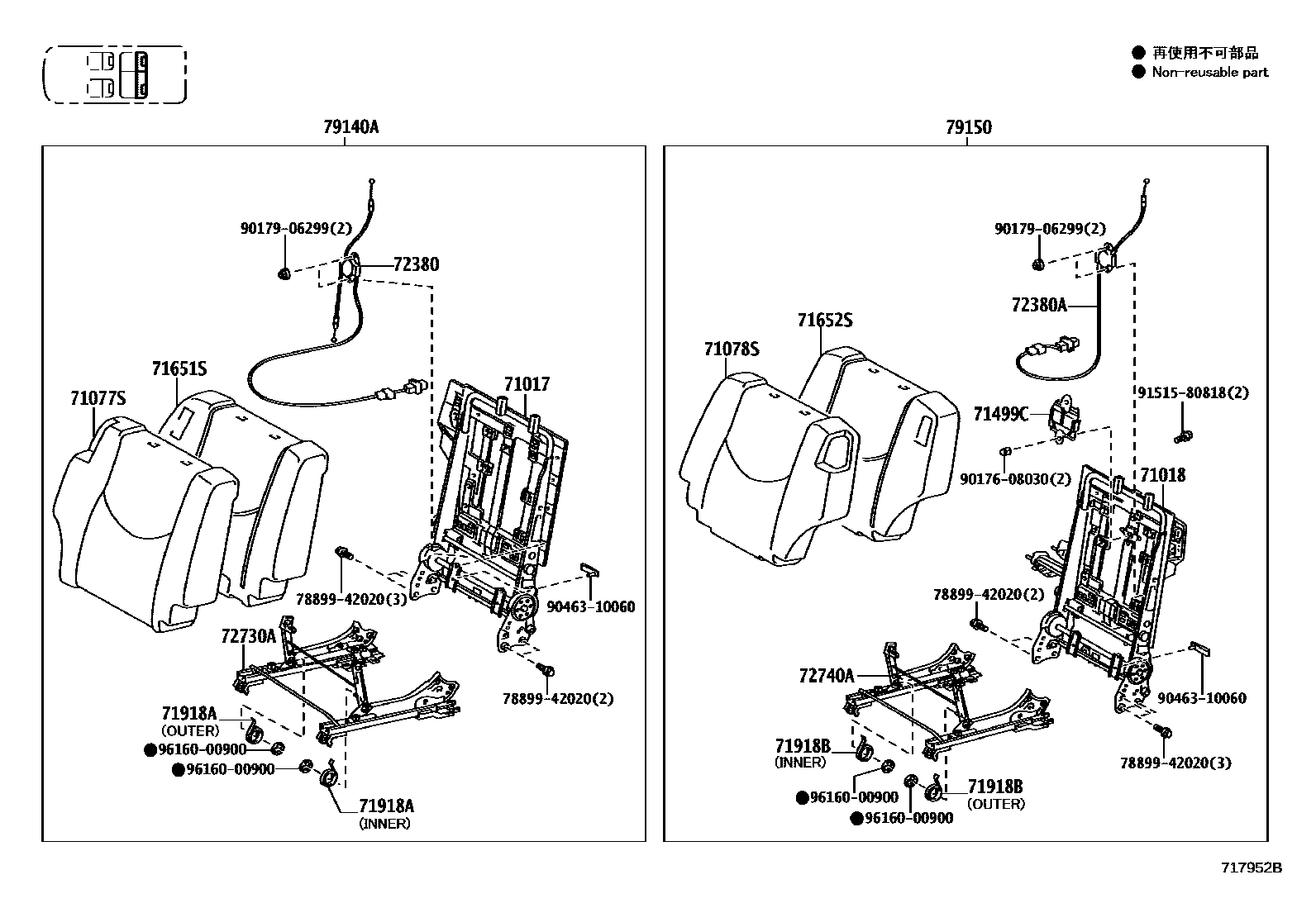

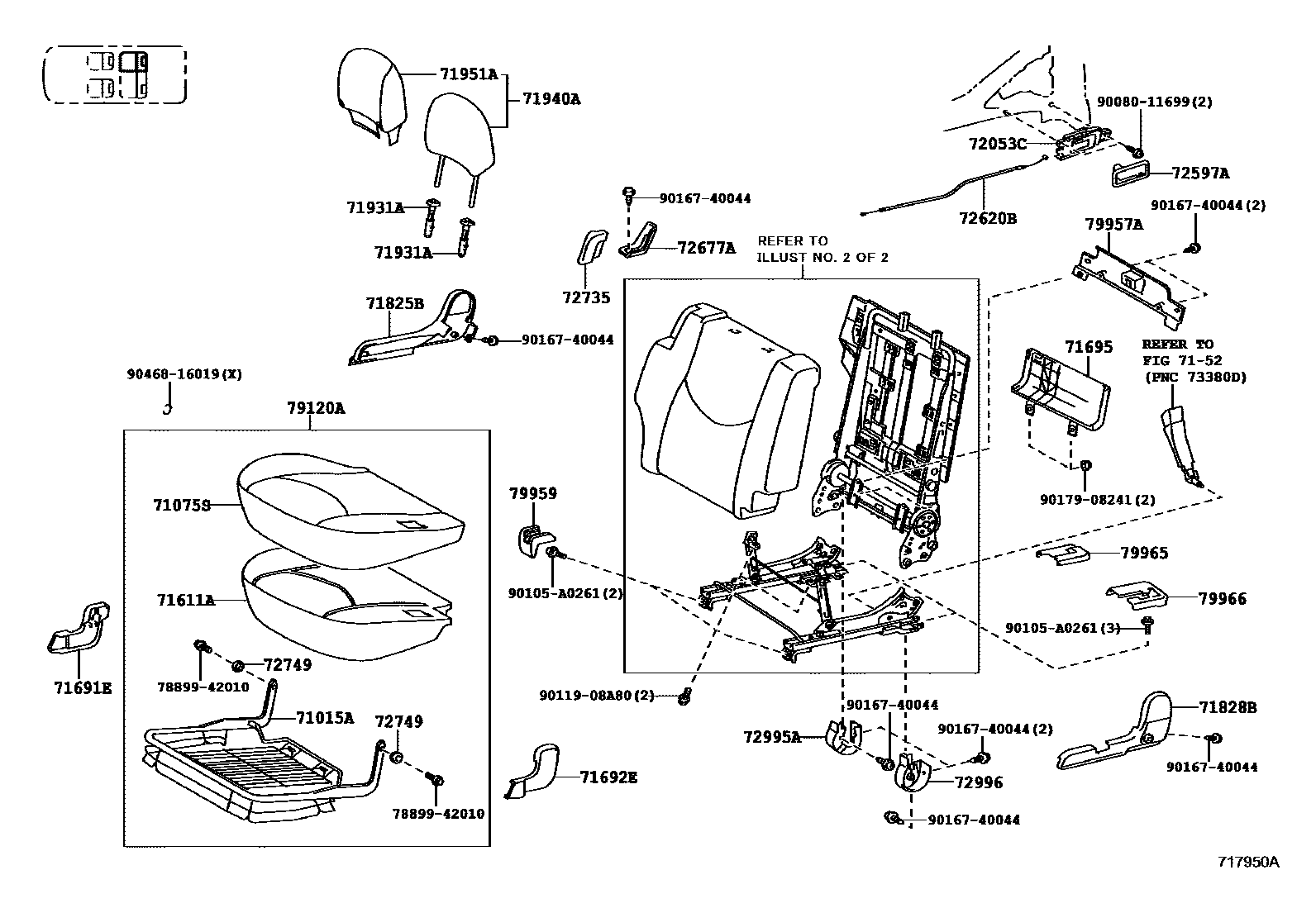

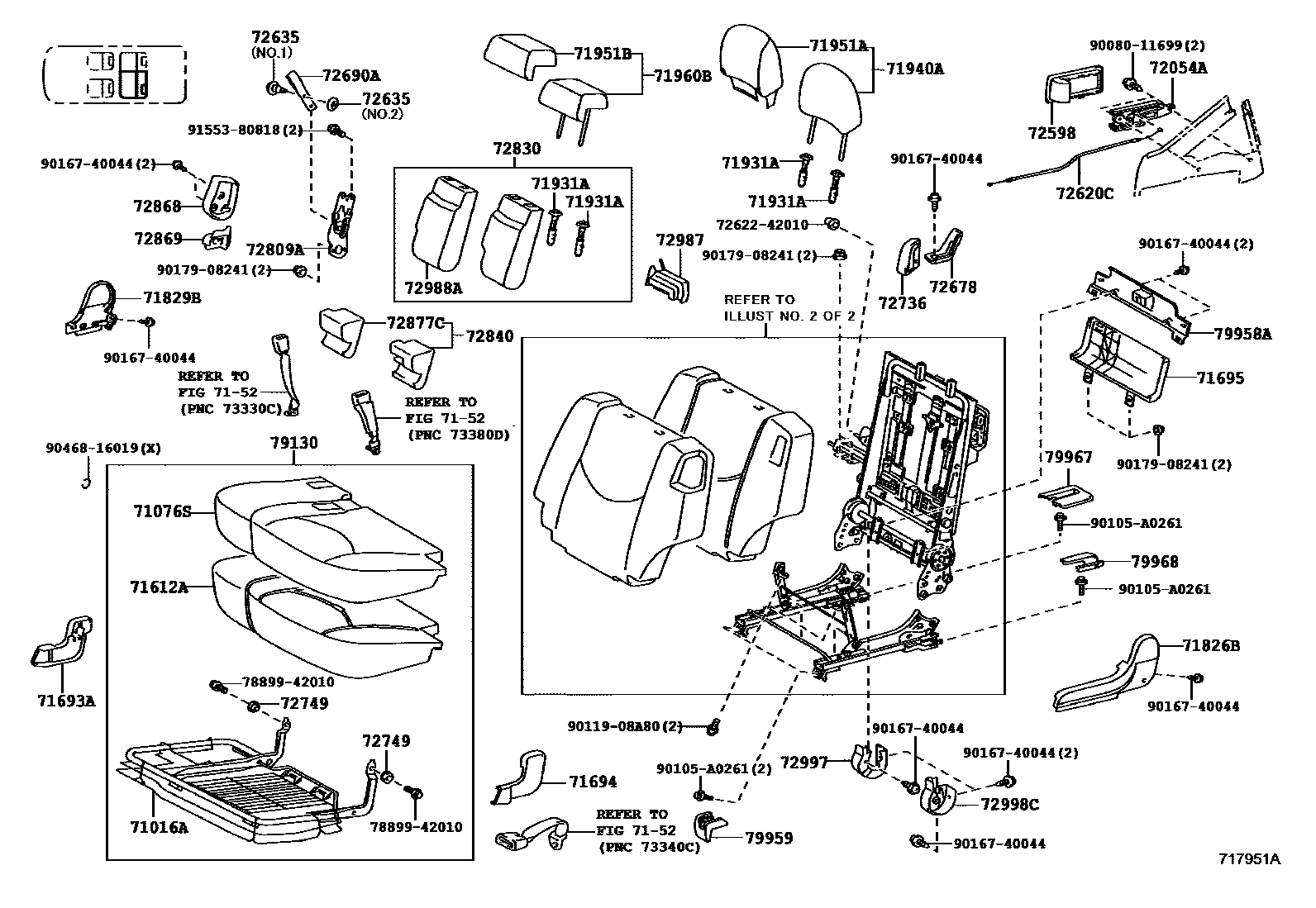

Toyota RAV4 EPC diagram 7151, 座椅和座椅滑轨, with 5 images and 44 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71015A | Rear right seat cushion frame sub-assembly | 71650-0R010 |
| 71016A | Rear left seat cushion frame sub-assembly | 71660-0R010 |
| 71017 | Right rear seat back frame sub-assembly | 71017-0R011 |
| 71018 | Rear left seat back frame sub-assembly | 71018-0R011 |
| 71053S | Front right seat back spring sub-assembly | 71053-02160 |
| 71054S | Front left seat back spring sub-assembly | 71053-02160 |
| 71499C | Rear seat cushion spring damper | 71499-0R010 |
| 71511S | Front right seat cushion cushion (for split seats) | 71511-0R010 |
| 71512S | Front left seat cushion cushion (for split seats) | 71512-0R010 |
| 71611A | Rear right seat cushion | 71611-0R010 |
| 71612A | Rear left seat cushion | 71612-0R010 |
| 71643A | Active head restraint upper unit | 71643-04010 |
| 71644 | Active head restraint lower unit | 71644-04010 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-0R010 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-0R010 |
| 71695 | Rear seat back protection cover | 71695-0R010 |
| 71873 | Front right seat cushion lower guard panel | 71873-0R010 |
| 71873A | Front seat cushion lower guard | 71873-0R010 |
| 71874 | Front left seat cushion lower guard | 71874-0R010 |
| 71874A | Front left seat cushion lower guard | 71874-0R010 |
| 71875B | Right backrest tilt adjuster inner cover | 71875-AA060 |
| 71875E | Right backrest tilt adjuster inner cover | 71875-AA060 |
| 71876B | Left backrest tilt adjuster inner cover | 71876-AA060 |
| 71876E | Left backrest tilt adjuster inner cover | 71876-AA060 |
| 71918A | Center seat cushion buckle spring | 71918-0R010 · 71918-0R020 |
| 71918B | No. 2 center seat cushion buckle spring | 71918-0R010 · 71918-0R020 |
| 72053C | Right seat backrest inclination rocker sub-assembly | 72053-0R010 |
| 72054A | Left seat backrest tilt remote control lever sub-assembly | 72054-0R010 |
| 72380 | No. 2 seat adjuster control cable assembly | 72380-0R030 |
| 72380A | No. 2 seat adjuster control cable assembly | 72380-0R040 |
| 72597A | Right seat backrest tilt rocker frame | 72597-0R010 |
| 72598 | Left seat backrest tilt rocker frame | 72597-0R010 |
| 72620B | Rear No. 1 seat lock cable assembly | 72620-0R010 |
| 72620C | Rear No. 1 seat lock cable assembly | 72620-0R020 |
| 72730A | Rear right seat backrest tilt adjuster assembly | 72730-0R010 |
| 72740A | Rear left seat backrest angle adjuster assembly | 72740-0R010 |
| 72749 | Rear seat backrest tilt cushion | 72749-48010 |
| 72809A | Center armrest lock sub-assembly | 72809-0R010 |
| 87501A | Right seat heater control sub-assembly | 87501-0R020 |
| 87501B | Left side seat heater control sub-assembly | 87501-0R010 |
| 87510K | Front right seat cushion heater assembly | 87510-0R070 |
| 87510L | Front left seat cushion heater assembly | 87510-0R070 |
| 87510M | Front right seat back heater assembly | 87510-0R100 |
| 87510N | Front left seat back heater assembly | 87510-0R100 |
