Toyota RAV4 锁芯组件 — Figure 6765

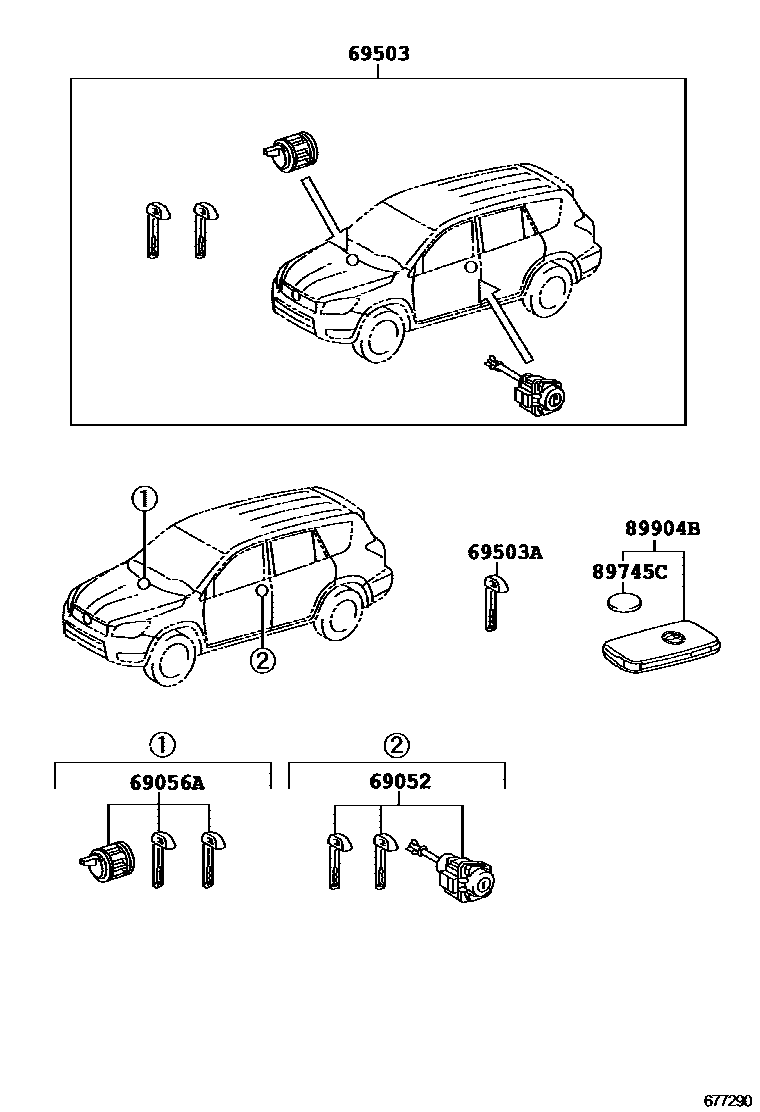

Toyota RAV4 EPC diagram 6765, 锁芯组件, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69052 | Left door lock cylinder and key assembly | 69052-0R020 |
| 69056A | Glove box lock cylinder and key assembly | 69056-0R040 |
| 69503 | Door lock cylinder components | 69005-0R040 |
| 69503A | external tooth key | 69515-52120 |
| 89745C | Transmitter battery | 89745-52020 |
| 89904B | Electronic key transmitter sub-assembly | 89904-0R060 |
