Toyota RAV4 前门板和前门玻璃 — Figure 6751

Toyota RAV4 EPC diagram 6751, 前门板和前门玻璃, with 2 images and 31 PNC and OE references.

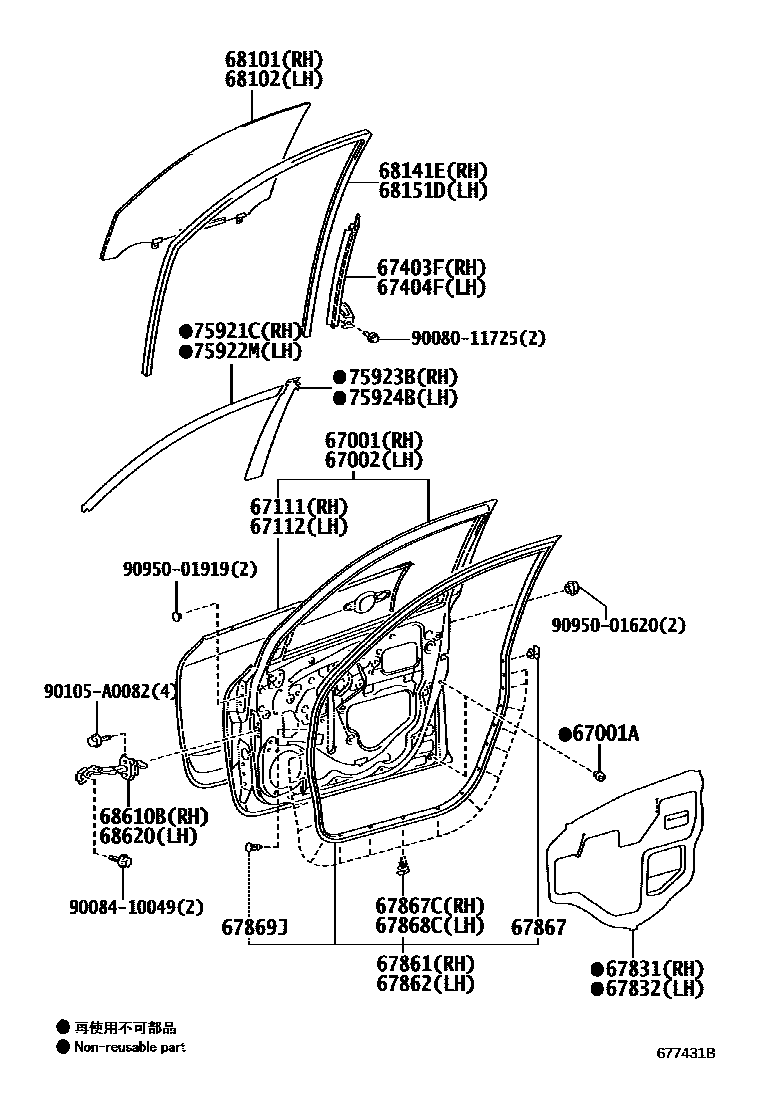

Toyota RAV4 前门板和前门玻璃 EPC diagram — 677431B
前门板和前门玻璃 — 677431B (201204 – 999999)

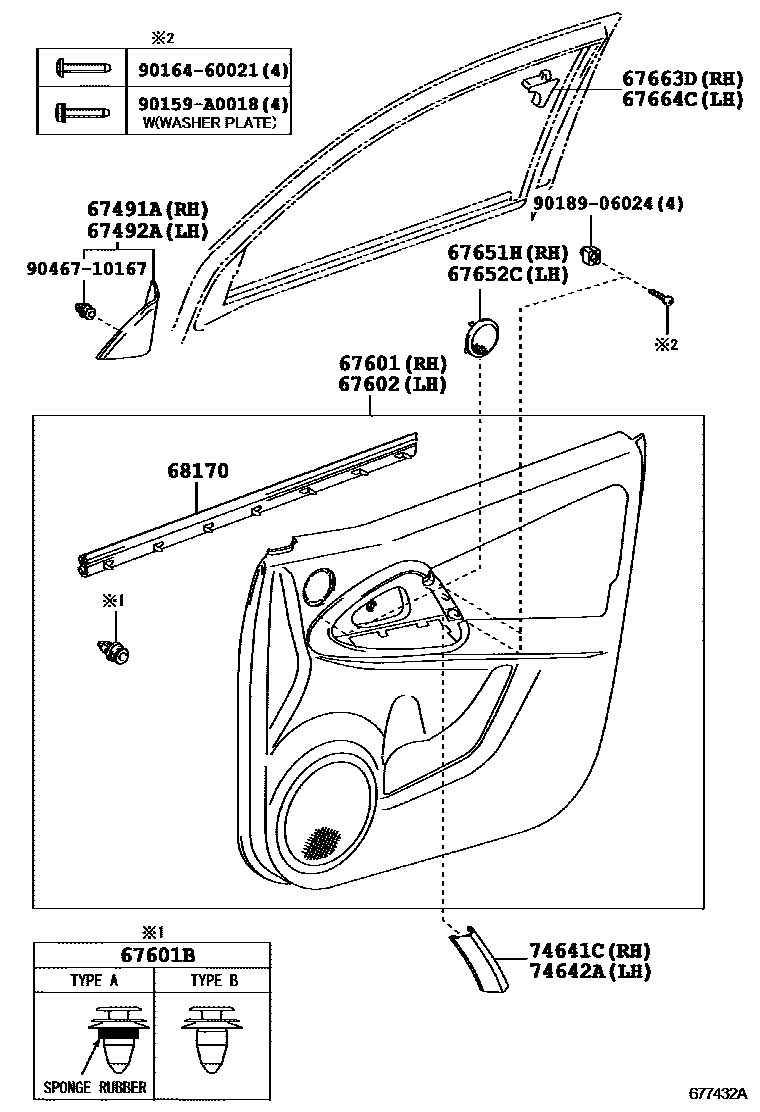

Toyota RAV4 前门板和前门玻璃 EPC diagram — 677432A
前门板和前门玻璃 — 677432A (201204 – 999999)

PNC and OE references

PNCPart nameOE numbers
67001Right front door panel sub-assembly67001-0R020
67001AFront door panel cushion90541-09137
67002Left front door panel sub-assembly67002-0R020
67111Outer right front door panel67111-0R010
67112Outer left front door panel67112-0R010
67403FRight front door rear lower door frame sub-assembly67403-0R010
67404FLeft front door rear lower door frame sub-assembly67404-0R010
67491ARight front door lower door frame bracket decorative strip67491-0R012
67492ALeft front door lower door frame bracket decorative strip67492-0R012
67601BCatch (for front door trim panel)90467-09206 · 90467-10161
67663DRight door frame decorative strip67663-0R010
67664CLeft door frame decorative strip67664-0R010
67831Right front door access hole cover67831-0R030
67832Left front door access hole cover67832-0R030
67861Right front door seal67861-0R010
67862Left front door seal67862-0R010
67867Car door seal strip clip90467-04034
67867CRight front door seal strip fixing67867-12150
67868CLeft front door seal strip fixing67867-12150
67869JFront door seal strip clip67869-20030
68101Right front door glass sub-assembly68101-0R011
68102Left front door glass sub-assembly68102-0R011
68141ERight front door glass lift channel68141-0R010
68151DLeft front door glass lift channel68151-0R010
68170Front door glass inner sealing strip assembly68171-0R010 · 68172-0R010
68610BRight front door opening limiter assembly68610-0R010
68620Left front door opening limiter assembly68620-0R010
75921CNo. 1 right side light-shielding film75921-0R010
75922MNo. 1 left shading film75922-0R010
75923BNo. 2 right side light-shielding film75923-0R010
75924BNo. 2 left shading film75924-0R010
