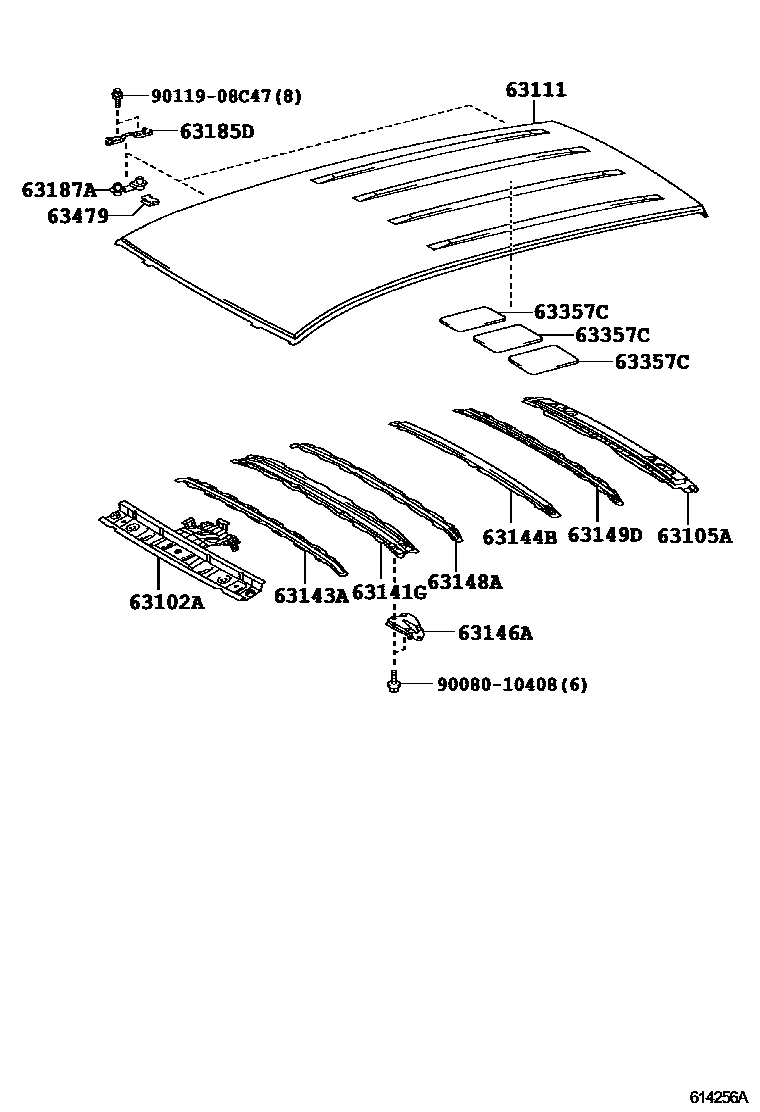

Toyota RAV4 天窗板和背板 — Figure 6153
Toyota RAV4 EPC diagram 6153, 天窗板和背板, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63102A | Windshield roof sub-assembly | 63102-0R901 |
| 63105A | Back door opening frame sub-assembly | 63105-0R010 |
| 63111 | roof panel | 63111-0R041 |
| 63141G | No. 1 roof panel reinforcement | 63141-0R010 |
| 63143A | Roof panel reinforcement | 63143-0R010 |
| 63144B | No. 4 roof panel reinforcement | 63144-0R010 |
| 63146A | No. 1 roof panel reinforcement bracket | 63146-0R010 |
| 63148A | No. 7 roof panel reinforcement | 63148-0R020 |
| 63149D | No. 8 roof panel reinforcement | 63149-0R010 |
| 63185D | Front roof rack bracket | 63185-0R010 · 63185-42020 |
| 63187A | Rear roof rack bracket | 63187-0R010 |
| 63357C | Roof silencer | 63357-0R010 |
| 63479 | Roof rack fixings | 63479-0E010 |
