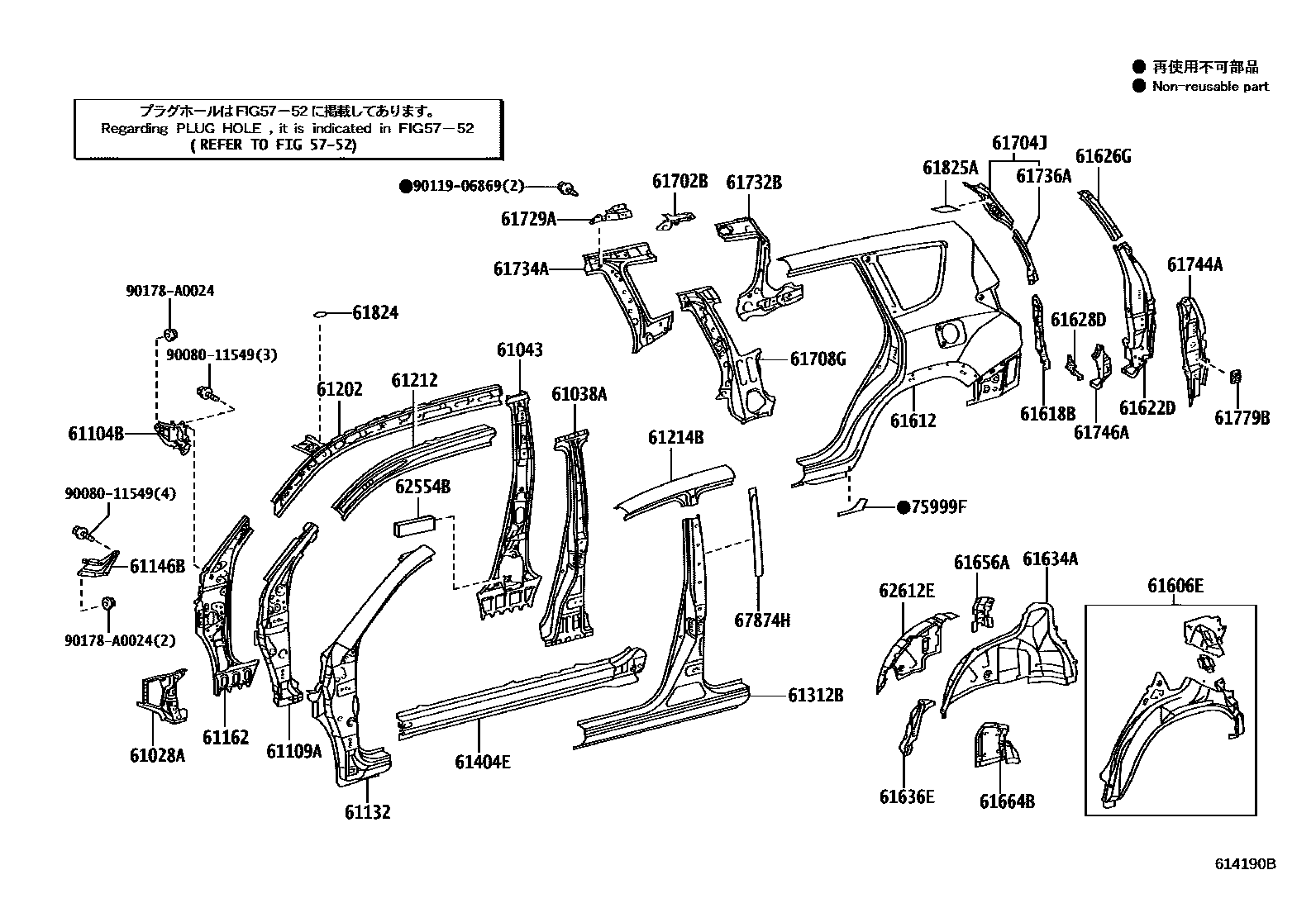

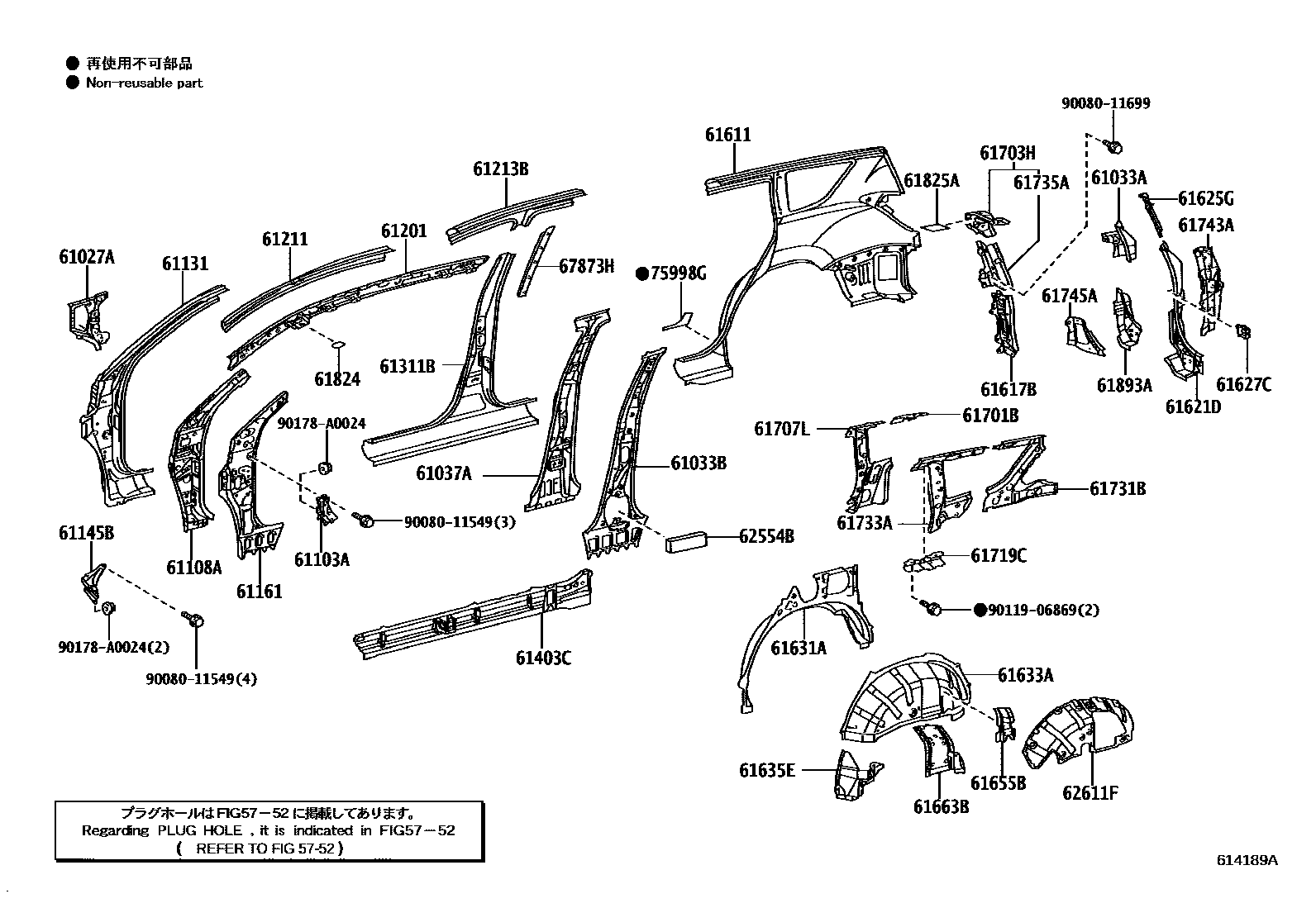

Toyota RAV4 侧梁 — Figure 6151
Toyota RAV4 EPC diagram 6151, 侧梁, with 2 images and 76 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 61027A | Right body outer front pillar sub-assembly | 61027-0R010 |
| 61028A | Left body outer front pillar sub-assembly | 61028-0R010 |
| 61033A | Rear door opening side reinforcement sub-assembly | 61033-0R020 |
| 61033B | No. 2 right inner column sub-assembly | 61033-0R010 |
| 61037A | Right body center pillar reinforcement sub-assembly | 61037-0R901 |
| 61038A | Left body center pillar reinforcement sub-assembly | 61038-0R901 |
| 61043 | No. 2 left inner column sub-assembly | 61043-0R010 |
| 61103A | Right front wall side reinforcement sub-assembly | 61103-0R010 |
| 61104B | Left front wall side reinforcement sub-assembly | 61104-0R010 |
| 61108A | Right body front pillar lower reinforcement sub-assembly | 61108-0R902 |
| 61109A | Left side body front pillar lower reinforcement sub-assembly | 61109-0R902 |
| 61131 | Right body outer front upper pillar | 61131-0R010 |
| 61132 | Left body outer front upper pillar | 61132-0R010 |
| 61145B | Right body front pillar lower corner panel | 61145-0R010 |
| 61146B | Left body front pillar lower corner panel | 61146-0R010 |
| 61161 | Right upper body inner front pillar | 61023-0R010 · 61023-0R011 |
| 61162 | Left side inner front upper pillar | 61024-0R010 · 61024-0R011 |
| 61201 | Roof right side longitudinal beam sub-assembly | 61201-0R010 |
| 61202 | Roof left side longitudinal beam sub-assembly | 61202-0R010 |
| 61211 | Roof right outer longitudinal beam | 61211-0R010 |
| 61212 | Roof left outer longitudinal beam | 61212-0R010 |
| 61213B | No. 2 longitudinal beam on the outer right side of the roof | 61213-0R010 |
| 61214B | No. 2 longitudinal beam on the left side of the roof | 61214-0R010 |
| 61311B | Right body outer center pillar | 61311-0R010 |
| 61312B | Left body outer center pillar | 61312-0R010 |
| 61403C | Right door outer sill reinforcement sub-assembly | 61403-0R010 |
| 61404E | Left door outer sill reinforcement sub-assembly | 61404-0R010 |
| 61606E | left side panel | 61606-0R021 |
| 61611 | Right side hoarding | 61601-0R011 |
| 61612 | left side panel | 61602-0R011 |
| 61617B | Inner lower panel of right side enclosure | 61617-0R010 |
| 61618B | Inner lower panel of left side enclosure | 61618-0R010 |
| 61621D | Back door right opening slot | 61621-0R010 |
| 61622D | Rear door left opening slot | 61622-0R010 |
| 61625G | Right rear side panel extension | 61625-0R010 |
| 61626G | Left rear side panel extension | 61626-0R010 |
| 61627C | Right side enclosure inner panel reinforcement | 61627-0R010 |
| 61628D | Left rear side panel lower extension | 61628-0R010 |
| 61631A | Right wheel cover outer panel | 61631-0R010 |
| 61633A | Right wheel housing lining panel | 61633-0R011 |
| 61634A | Left side wheel housing lining panel | 61634-0R011 |
| 61635E | Right wheel housing extension | 61065-0R010 |
| 61636E | Left side wheel housing extension | 61066-0R010 |
| 61655B | Right side wheel cover inner corner panel | 61655-0R010 |
| 61656A | Left side wheel housing inner corner panel | 61656-0R030 |
| 61663B | Center reinforcement on the inner side of the right wheel cover | 61067-0R010 |
| 61664B | Center reinforcement on the inner side of the left wheel housing | 61068-0R011 · 61068-0R031 · 61068-42021 |
| 61701B | Roof right inner upper panel sub-assembly | 61701-0R010 |
| 61702B | Roof left inner upper panel sub-assembly | 61702-0R010 |
| 61703H | Roof inner right reinforcement sub-assembly | 61703-0R010 |
| 61704J | Roof inner left reinforcement sub-assembly | 61704-0R010 |
| 61707L | Right front roof inner panel sub-assembly | 61707-0R010 |
| 61708G | Left front roof inner panel sub-assembly | 61708-0R010 |
| 61719C | Roof right side rail bracket | 61719-0R010 |
| 61729A | Roof left side rail bracket | 61729-0R010 |
| 61731B | Roof right inner panel | 61731-0R010 |
| 61732B | Roof left inner panel | 61732-0R010 |
| 61733A | Right front roof inner panel | 61733-0R010 |
| 61734A | Left front roof inner panel | 61734-0R010 |
| 61735A | Right rear roof inner panel | 61735-0R010 |
| 61736A | Left rear roof inner panel | 61736-0R010 |
| 61743A | Rear door opening right reinforcement | 61743-0R010 |
| 61744A | Rear door opening left reinforcement | 61744-0R010 |
| 61745A | Back door opening lower right reinforcement | 61745-0R010 |
| 61746A | Rear door opening lower left reinforcement | 61746-0R010 |
| 61779B | Rear door opening lower left panel | 61779-0R010 |
| 61824 | Noise Control Panel No. 1 | 61824-0R010 |
| 61825A | Noise Control Panel No. 2 | 61825-0R010 |
| 61893A | Back door lower hinge right fixing piece | 61893-0R010 |
| 62554B | No. 4 column pad | 62554-0R040 · 62554-0R100 |
| 62611F | Right wheel cover vibration isolation pad | 62505-0R010 |
| 62612E | Left side wheel cover vibration isolation pad | 62506-0R010 |
| 67873H | Center door No. 1 upper seal | 67873-0R010 |
| 67874H | Center door No. 2 upper seal | 67874-0R010 |
| 75998G | Lower side panel on right side | 75998-0R010 |
| 75999F | Lower side panel on left side | 75999-0R010 |
