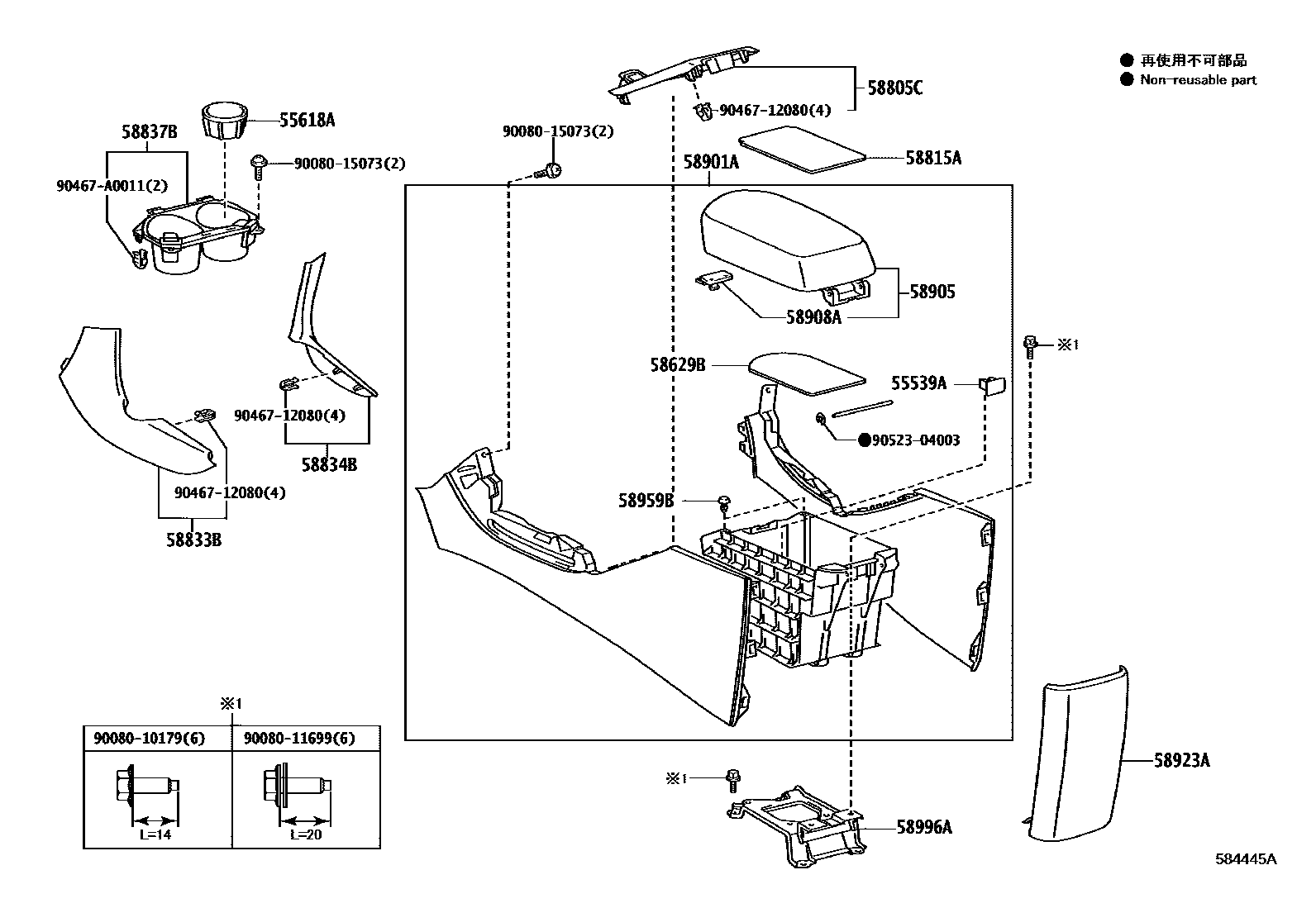

Toyota RAV4 中央扶手箱和支架 — Figure 5855
Toyota RAV4 EPC diagram 5855, 中央扶手箱和支架, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55618A | Armrest box cup holder | 55618-0R011 |
| 58629B | center console pad | 58629-0R010 |
| 58815A | Armrest box felt pad | 58815-0R010 |
| 58833B | Armrest box upper panel decorative part No. 1 | 58833-0R040 |
| 58834B | Armrest box upper panel decorative part No. 2 | 58834-0R030 |
| 58908A | Armrest box lid lock assembly | 58908-12080 |
| 58959B | Armrest box cover cushion | 58959-0R010 |
| 58996A | Armrest box No. 2 mounting bracket | 58996-0R010 |
