Toyota RAV4 后地板和后地板梁 — Figure 5852

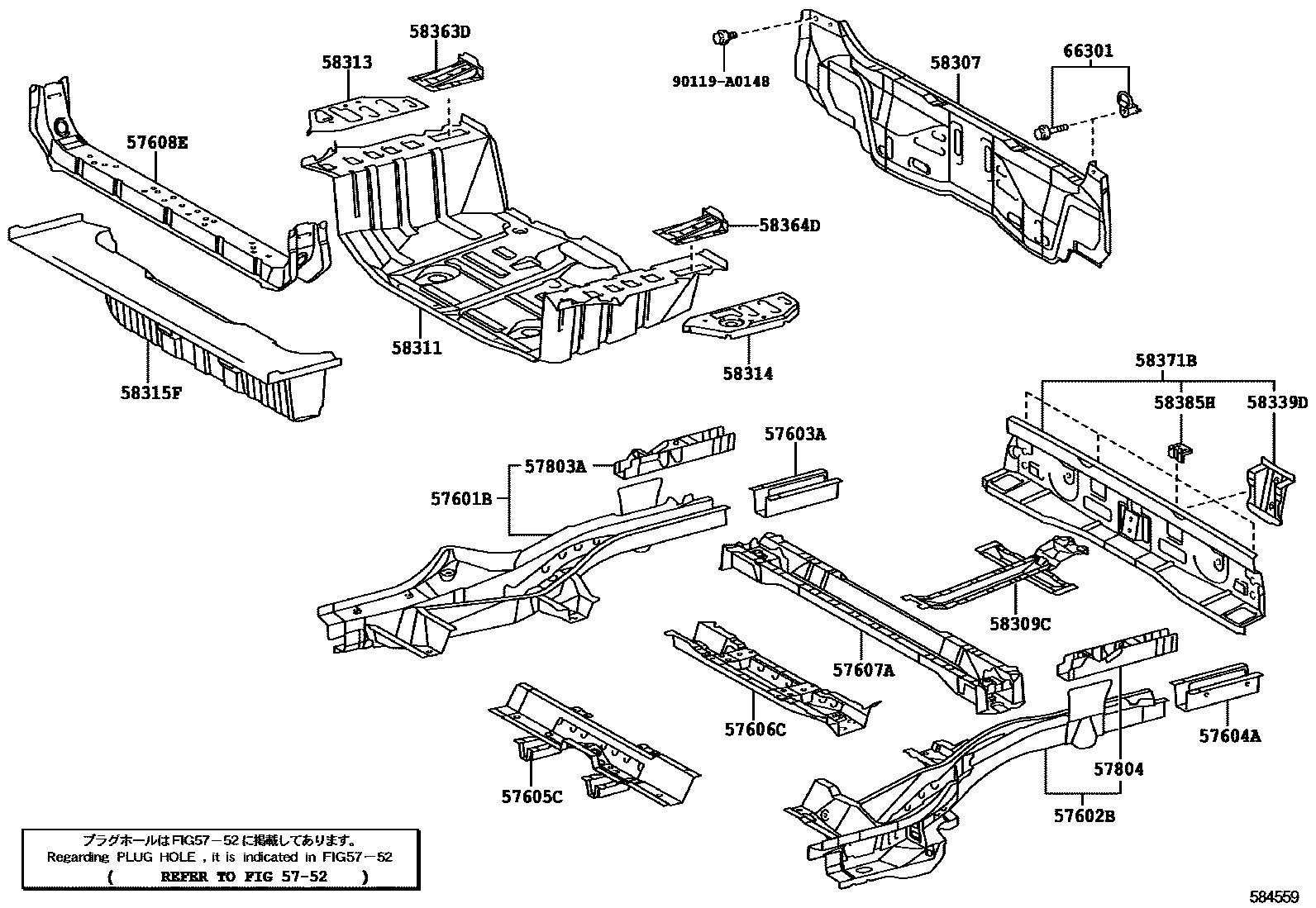

Toyota RAV4 EPC diagram 5852, 后地板和后地板梁, with 1 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 57601B | Rear floor right front longitudinal beam sub-assembly | 57601-0R030 · 57601-0R031 |
| 57602B | Rear floor left front longitudinal beam sub-assembly | 57602-0R030 |
| 57603A | Rear floor right rear longitudinal beam sub-assembly | 57603-0R010 |
| 57604A | Rear floor left rear longitudinal beam sub-assembly | 57604-0R010 |
| 57605C | Rear floor cross member sub-assembly | 57605-0R010 · 57605-0R011 |
| 57606C | Rear floor No. 2 cross member sub-assembly | 57606-0R040 |
| 57607A | Rear floor No. 3 cross member sub-assembly | 57607-0R011 |
| 57608E | Right longitudinal beam to floor reinforcement sub-assembly | 57608-0R010 |
| 57803A | Rear floor right rear longitudinal beam reinforcement sub-assembly | 57803-0R010 |
| 57804 | Rear floor left rear longitudinal beam reinforcement sub-assembly | 57804-0R010 |
| 58307 | Body lower back panel sub-assembly | 58307-0R011 |
| 58309C | Tailgate anti-collision block sub-assembly | 58309-0R020 |
| 58311 | rear floor pan | 58311-0R010 |
| 58313 | Rear floor right panel | 58313-0R010 |
| 58314 | rear floor left panel | 58314-0R010 |
| 58315F | rear floor front side panel extension | 58315-0R010 |
| 58339D | Lift the bracket | 58339-0R011 |
| 58363D | Rear floor No. 2 right reinforcement | 58363-0R011 |
| 58364D | Rear floor No. 2 left reinforcement | 58364-0R011 |
| 58371B | Body outer lower back panel | 58302-0R011 |
| 58385H | Rear bumper cover No. 1 bracket | 58385-0R010 |
| 66301 | Rope hook sub-assembly | 66301-42010 |
