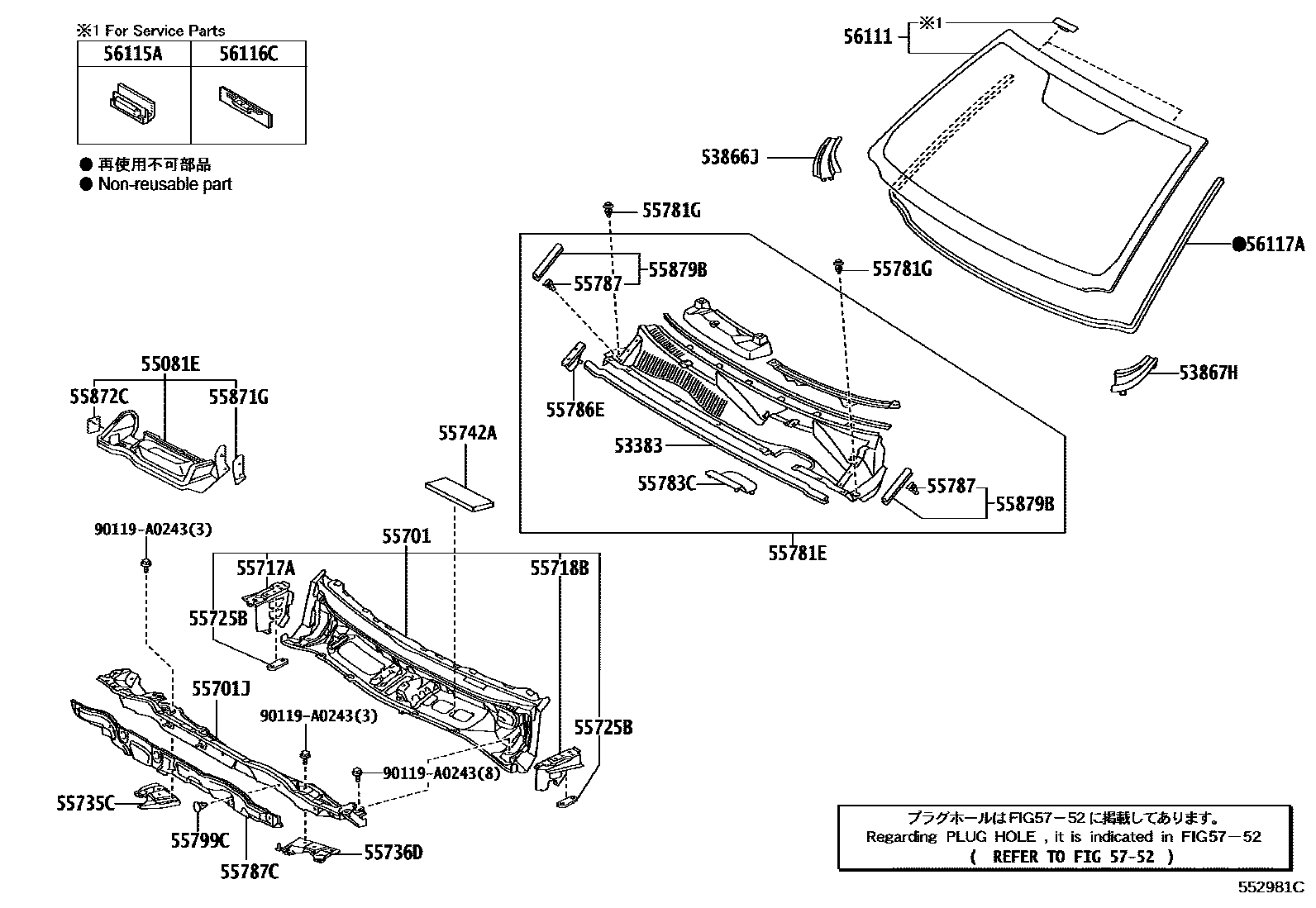

Toyota RAV4 前围板和挡风玻璃 — Figure 5553
Toyota RAV4 EPC diagram 5553, 前围板和挡风玻璃, with 1 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53383 | Engine cover to cowl upper cover seal | 53383-0R010 |
| 53866J | Right front fender to cowl side seal | 53866-0R010 |
| 53867H | Left front fender to cowl side seal | 53867-0R010 |
| 55081E | Front ventilation device shell sub-assembly | 55081-0R010 |
| 55701 | Front apron sub-assembly | 55700-0R010 |
| 55701J | Front wall upper outer panel sub-assembly | 55701-0R010 |
| 55717A | Upper right inner panel of cowl | 55717-0R010 |
| 55718B | Upper left inner panel of front wall | 55718-0R010 |
| 55725B | Engine cover hinge installation reinforcement | 55725-0R010 |
| 55735C | Right front wall body-mounted reinforcement | 55735-0R010 |
| 55736D | Left front wall body mounting reinforcement | 55736-0R010 |
| 55742A | Heat insulation panel on front wall | 55742-0R010 |
| 55781E | Ventilation grille sub-assembly on front apron | 55708-0R010 |
| 55783C | Ventilation grille bracket on right front apron | 55783-0R010 |
| 55786E | Ventilation grille connection plate on front apron | 55786-0R010 |
| 55787 | Front apron ventilation grille inner clip | 67867-12150 |
| 55787C | No. 1 front wall upper cover thermal insulation pad | 55787-0R010 |
| 55799C | Ventilation grille clips on front apron | 90467-A0003 |
| 55871G | No. 1 air duct seal | 55871-0R010 |
| 55872C | No. 2 air duct seal | 55872-0R010 |
| 55879B | cowl vent seal | 55879-0R010 |
| 56111 | windshield | 56101-0R110 |
| 56115A | Windshield block No. 1 | 56115-30100 |
| 56116C | Windshield block 2 | 56116-22050 |
| 56117A | Window glass adhesive seals | 56117-42050 |
