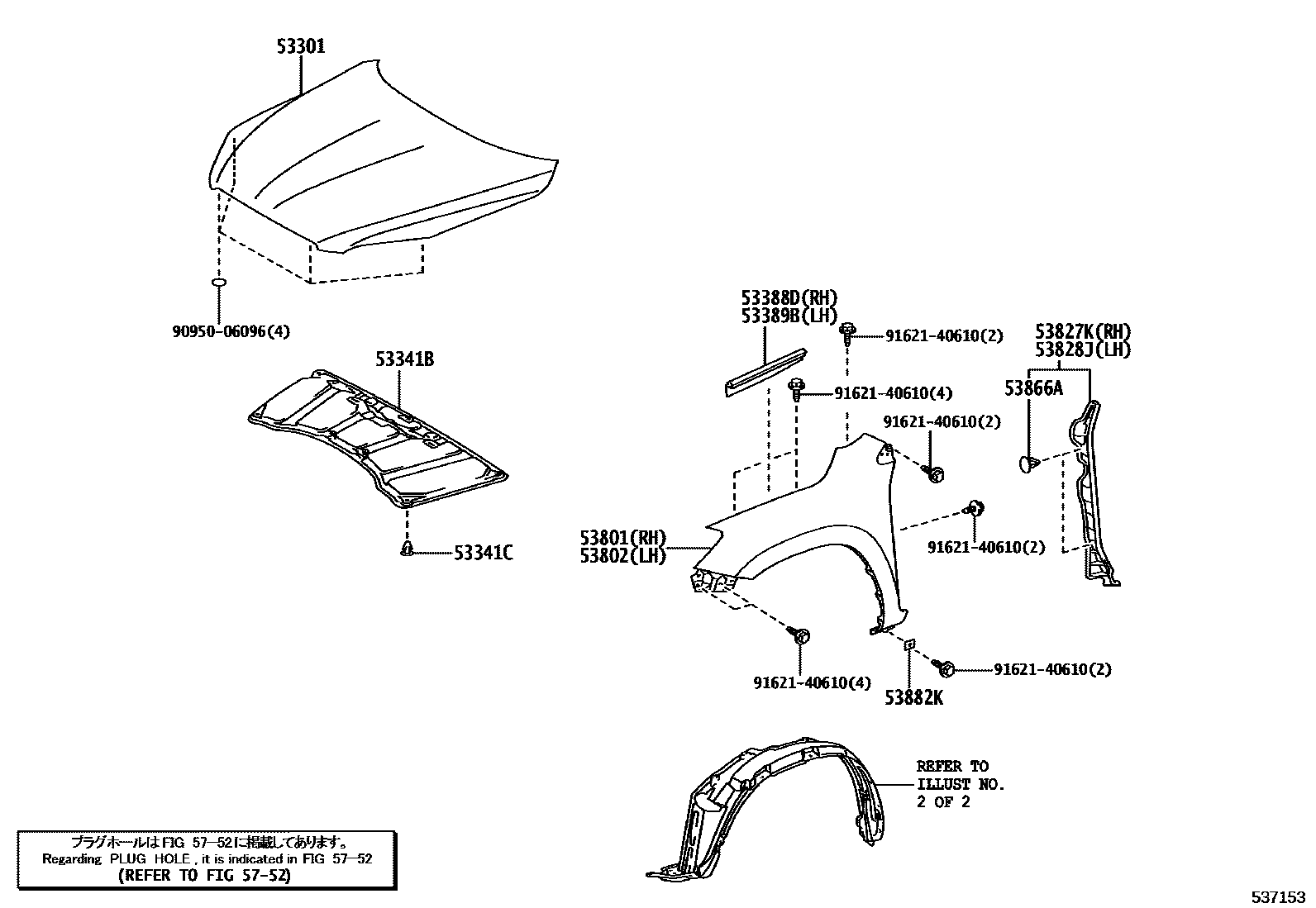

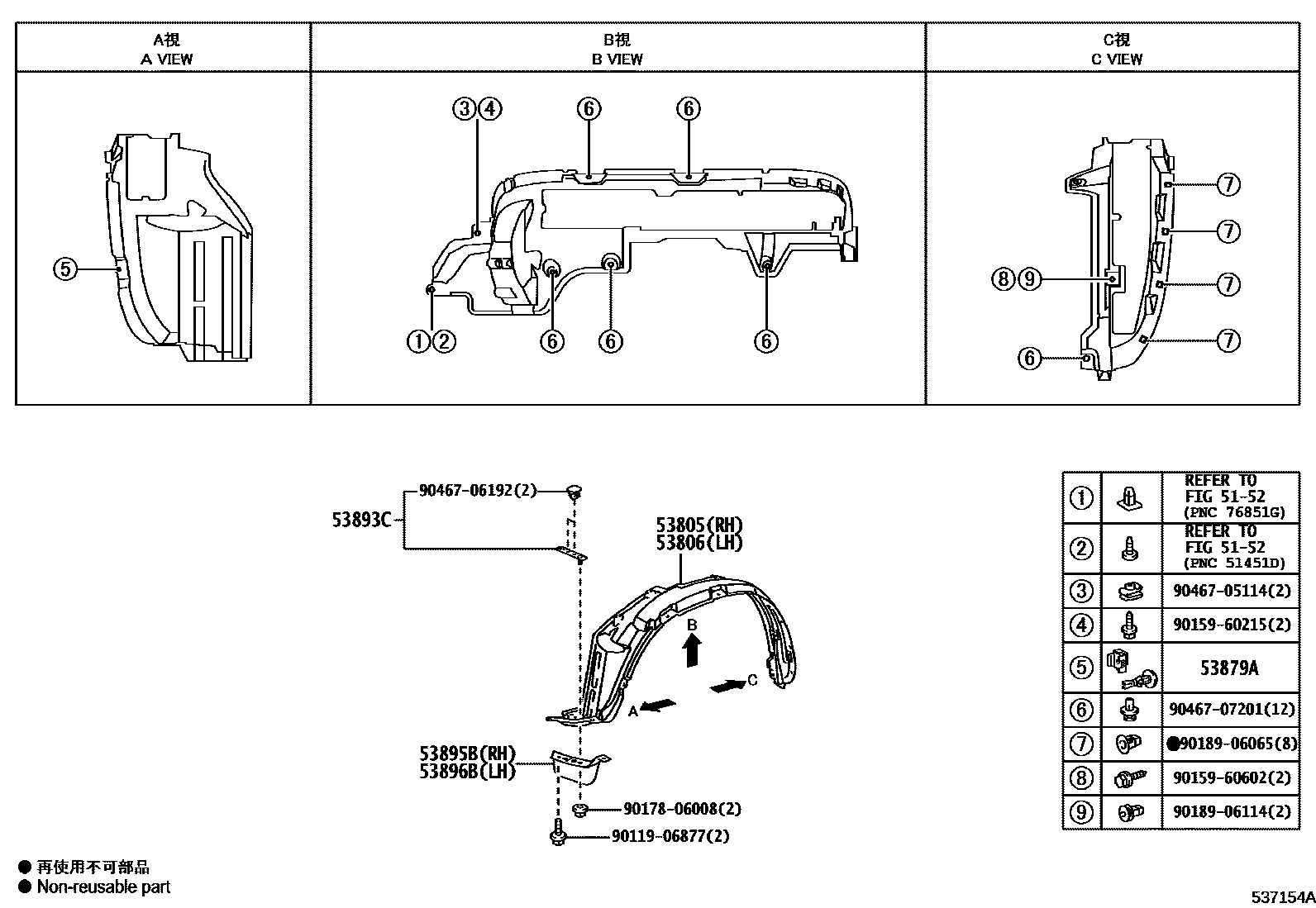

Toyota RAV4 发动机盖和前翼子板 — Figure 5353
Toyota RAV4 EPC diagram 5353, 发动机盖和前翼子板, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53301 | Engine cover sub-assembly | 53301-0R020 |
| 53341B | engine cover gasket | 53341-0R010 |
| 53341C | Clip (for engine cover gasket) | 90467-09050 |
| 53388D | Engine cover to right front fender seal | 53388-0R010 |
| 53389B | Engine cover to left front fender seal | 53389-0R010 |
| 53801 | Right front fender sub-assembly | 53801-0R050 |
| 53802 | Left front fender sub-assembly | 53802-0R020 |
| 53805 | Right front fender splash guard sub-assembly | 53805-0R010 |
| 53806 | Left front fender splash guard sub-assembly | 53806-0R010 |
| 53827K | Right front fender side panel protector | 53827-0R010 |
| 53828J | Left front fender side panel protector | 53828-0R010 |
| 53879A | Front fender lining fixing parts | 53879-0R010 |
| 53882K | front fender seal | 53882-16030 |
| 53893C | Front fender splash guard front fixings | 53893-0R010 |
| 53895B | Right front fender front splash guard | 53895-0R010 |
| 53896B | Left front fender front splash guard | 53896-0R010 |
