Toyota RAV4 后保险杠及附件 — Figure 5253

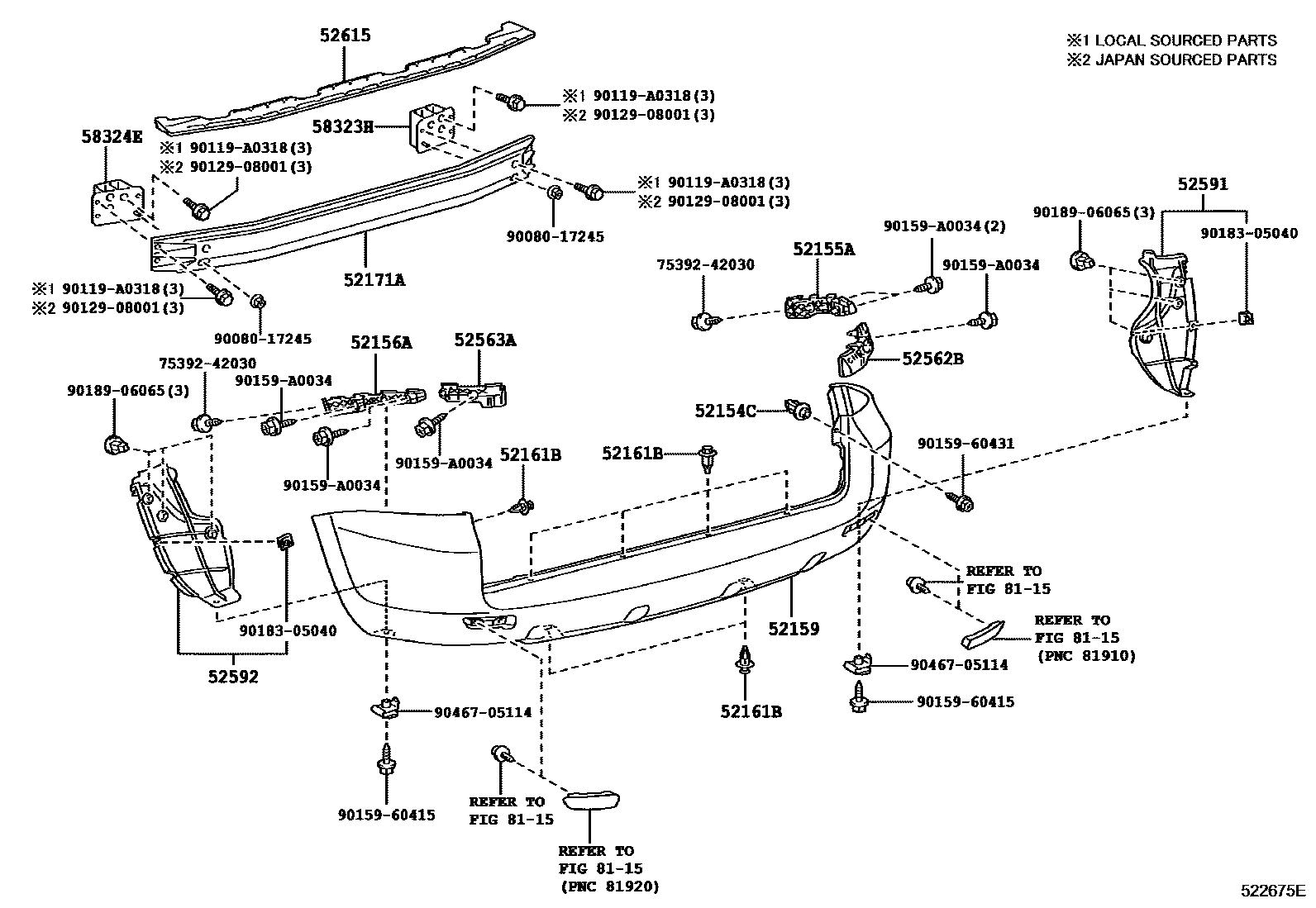

Toyota RAV4 EPC diagram 5253, 后保险杠及附件, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52154C | Rear bumper bracket No. 1 | 52154-0R010 |
| 52155A | Rear bumper right side bracket | 52155-0R010 |
| 52156A | Rear bumper left bracket | 52156-0R010 |
| 52159 | rear bumper cover | 52159-0R901 |
| 52161B | Rear bumper insert | 52161-02020 |
| 52171A | Rear bumper reinforcement No. 1 | 52171-42070 |
| 52562B | Rear bumper upper right fixing bracket | 52562-0R010 |
| 52563A | Rear bumper upper left fixing bracket | 52563-0R010 |
| 52591 | Rear bumper right seal | 52591-0R010 |
| 52592 | Rear bumper left seal | 52592-0R010 |
| 52615 | Rear bumper energy absorber | 52615-42011 |
| 58323H | Rear bumper arm right bracket reinforcement | 58323-42010 |
| 58324E | Rear bumper arm left bracket reinforcement | 58324-42010 |
