Toyota RAV4 前保险杠及附件 — Figure 5252

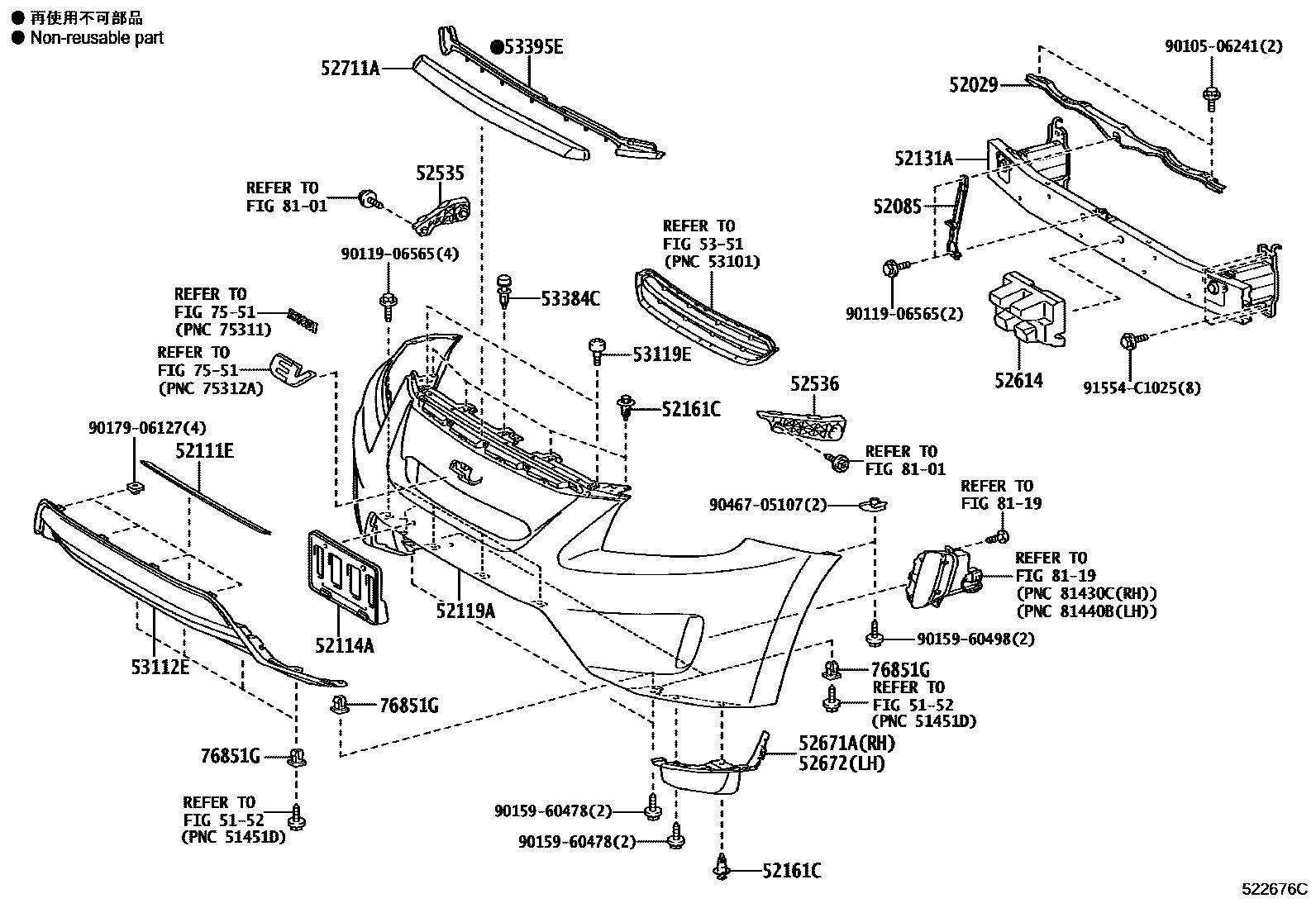

Toyota RAV4 EPC diagram 5252, 前保险杠及附件, with 1 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52029 | Front bumper upper reinforcement sub-assembly | 52029-0R010 |
| 52085 | Front bumper center stay sub-assembly | 52085-0R020 |
| 52111E | front bumper stay | 52111-0R030 |
| 52114A | Front bumper extension mounting bracket | 52114-0R070 |
| 52119A | front bumper cover | 52119-0R910 |
| 52131A | Front bumper reinforcement | 52021-42082 |
| 52161C | front bumper insert | 52161-02020 |
| 52535 | Front bumper right side fixing bracket | 52535-0R010 |
| 52536 | Front bumper left fixed bracket | 52536-0R010 |
| 52614 | No. 2 energy absorber for front bumper | 52614-0R040 |
| 52671A | Front bumper arm right extension section | 52671-0R050 |
| 52672 | Front bumper arm left extension | 52672-0R050 |
| 52711A | front bumper decorative panel | 52711-0R030 |
| 53112E | No. 1 radiator lower grille | 53102-0R010 · 53102-0R011 |
| 53119E | Radiator grille protector | 53119-20120 |
| 53384C | Engine cover center cushion | 53384-0R010 |
| 53395E | Engine cover to front end plate seal | 53395-0R011 |
| 76851G | RONDELLE, VIS, NO.1 | 90189-06193 |
