Toyota RAV4 制动配管和卡箍 — Figure 4708
Toyota RAV4 EPC diagram 4708, 制动配管和卡箍, with 2 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

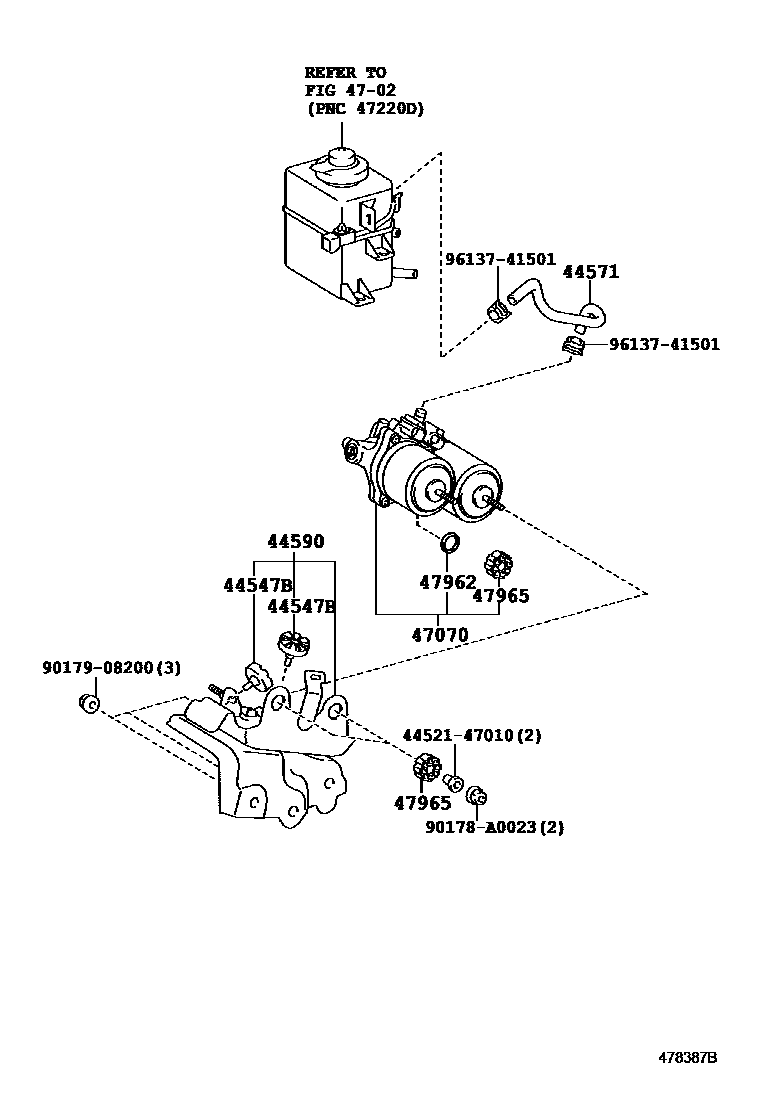

| 44547B | brake actuator bracket cushion | 47131-47070 |
| 44571 | brake actuator hose | 44571-42020 |
| 44590 | Brake actuator bracket assembly | 44590-42140 |
| 47070 | Brake booster pump assembly | 47070-47060 |

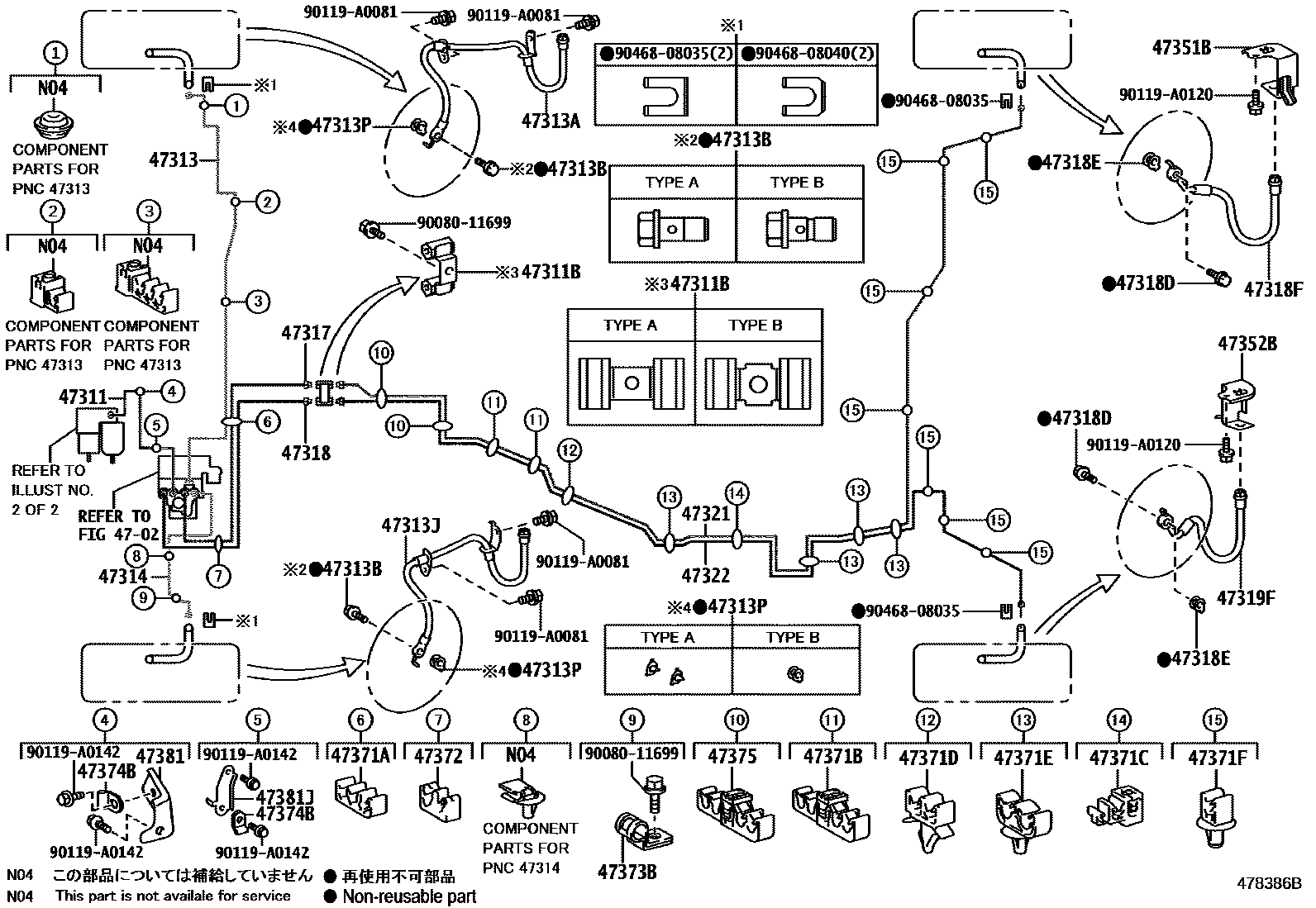

| 47311 | No. 1 front brake pipe | 47311-0R030 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-10260 · 90412-10285 |
| 47313 | No. 3 front brake pipe | 47313-0R030 |
| 47313A | No. 1 front flexible hose | 90947-A2079 |
| 47313B | Connector bolt (for front flex hose) | 90401-10045 · 90401-10058 |
| 47313J | No. 2 front flexible hose | 90947-A2080 |
| 47313P | Gasket (for front flex hose) | 47389-30010 · 47389-50020 |
| 47314 | No. 4 front brake pipe | 47314-0R030 |
| 47317 | No. 7 front brake pipe | 47317-0R030 |
| 47318 | No. 8 front brake pipe | 47318-0R030 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10058 |
| 47318E | Gasket (for rear flex hose) | 47389-50020 |
| 47318F | Right rear flexible hose | 90947-A2081 |
| 47319F | Left rear flexible hose | 90947-A2082 |
| 47321 | No. 1 rear brake pipe | 47321-0R030 |
| 47322 | No. 2 rear brake pipe | 47322-0R030 |
| 47351B | No. 1 Flexible Hose Bracket | 47351-0R010 |
| 47352B | No. 2 Flexible Hose Bracket | 47352-0R010 |
| 47371A | No. 1 brake pipe clamp | 90464-00857 |
| 47371B | No. 6 brake pipe clamp | 77298-0R070 |
| 47371C | No. 7 brake pipe clamp | 77299-32030 |
| 47371D | No. 8 brake pipe clamp | 90469-07019 |
| 47371E | No. 9 brake pipe clamp | 90469-07020 |
| 47371F | No. 10 brake pipe clamp | 90949-01D29 |
| 47372 | No. 2 brake pipe clamp | 90464-00904 |
| 47373B | No. 3 brake pipe clamp | 90461-10781 |
| 47374B | No. 4 brake pipe clamp | 90461-10840 |
| 47375 | No. 5 brake pipe clamp | 77298-0R040 |
| 47381 | No. 1 brake pipe clamp bracket | 47381-0R010 |
| 47381J | No. 2 brake pipe clamp bracket | 47381-75020 |
| 47962 | brake booster pump collar | 47962-60090 |
| 47965 | brake booster pump bushing | 47965-30010 |
