Toyota RAV4 Brake Pedal & Bracket — Figure 4701

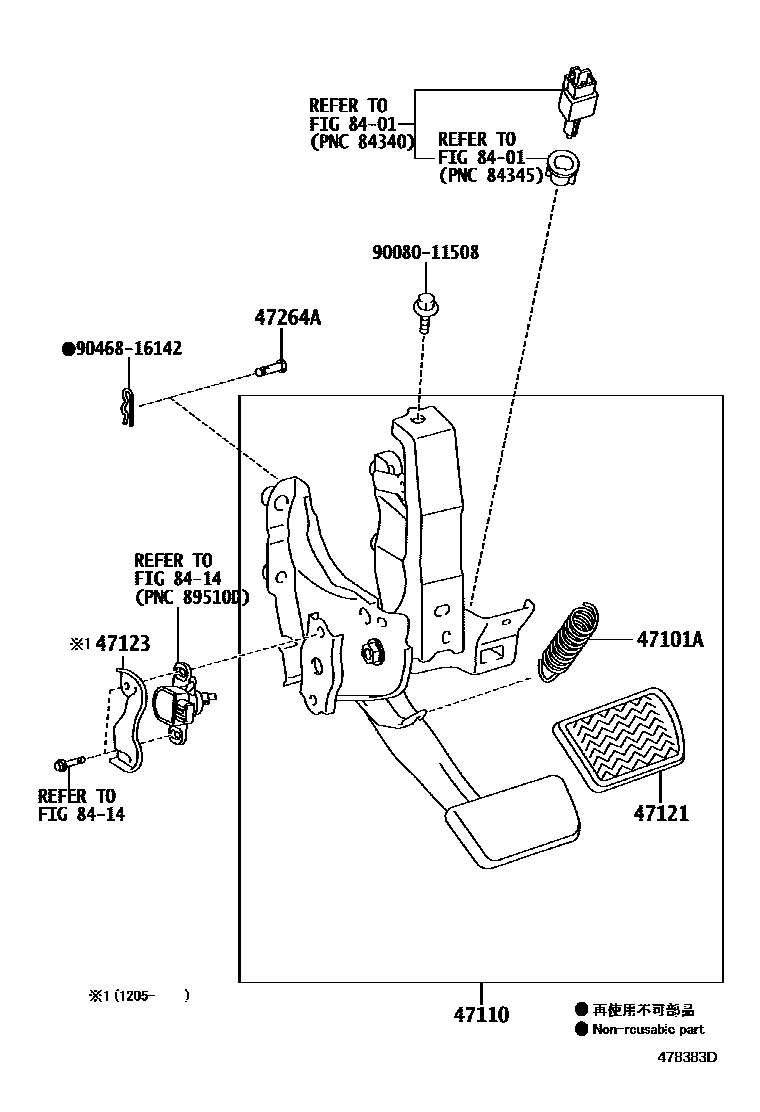

Toyota RAV4 EPC diagram 4701, Brake Pedal & Bracket, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47101A | Spring (for brake pedal return) | 47146-42010 |
| 47110 | Brake pedal bracket assembly | 47110-0R080 · 47110-0R081 |
| 47121 | brake pedal pad | 47121-42010 |
| 47123 | brake pedal bracket | 55155-0R030 |
| 47264A | Pin (for push rod) | 90249-08256 |
