Toyota RAV4 Front Drive Shaft — Figure 4302

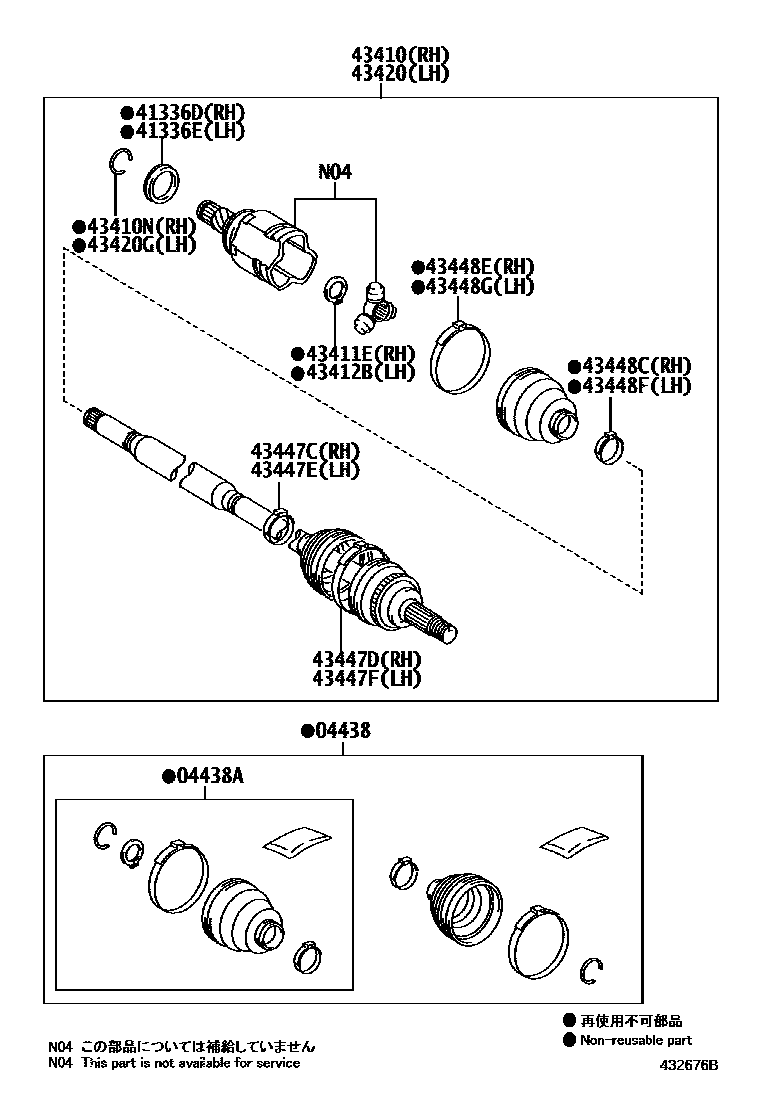

Toyota RAV4 EPC diagram 4302, Front Drive Shaft, with 1 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438 | Front drive shaft dust boot assembly | 04428-0R051 |
| 04438A | Front drive shaft inner universal joint dust boot assembly | 04438-0R050 |
| 41336D | Right front driveshaft dust cover | 41336-0R020 |
| 41336E | Left front driveshaft dust cover | 41336-0R020 |
| 43410 | Right front driveshaft assembly | 43420-0R091 · 43420-0R092 |
| 43410N | Hole snap ring (for right front driveshaft) | 43425-07040 |
| 43411E | Inner shaft snap ring (for right front axle inner drive shaft) | 43425-07020 |
| 43412B | Inner shaft snap ring (for left front axle inner drive shaft) | 43425-07020 |
| 43420 | Left front drive shaft assembly | 43420-0R091 · 43420-0R092 |
| 43420G | Hole snap ring (for left front driveshaft) | 43425-07040 |
| 43447C | Clamp (for the outer universal joint dust cover of the right front axle) | 42345-07080 |
| 43447D | No. 2 clip (for the universal joint dust cover on the outside of the right front axle) | 42345-07070 |
| 43447E | Clamp (for left front axle outer universal joint dust cover) | 42345-07080 |
| 43447F | No. 2 clip (for left front axle outer universal joint dust cover) | 42345-07070 |
| 43448C | Clamp (for the universal joint dust cover inside the right front axle) | 42345-07060 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 42345-07050 |
| 43448F | Clamp (for left front axle inner universal joint dust cover) | 42345-07060 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 42345-07050 |
