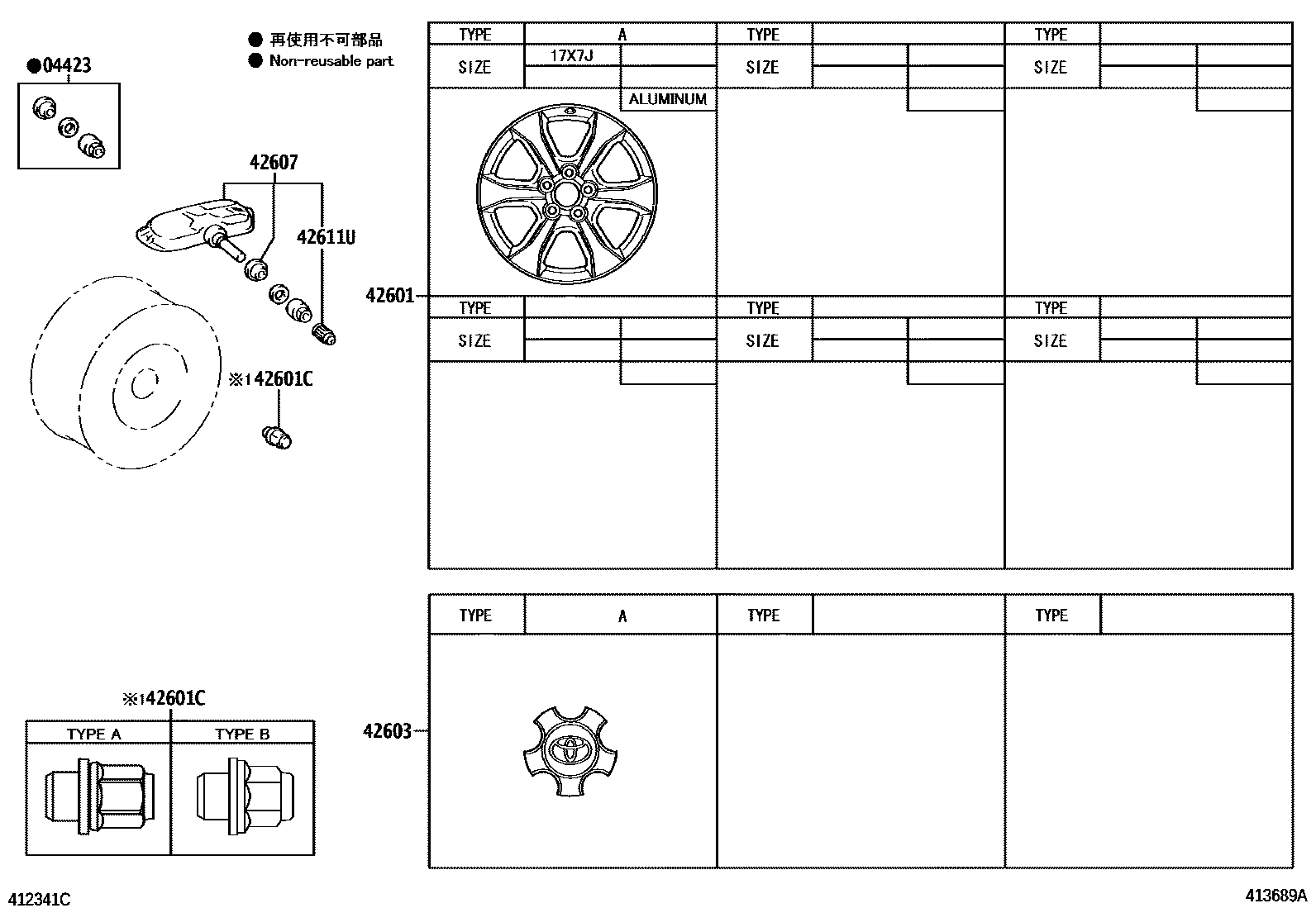

Toyota RAV4 车轮和车轮盖 — Figure 4103
Toyota RAV4 EPC diagram 4103, 车轮和车轮盖, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04423 | Tire pressure monitoring valve or balancer valve mounting assembly | 04423-0E010 |
| 42601 | spoke wheel | 42611-0R030 |
| 42601C | Hub nut (for axle) | 90084-94001 · 90942-01033 |
| 42603 | Wheel hub decorative parts sub-assembly | 4260B-0R020 |
| 42607 | Tire pressure monitoring valve sub-assembly | 42607-06011 |
| 42611U | tire valve cover | 90942-A5002 |
