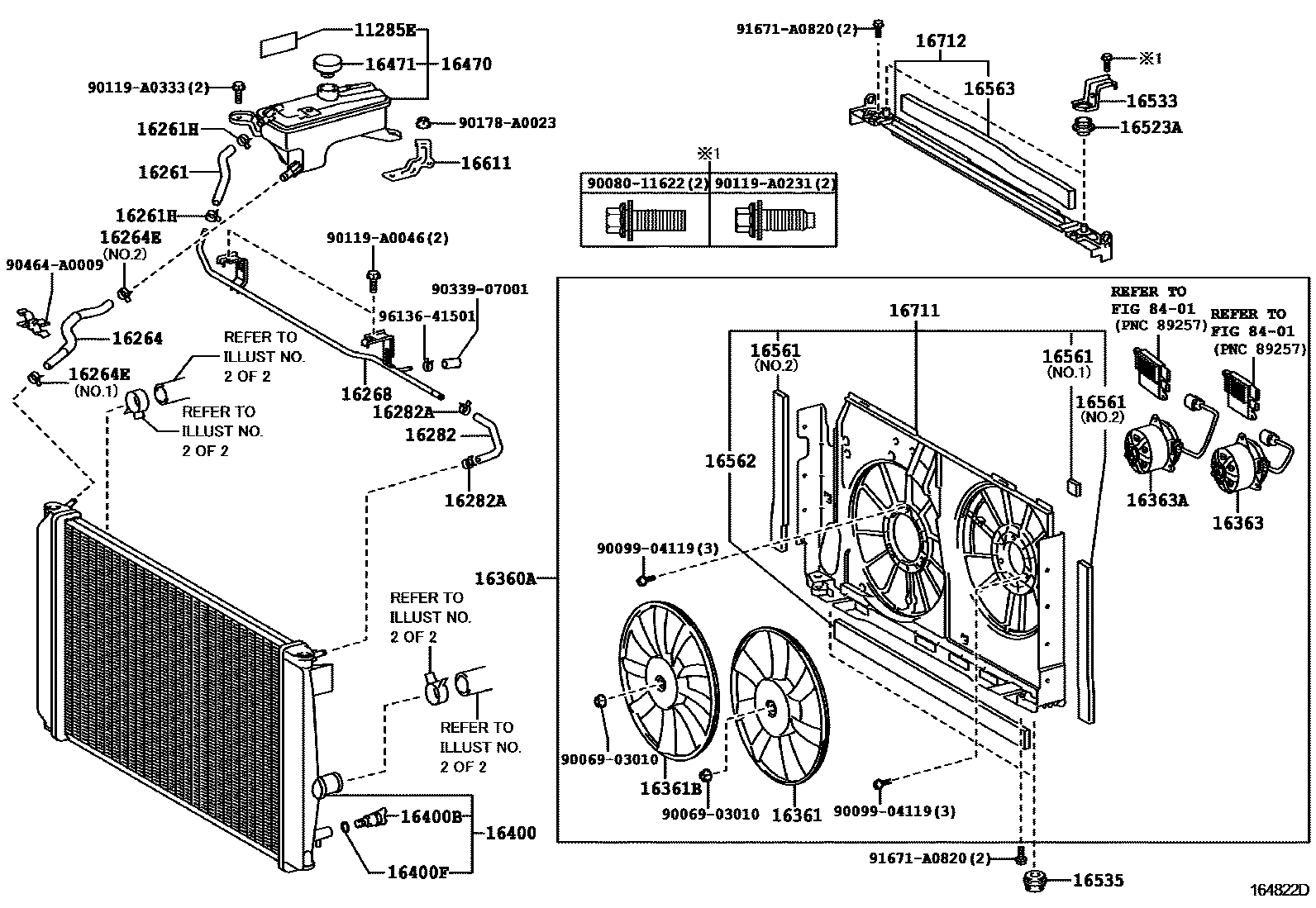

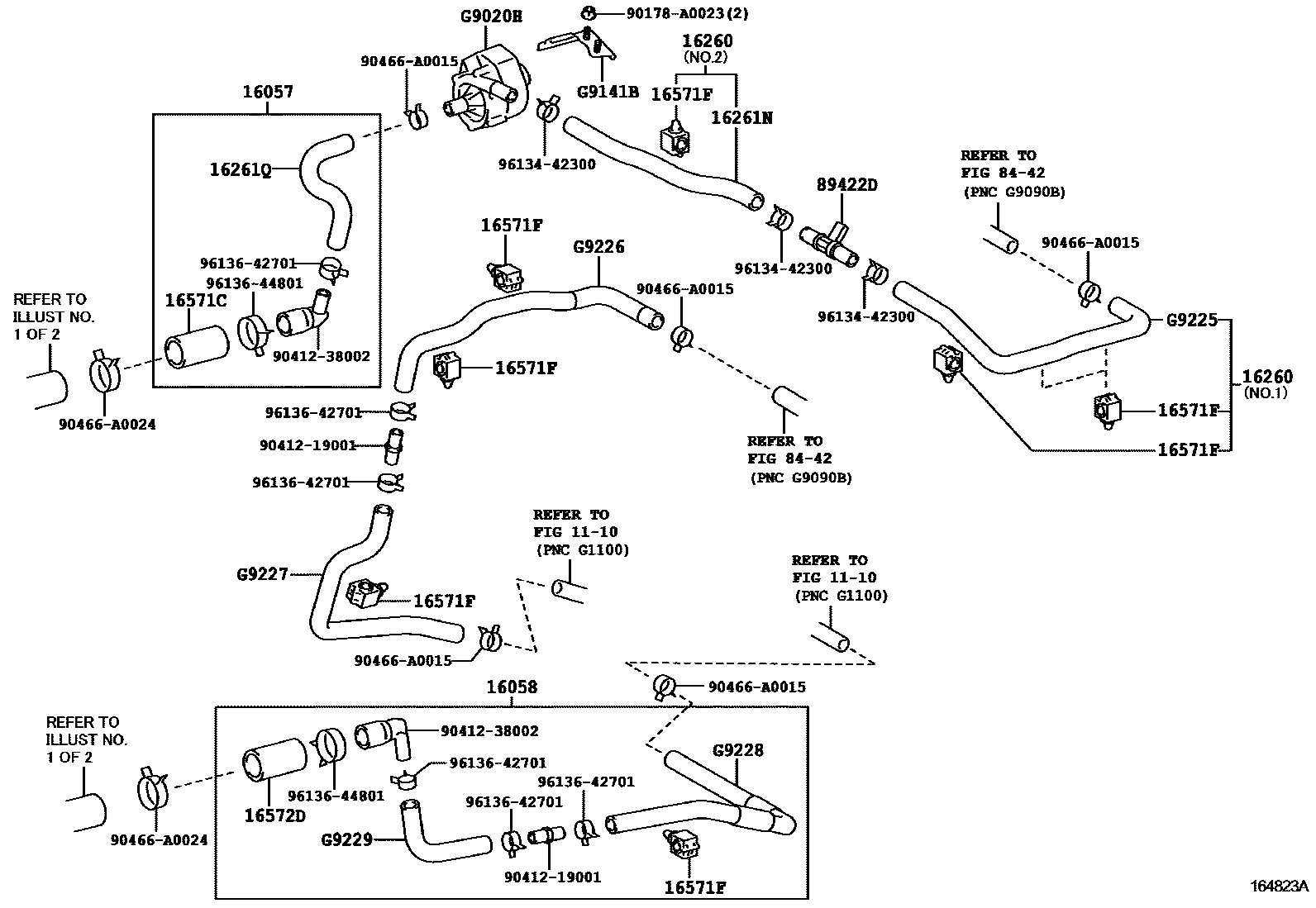

Toyota RAV4 RADIATOR & WATER OUTLET — Figure 1603
Toyota RAV4 EPC diagram 1603, RADIATOR & WATER OUTLET, with 2 images and 43 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11285E | Coolant system information label | 11285-0Z010 |
| 16057 | Radiator hose sub-assembly | G9380-0R040 |
| 16058 | No. 2 radiator hose sub-assembly | G9380-0R050 |
| 16260 | Water bypass hose assembly | G90A0-0R010 · G9390-0R030 |
| 16261 | HOSE, WATER BY-PASS | 16261-28070 |
| 16261H | CLIP, WATER BY-PASS HOSE NO.1 | 90467-15022 |
| 16261N | HOSE, WATER BY-PASS, NO.2 | G9392-0R020 |
| 16261Q | HOSE, WATER BY-PASS | G9391-0R020 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-0Z030 |
| 16264E | CLIP, WATER BY-PASS HOSE NO.2 | 90467-15022 · 96134-51700 · 96136-41901 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-31011 |
| 16282 | HOSE, WATER BY-PASS, NO.5 | 16282-28120 |
| 16282A | Clip or clip (for No. 5 water bypass hose) | 90467-15022 |
| 16360A | Fan assembly with motor | 16360-0Z010 |
| 16361 | Fan | 16361-0P130 |
| 16361B | Fan No. 2 | 16361-0P140 |
| 16363 | cooling fan motor | 16363-31120 |
| 16363A | Cooling fan motor No. 2 | 16363-31130 |
| 16400 | Radiator assembly | G9010-0R020 |
| 16400B | Radiator drain switch screw plug | 16417-21280 |
| 16400F | Seal (for radiator drain switch) | 16492-21050 |
| 16470 | Radiator reservoir assembly | 16470-0Z010 |
| 16471 | Liquid storage tank cover sub-assembly | G9258-47011 |
| 16523A | Radiator bracket cushion | 16523-28030 |
| 16533 | Radiator upper bracket | 16533-28030 |
| 16535 | Radiator lower support | 16535-0A090 |
| 16561 | Seal No. 1 (radiator to bracket) | 16561-0P050 · 16561-0V030 |
| 16562 | Seal No. 2 (radiator to bracket) | 16562-0Z010 |
| 16563 | Seal No. 3 (radiator to bracket) | 16563-0Z010 |
| 16571C | Radiator hose No. 1 | G9381-0R020 |
| 16571F | Clamps or clips (for water hoses) | 87124-12081 |
| 16572D | Radiator hose No. 2 | G9381-0R020 |
| 16611 | Radiator reservoir bracket | 16611-0Z030 |
| 16711 | fan cover | 16711-0Z010 |
| 16712 | No. 2 fan cover | 16712-0Z010 |
| 89422D | water temperature sensor | 89422-0R010 |
| G9020H | Water pump assembly with motor and bracket | G9020-0R010 |
| G9141B | EV water pump bracket | G9141-0R010 |
| G9225 | No. 1 inverter cooling hose | G9225-0R010 |
| G9226 | No. 2 inverter cooling hose | G9226-0R010 |
| G9227 | No. 3 inverter cooling hose | G9227-0R010 |
| G9228 | No. 4 inverter cooling hose | G9228-0R010 |
| G9229 | No. 5 inverter cooling hose | G9229-0R010 |
