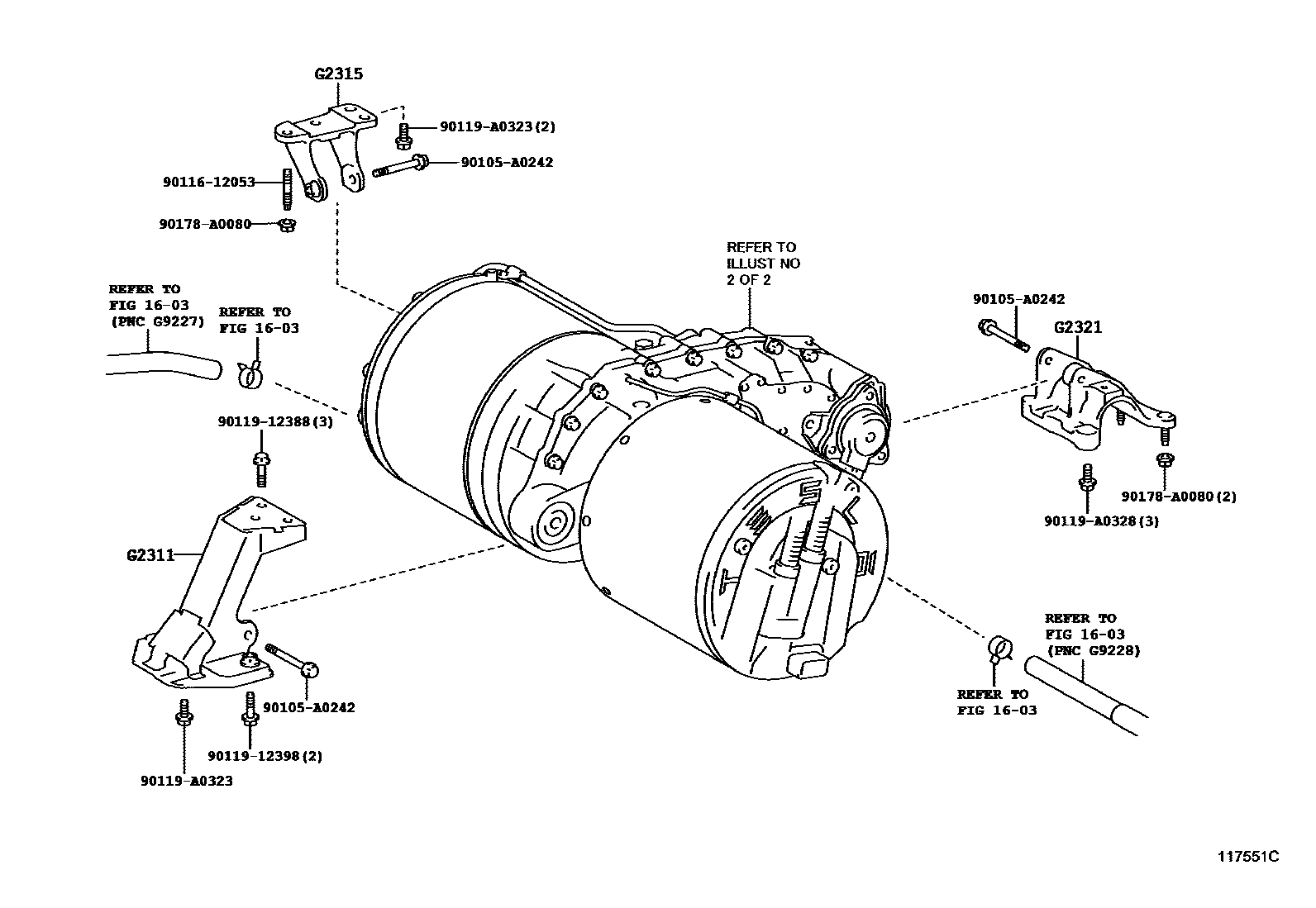

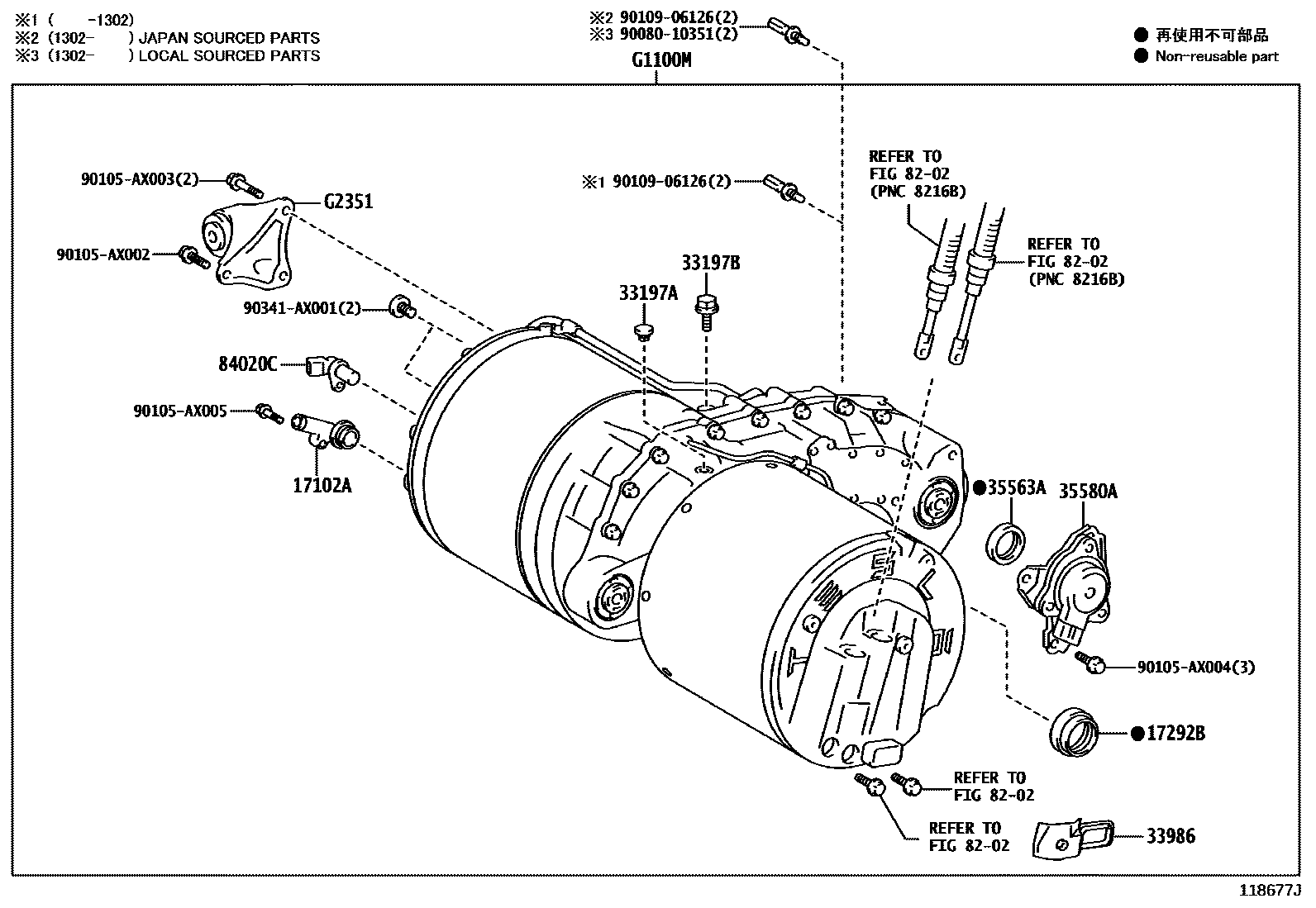

Toyota RAV4 EV马达 — Figure 1110
Toyota RAV4 EPC diagram 1110, EV马达, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17102A | SOUS-ENSEMBLE MANIFOLD | 17102-0Z010 |
| 17292B | GARNITURE, MECANIQUE | 17292-0Z010 |
| 33197A | AERATEUR, TRANSMISSION, NO.1 | 33197-0R010 |
| 33197B | AERATEUR, TRANSMISSION, NO.2 | 33197-0R020 |
| 33986 | COUVERCLE, MOTEUR VEHICULE ELECTRIQUE | 33986-0R010 |
| 35563A | Shift control actuator seal | 35563-75010 |
| 35580A | Shift control actuator assembly | 35580-42010 |
| 84020C | ENSEMBLE CIRCUIT, INTERRUPTEUR | 84020-0R010 |
| G1100M | ENS. MOTEUR, TRACTION DU VEHICULE ELECTRIQUE | G1100-0R011 · G1100-0R012 |
| G2311 | Motor front mounting bracket | G2311-0R010 |
| G2315 | Motor right mounting bracket | G2315-0R010 |
| G2321 | Motor rear mounting bracket | G2321-0R010 |
| G2351 | AMORTISSEUR, MONTAGE DU MOTEUR | G2351-0R011 · G2351-0R012 |
