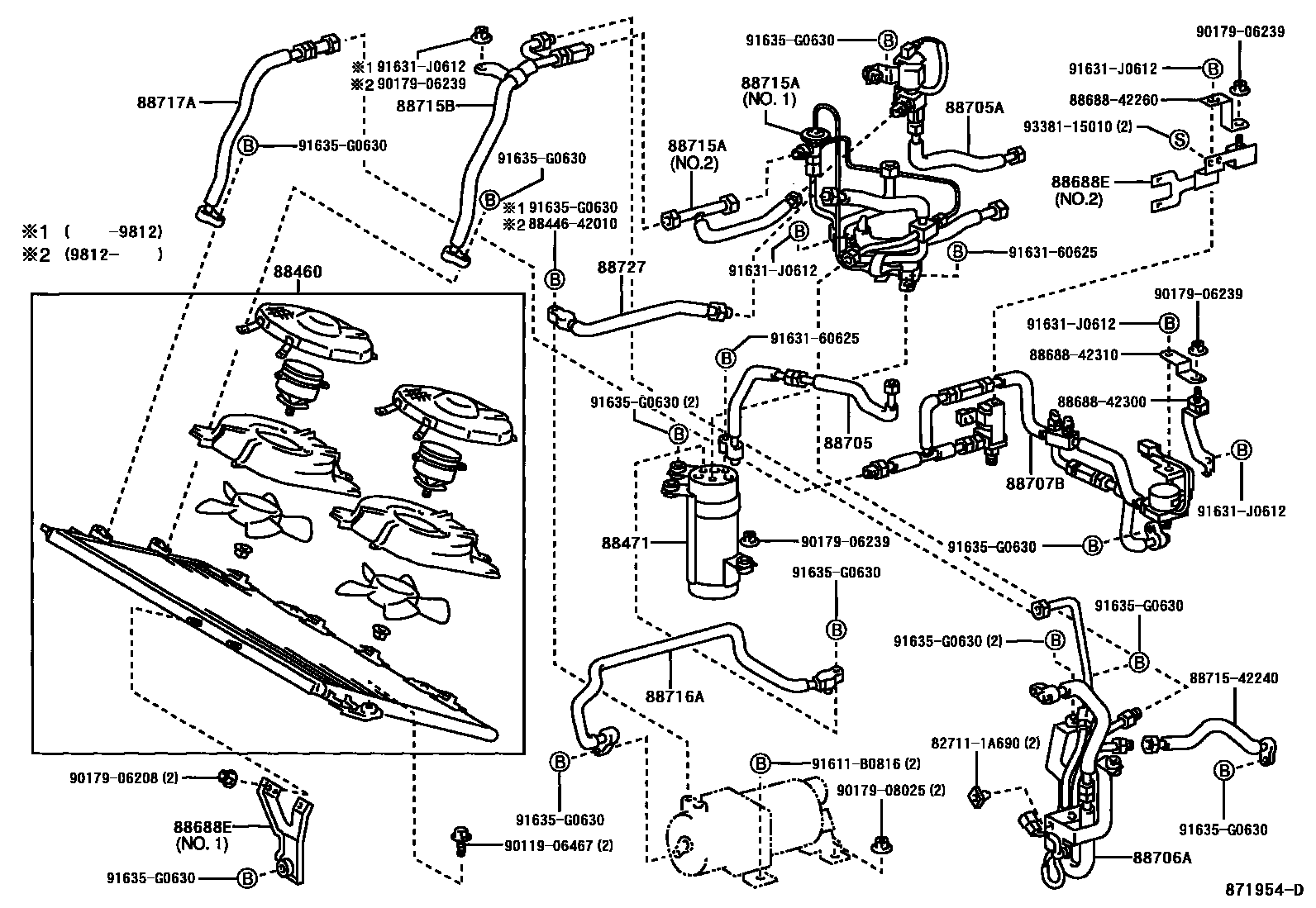

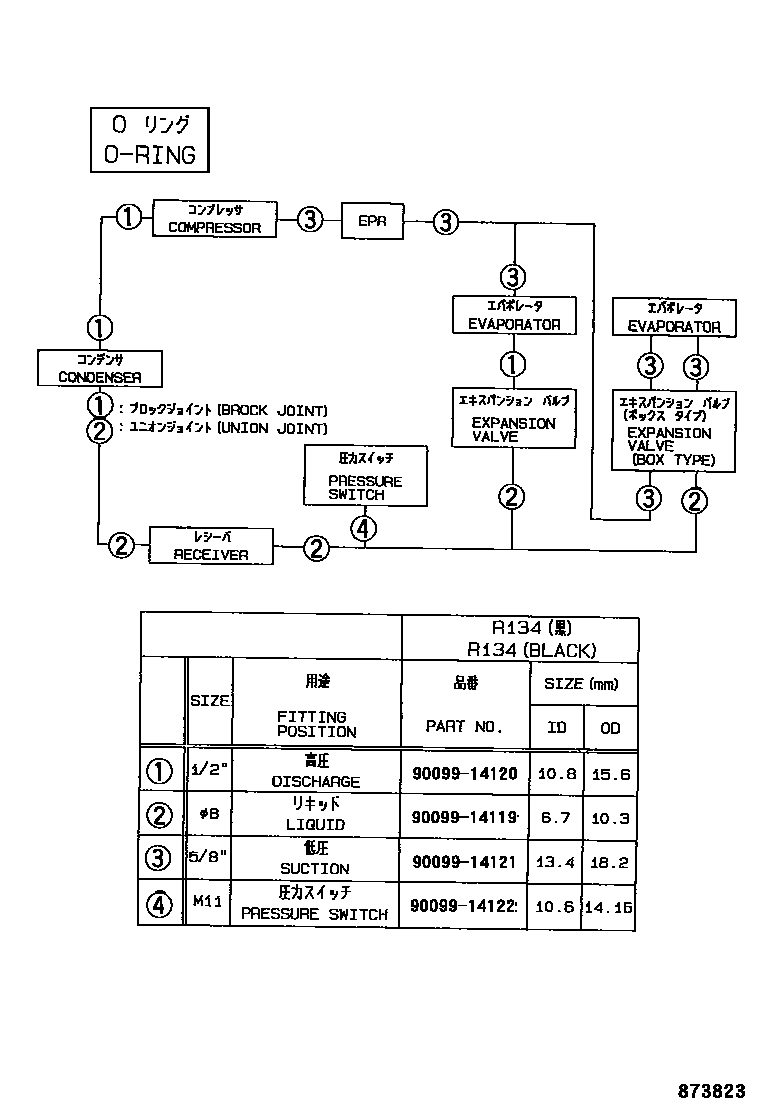

Toyota RAV4 Heating & Air Conditioning - Cooler Piping — Figure 8718
Toyota RAV4 EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88460 | Air conditioning condenser assembly | 88460-42040 |
| 88471 | Air conditioning fluid storage tank | 88470-42070 |
| 88688E | Cooler No. 1 refrigerant hose bracket | 88688-42220 · 88688-42340 |
| 88705 | Discharge pipe sub-assembly | 88705-42060 |
| 88705A | Discharge pipe sub-assembly | 88705-42070 |
| 88706A | Liquid pipe A sub-assembly | 88706-42110 · 88706-42111 · 88706-42250 |
| 88707B | Suction pipe B sub-assembly | 88707-42040 |
| 88715A | Cooler refrigerant discharge pipe A | 88707-42060 · 88715-42070 |
| 88715B | Cooler refrigerant discharge pipe B | 88715-42080 · 88715-42081 · 88715-42270 · 88715-42290 |
| 88716A | Cooler refrigerant liquid pipe A | 88716-42120 |
| 88717A | Cooler refrigerant suction pipe A | 88717-42140 · 88717-42150 |
| 88727 | Suction tube No. 2 | 88727-42040 |
