Toyota RAV4 后视镜 — Figure 8701

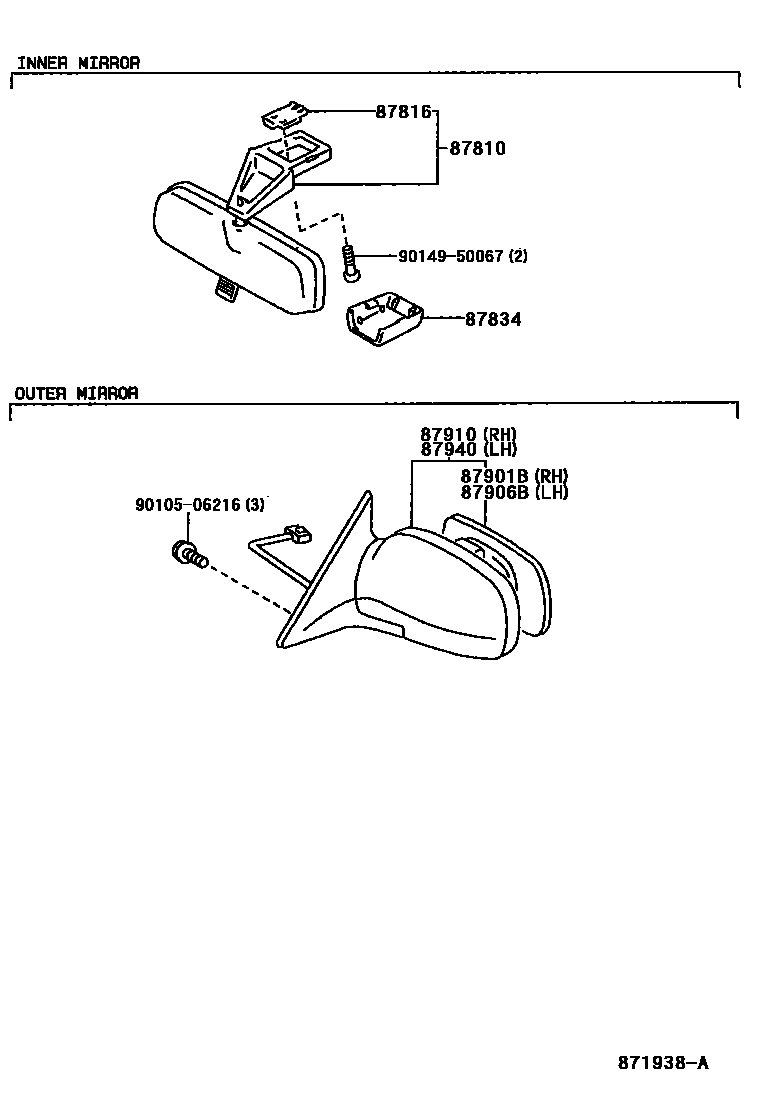

Toyota RAV4 EPC diagram 8701, 后视镜, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87816 | Interior rearview mirror spring | 74372-01020 · 74372-30030 |
| 87901B | Right exterior rearview mirror sub-assembly | 87931-42150 |
| 87906B | Left exterior rearview mirror sub-assembly | 87961-42180 |
| 87910 | Right exterior rearview mirror assembly | 87910-42160 |
| 87940 | Left exterior rearview mirror assembly | 87940-42190 |
