Toyota RAV4 antenna — Figure 8604

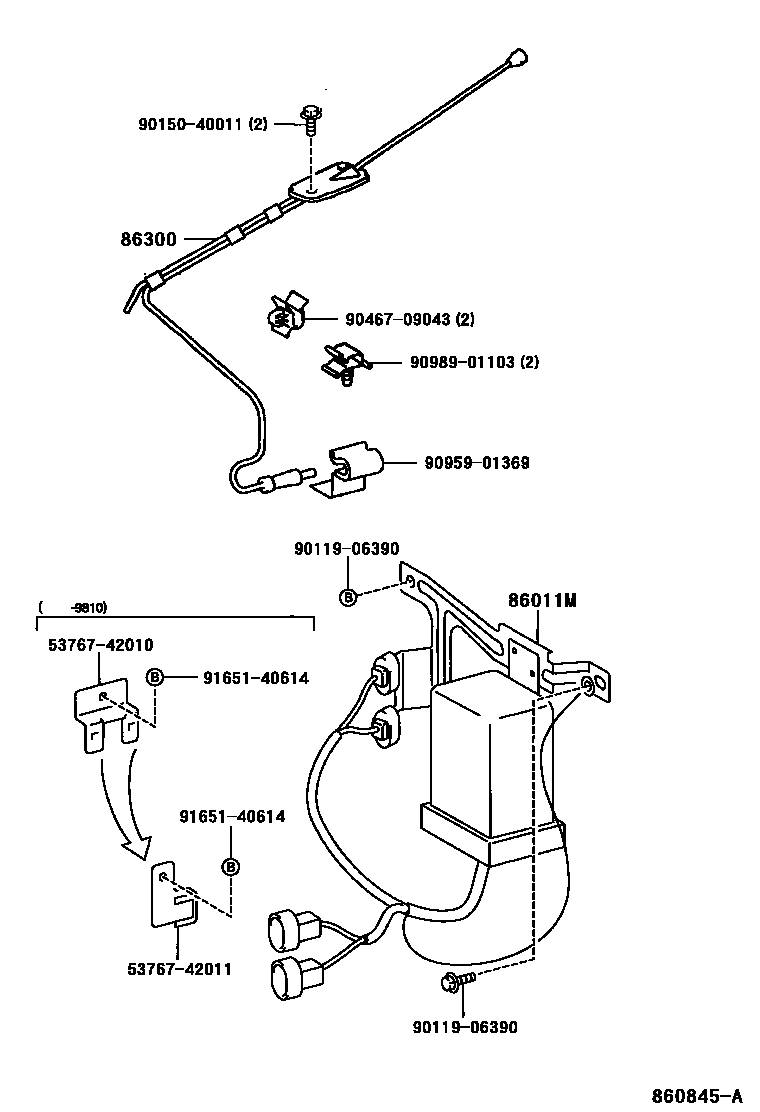

Toyota RAV4 EPC diagram 8604, antenna, with 1 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86011M | Noise filter | G9898-42020 |
| 86300 | Antenna assembly with fixing parts | 86300-42040 |
Toyota RAV4 EPC diagram 8604, antenna, with 1 images and 2 PNC and OE references.
| PNC | Part name | OE numbers |
|---|---|---|
| 86011M | Noise filter | G9898-42020 |
| 86300 | Antenna assembly with fixing parts | 86300-42040 |
