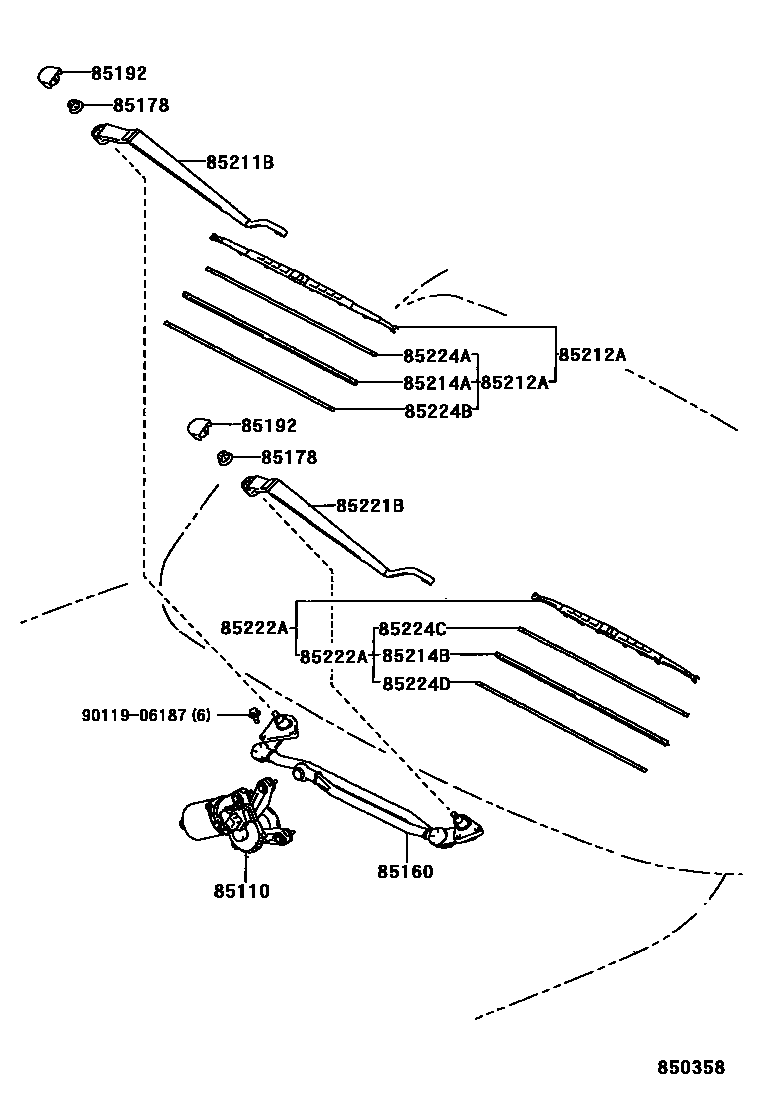

Toyota RAV4 挡风玻璃刮水器 — Figure 8501
Toyota RAV4 EPC diagram 8501, 挡风玻璃刮水器, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110 | Windshield wiper motor assembly | 85110-42031 · 85110-42040 |
| 85160 | Windshield wiper connecting rod assembly | 85150-42050 · 85150-42060 |
| 85178 | Nut (for securing front wiper arm) | 90179-08113 |
| 85192 | windshield wiper arm cover | 85292-12020 |
| 85211B | Right front wiper arm | 85211-42060 |
| 85212A | Right front wiper blade | 85212-60090 |
| 85214A | Right wiper rubber strip | 85214-60060 |
| 85214B | Left wiper rubber strip | 85214-42020 |
| 85221B | Left front wiper arm | 85221-42050 |
| 85222A | Left front wiper blade | 85222-42040 |
| 85224A | No. 1 wiper rubber strip back plate | 85224-60100 |
| 85224B | No. 2 wiper rubber strip back plate | 85224-60100 |
| 85224C | No. 3 wiper rubber strip back plate | 85224-10210 |
| 85224D | No. 4 wiper rubber strip back plate | 85224-10210 |
