Toyota RAV4 逆变器冷却系统 — Figure 8432

Toyota RAV4 EPC diagram 8432, 逆变器冷却系统, with 5 images and 60 PNC and OE references.

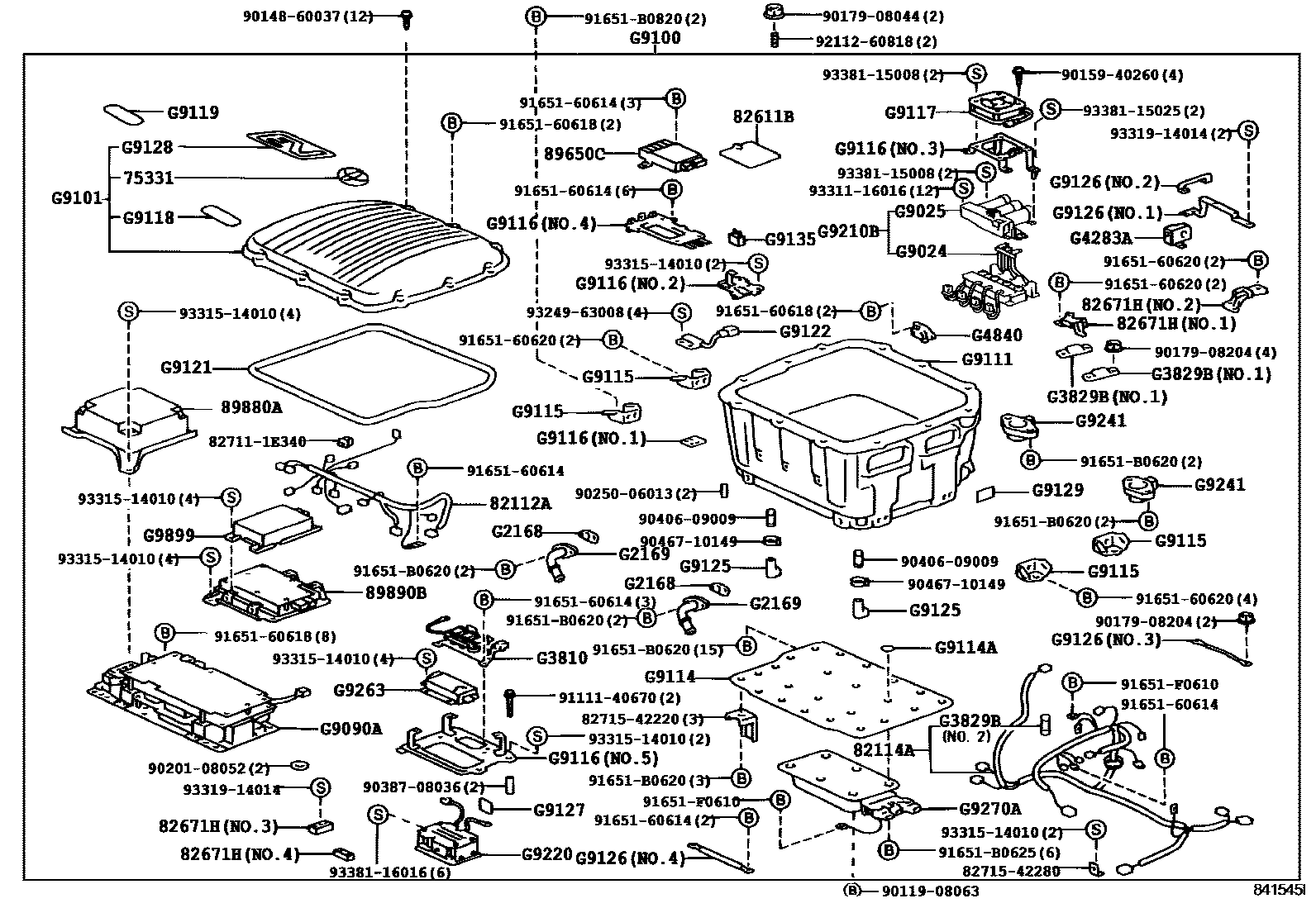

Toyota RAV4 逆变器冷却系统 EPC diagram — 841545I
逆变器冷却系统 — 841545I (199709 – 999999)

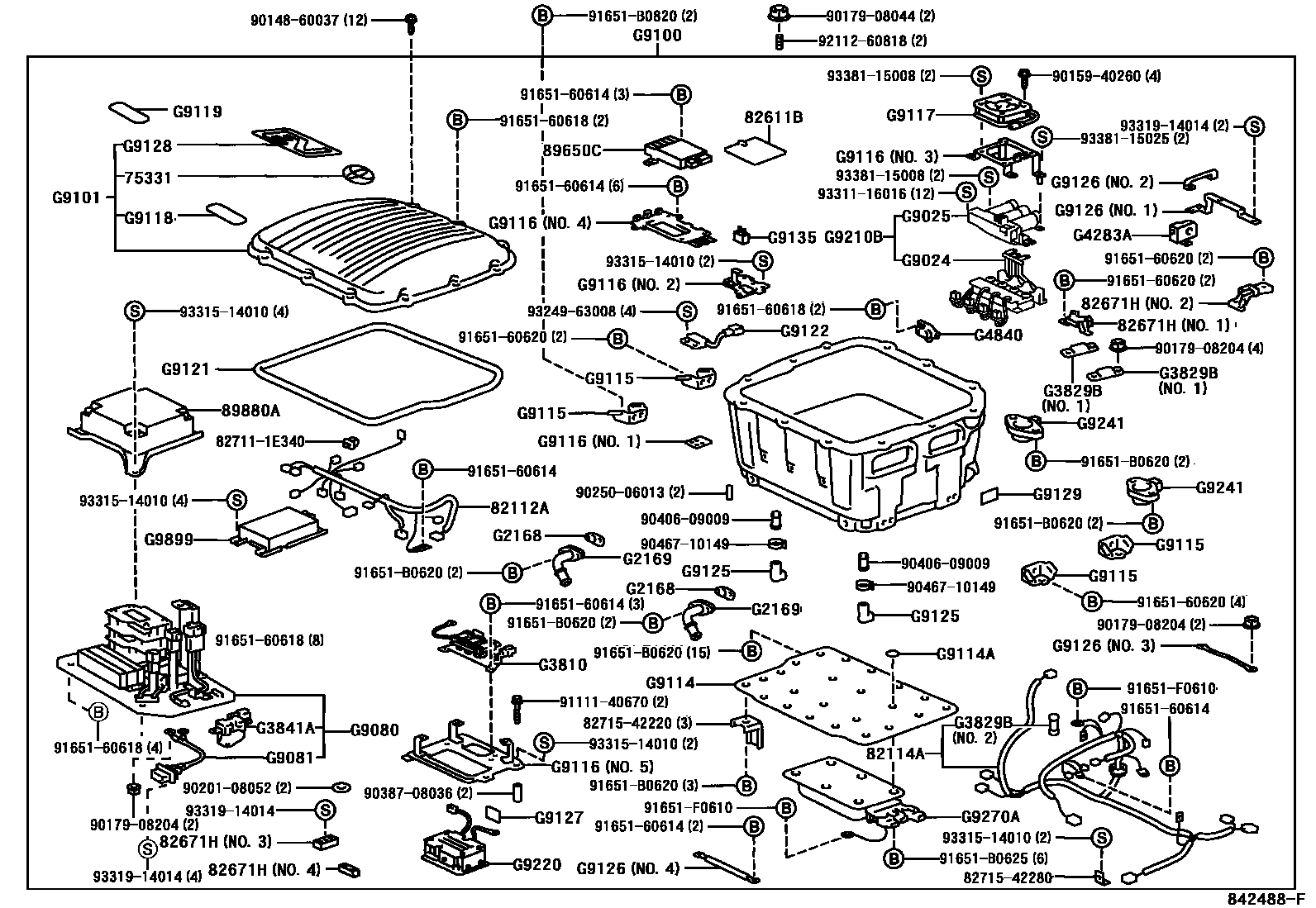

Toyota RAV4 逆变器冷却系统 EPC diagram — 842488F
逆变器冷却系统 — 842488F (199810 – 200209)

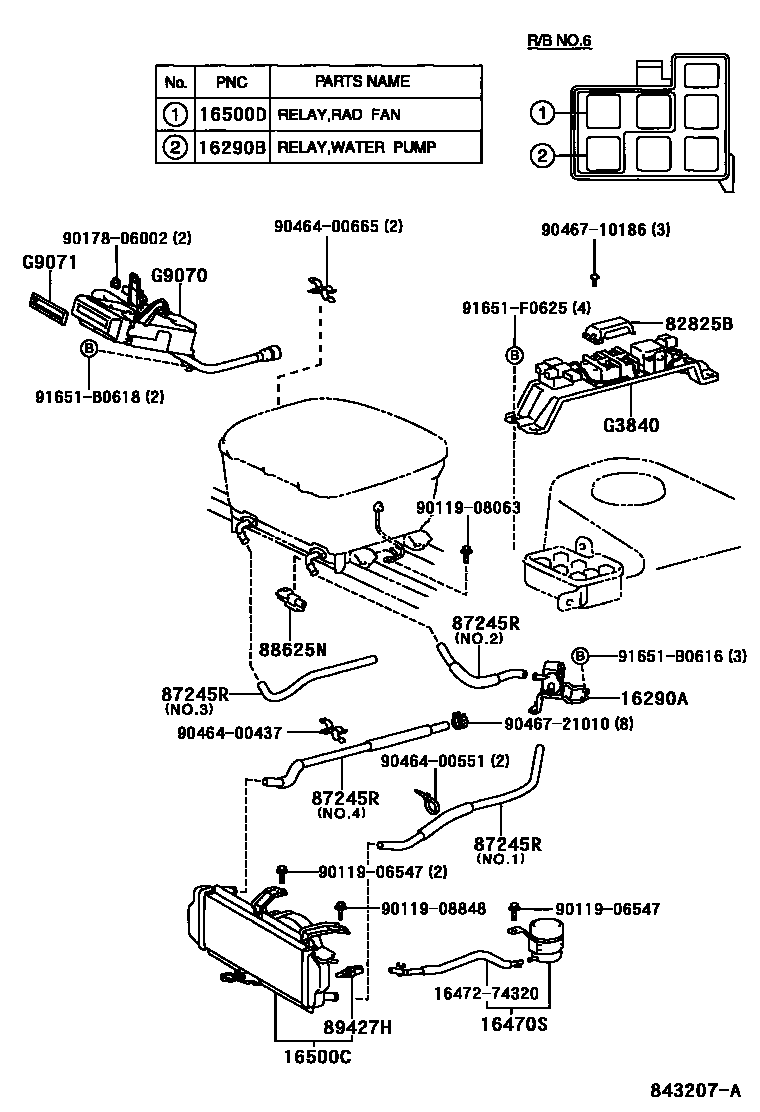

Toyota RAV4 逆变器冷却系统 EPC diagram — 843207A
逆变器冷却系统 — 843207A (199709 – 999999)

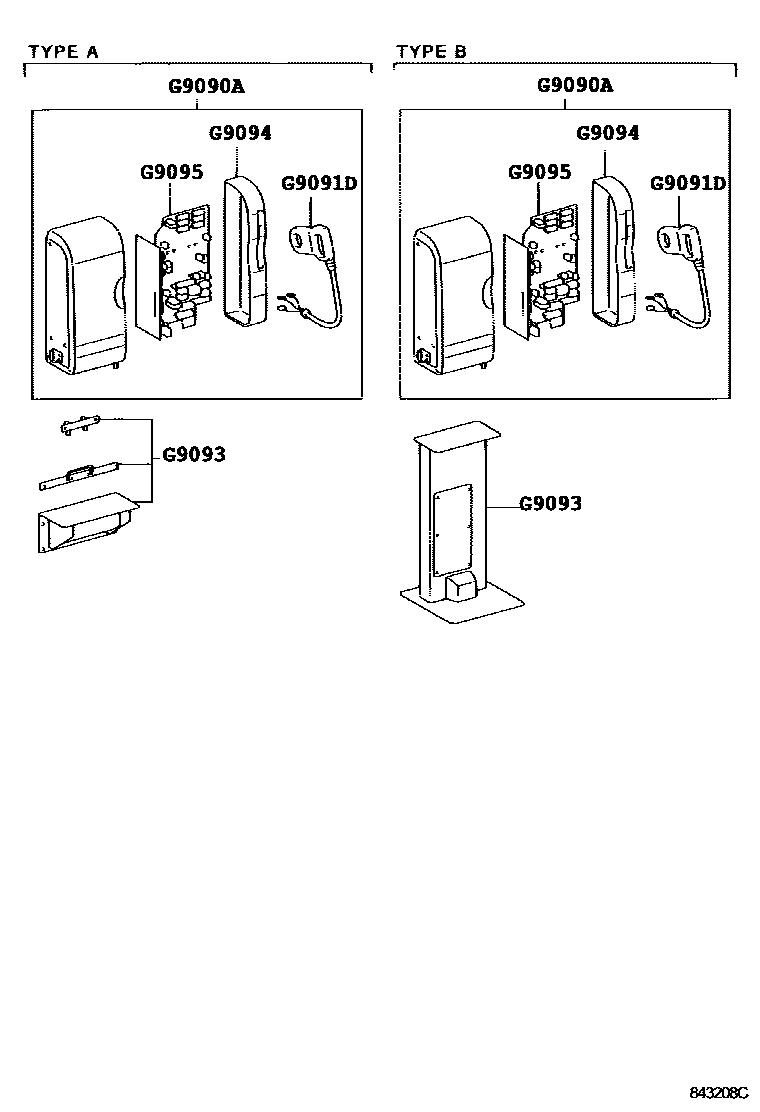

Toyota RAV4 逆变器冷却系统 EPC diagram — 843208C
逆变器冷却系统 — 843208C (199911 – 999999)

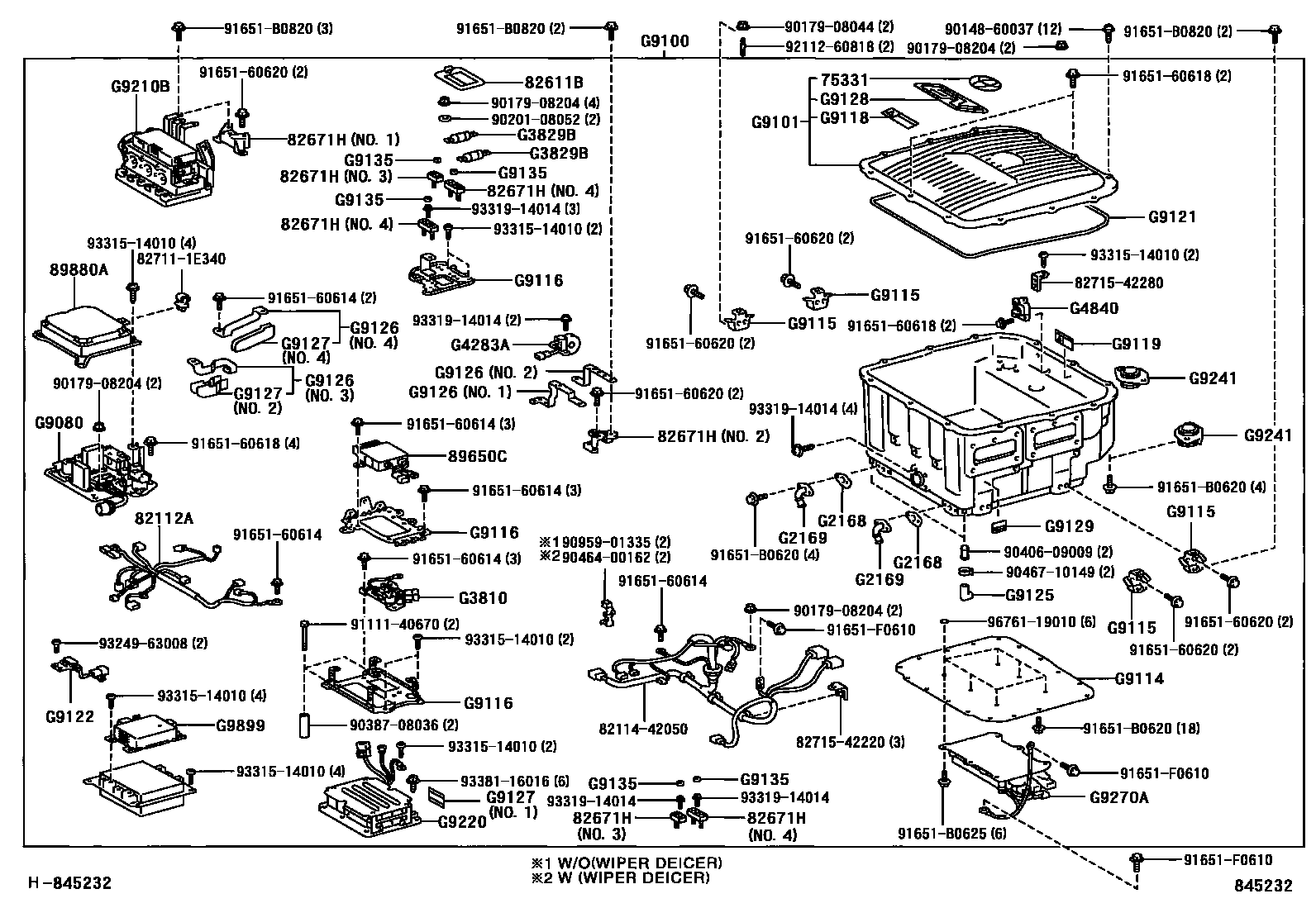

Toyota RAV4 逆变器冷却系统 EPC diagram — 845232
逆变器冷却系统 — 845232 (200209 – 999999)

PNC and OE references

PNCPart nameOE numbers
16290AWater pump assembly with motor and bracketG9020-42010 · G9020-42020 · G9020-42040
16290BRelay (for water pump)90987-02009
16470SRadiator reservoir assembly16470-74320
16500CSub-radiator assembly with fanG9010-42010
16500DRelay (for radiator fan)90987-04003
75331engine cover plate75331-95D00
82112AEngine room wiring harness No. 282112-42020 · 82112-42030 · 82112-42040 · 82112-42050
82114AEngine room wiring harness No. 482114-42020 · 82114-42040 · 82114-42060
82611Bfuse box cover82611-42030 · 82611-42031
82671Hjunction box82671-42010 · 82671-42020 · 82671-42031 · 82671-42041
82825Brelay cover82825-42011
87245Rwater hose87245-42150 · 87245-42160 · 87245-42170 · 87245-42180
88625Nthermistor88625-32170 · 88625-32171
89427HTemperature switch (for radiator fan)89427-42010
89650CPower steering ECU assembly89650-42020
89880AElectric vehicle control ECU assembly89880-42020 · 89880-42021 · 89880-42022 · 89880-42023
89890BBattery ECU assembly89890-42040 · 89890-42041 · 89890-42042
G2168Generator water jacket joint gasketG2168-47010
G2169Electric vehicle device controller connectorG2169-47010
G3810Conductor relay assemblyG3810-42010 · G3810-42020
G3829BElectric vehicle fuseG3829-42010 · G3829-42070
G3840Electric vehicle relay assemblyG3840-42030
G3841AElectric Vehicle Charger RelayG3841-28010 · G3841-42080
G4283Abattery current sensorG4283-42010
G4840Circuit breaker sensor assemblyG4840-42020
G9024EV power unit inverter sub-assemblyG9024-42020
G9025EV capacitor device inverter sub-assemblyG9025-42020
G9070EV charger port assemblyG9070-42010 · G9070-42020
G9071EV charger sealG9071-42010 · G9071-42020
G9080EV charger rectifier assemblyG9080-42010 · G9080-42020
G9081Electric vehicle charger cableG9081-42010
G9090AElectric vehicle charger assemblyG9090-42020 · G9090-42030
G9091DElectric vehicle charger cable sub-assemblyG9091-42060
G9093Electric vehicle charger mounting componentsG9093-42040 · G9093-42050
G9094Electric vehicle charger coverG9094-42010
G9095Electric vehicle charger board componentsG9095-42010
G9100Electric vehicle device controller assemblyG9100-42070 · G9100-42071 · G9100-42072 · G9100-42100 · G9100-42101 · G9100-42110 · G9100-42120
G9101Electric vehicle device controller cover sub-assemblyG9101-42021 · G9101-42022 · G9101-42030
G9111Electric vehicle device controller housingG9111-42030 · G9111-42031
G9114Electric vehicle device controller lower coverG9114-42020 · G9114-42030
G9114AO-ring (for mounting controller cover)96761-19010
G9115Electric Vehicle Device Controller BracketG9115-42010
G9116Electric Vehicle Device Controller BracketG9116-42010 · G9116-42060 · G9116-42070 · G9116-42080 · G9116-42090 · G9116-42100
G9117Electric vehicle device controller fanG9117-42020
G9118No. 1 Electric Vehicle Device Controller Warning LabelG9118-42010 · G9118-42011
G9119No. 2 Electric Vehicle Device Controller Warning LabelG9119-42010 · G9119-42011
G9121Electric Vehicle Unit Controller Cover GasketG9121-42021
G9122Electric vehicle device controller switchG9122-42010 · G9122-42020
G9125Electric vehicle unit controller discharge hoseG9125-42020
G9126Electric vehicle device controller terminalsG9126-42060 · G9126-42071 · G9126-42081 · G9126-42100 · G9126-42110 · G9126-42120
G9127Insulating sheetG9127-42050 · G9127-42080 · G9127-42090
G9128Electric vehicle device controller nameplateG9128-42010
G9129Electric vehicle device controller nameplateG9129-42010
G9135stopperG9135-42010
G9210BElectric vehicle motor control inverter assemblyG9210-42020 · G9210-42030
G9220Air conditioning inverter assemblyG9220-42030 · G9220-42031
G9241Electric vehicle power circuit connectorG9241-42030
G9263Electric Vehicle Charger FilterG9263-42020
G9270AElectric vehicle converter assemblyG9270-42030 · G9270-42040
G9899Ground fault and glass heating controllerG9899-42020 · G9899-42021 · G9899-42022 · G9899-42030
