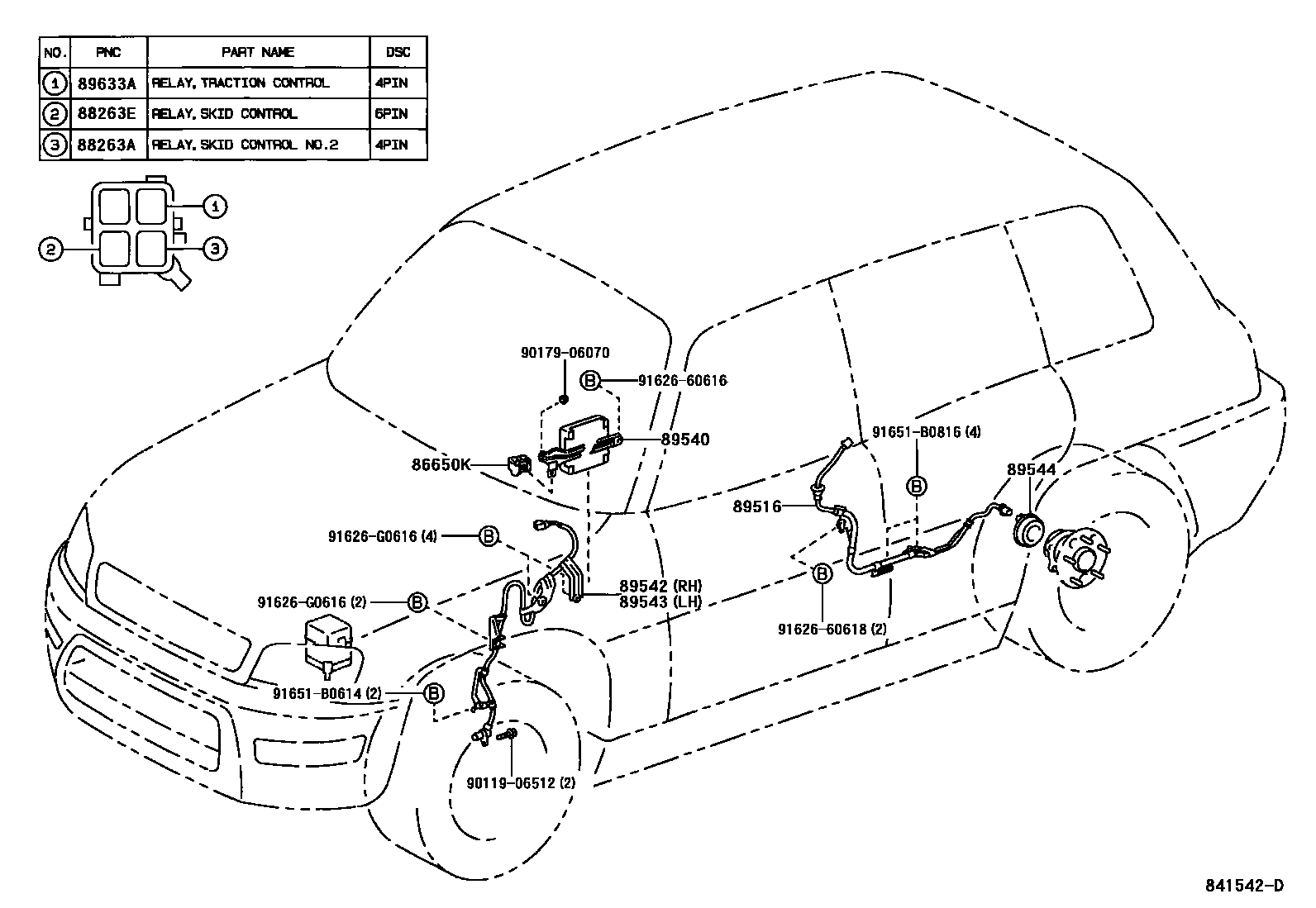

Toyota RAV4 ABS 和 VSC — Figure 8414
Toyota RAV4 EPC diagram 8414, ABS 和 VSC, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86650K | Anti-skid control buzzer assembly | 86650-26070 |
| 88263A | Anti-skid control relay | 88263-24020 |
| 88263E | No. 2 anti-skid control relay | 88263-24030 |
| 89516 | Anti-skid control sensor wiring harness | 89516-42010 · 89516-42020 |
| 89540 | Anti-skid control ECU assembly | 89540-42090 · 89540-42091 |
| 89542 | Right front wheel speed sensor | 89542-42030 |
| 89543 | Left front wheel speed sensor | 89543-42030 |
| 89544 | Anti-skid control sensor | 89544-42010 |
| 89633A | Traction control relay or VSC relay | 89633-24010 |
