Toyota RAV4 开关和继电器和ECU — Figure 8401

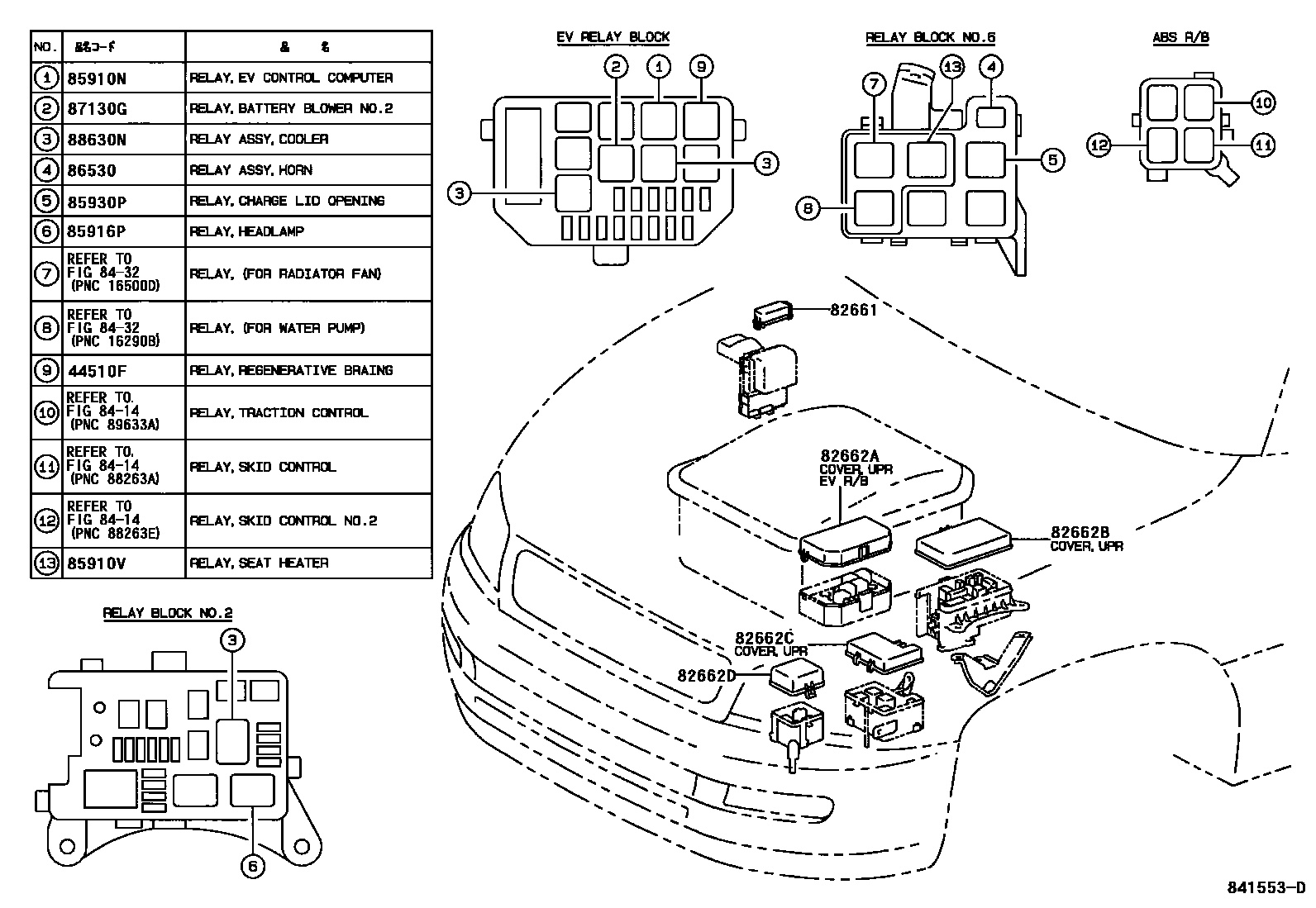

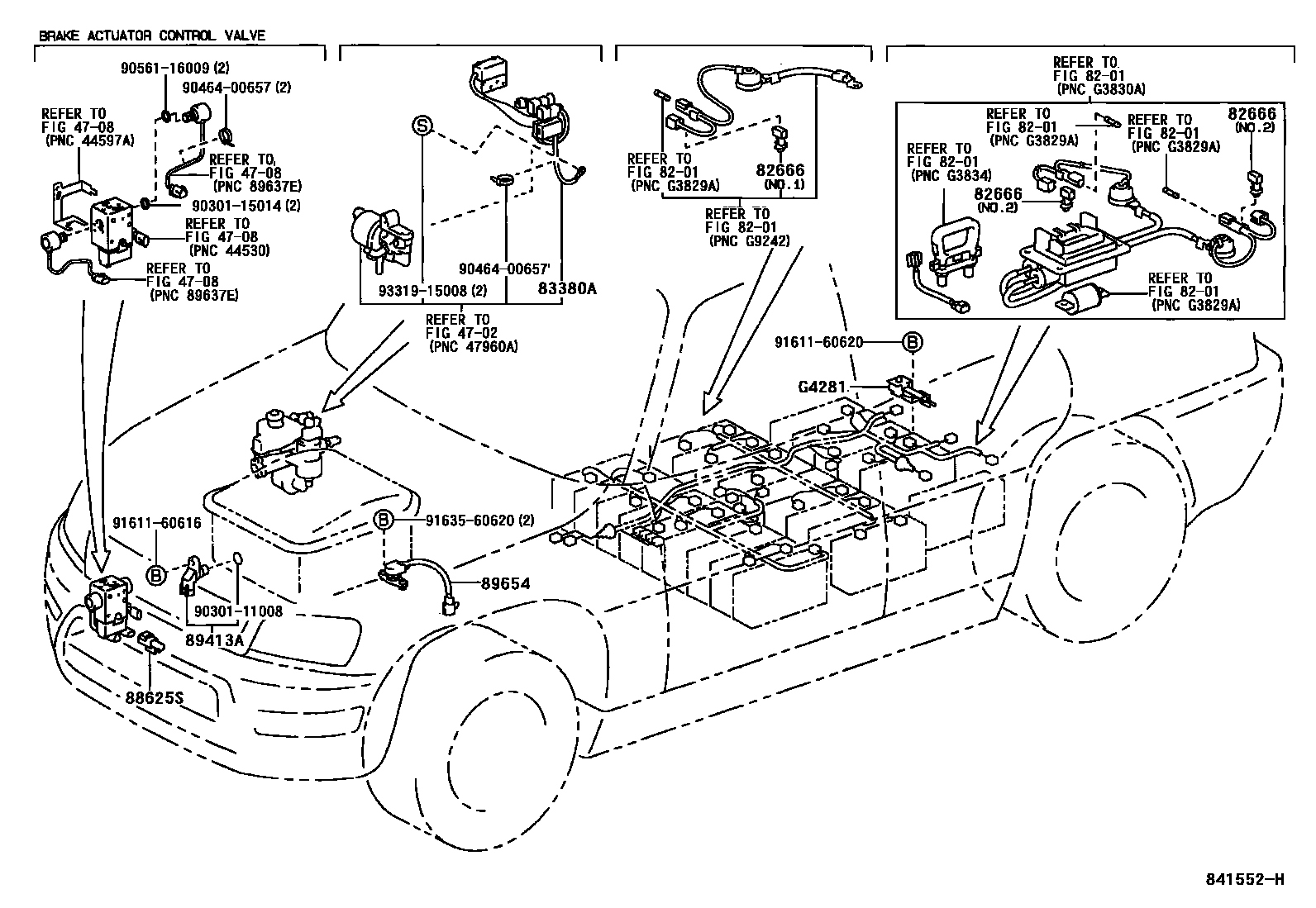

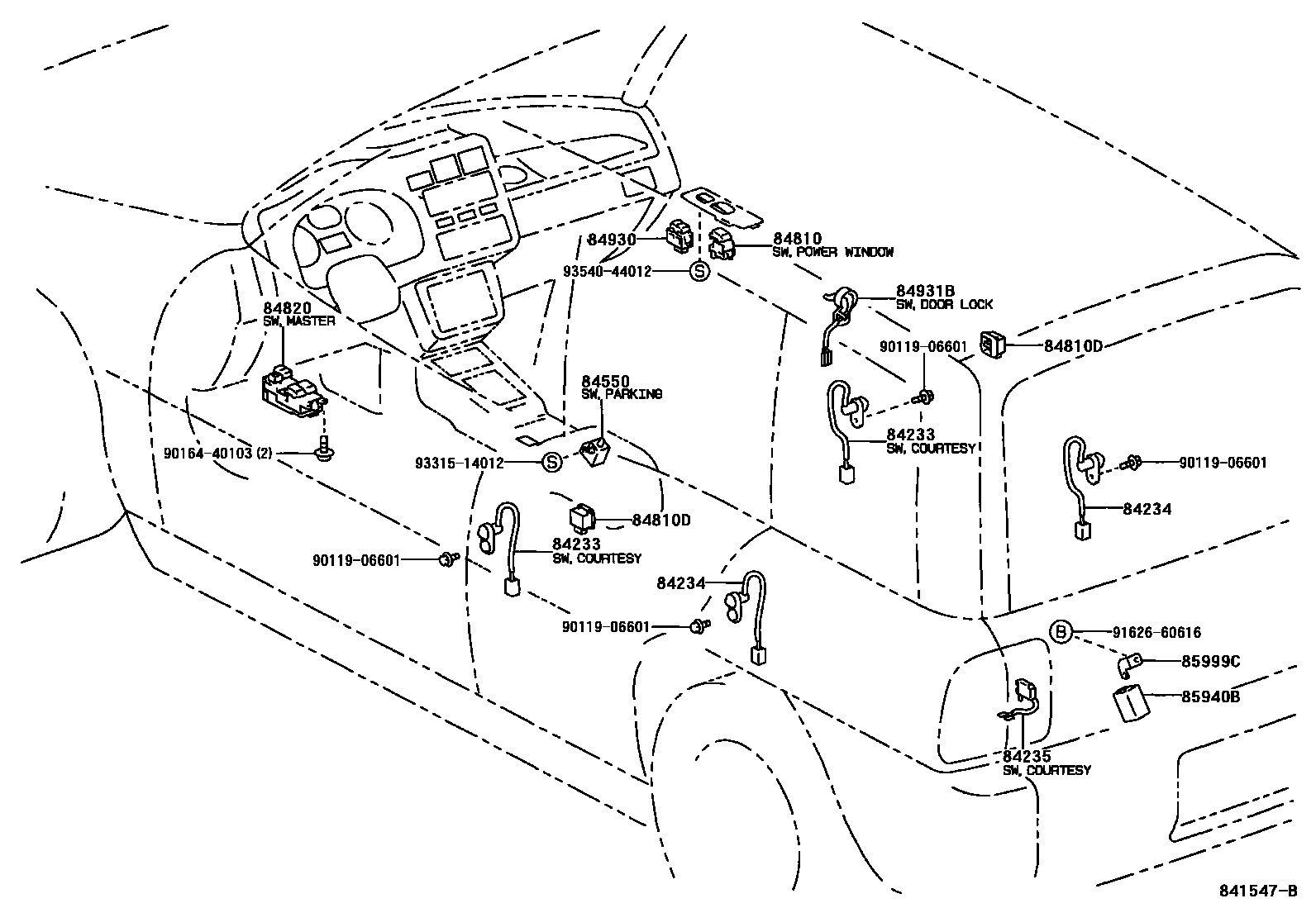

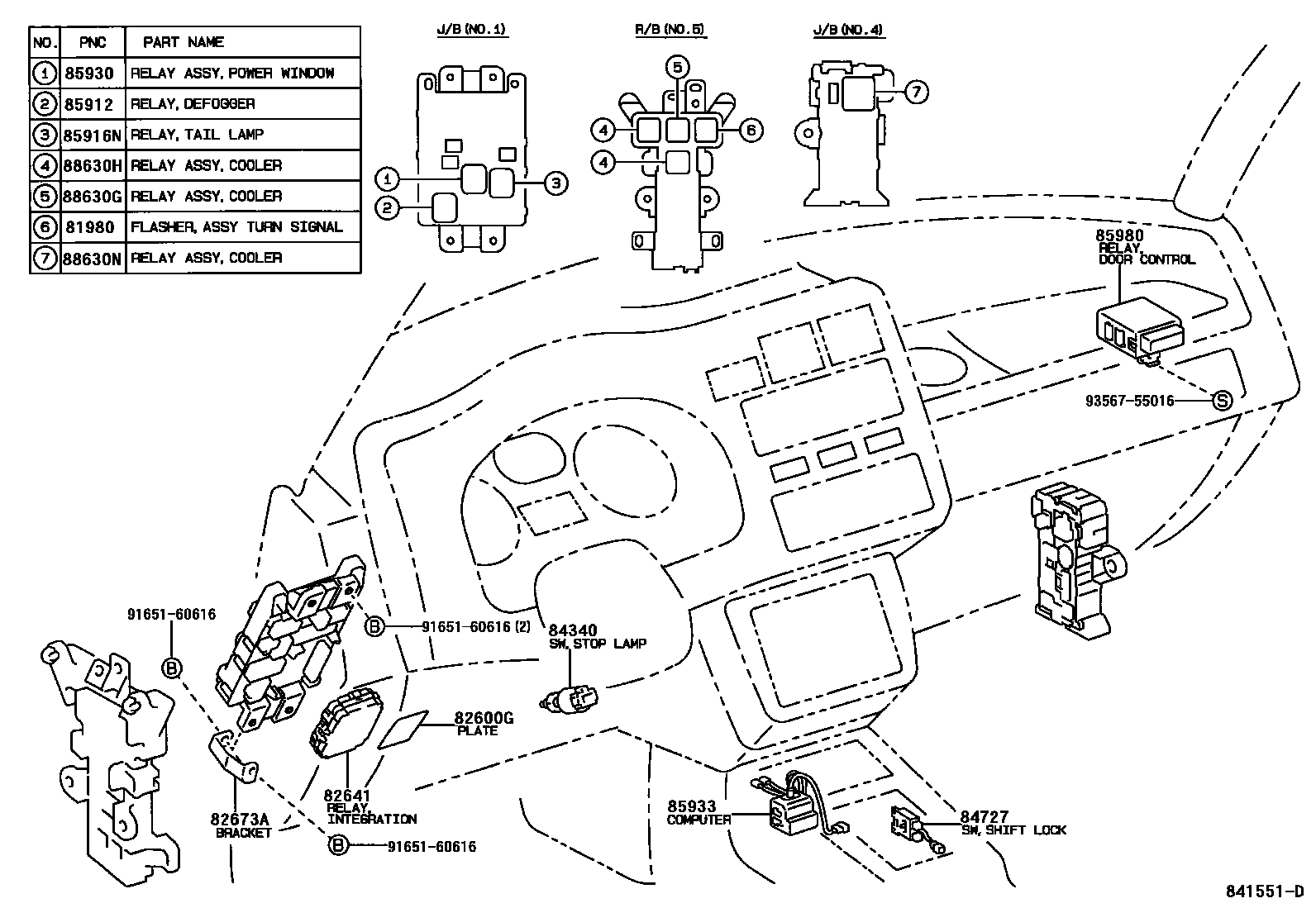

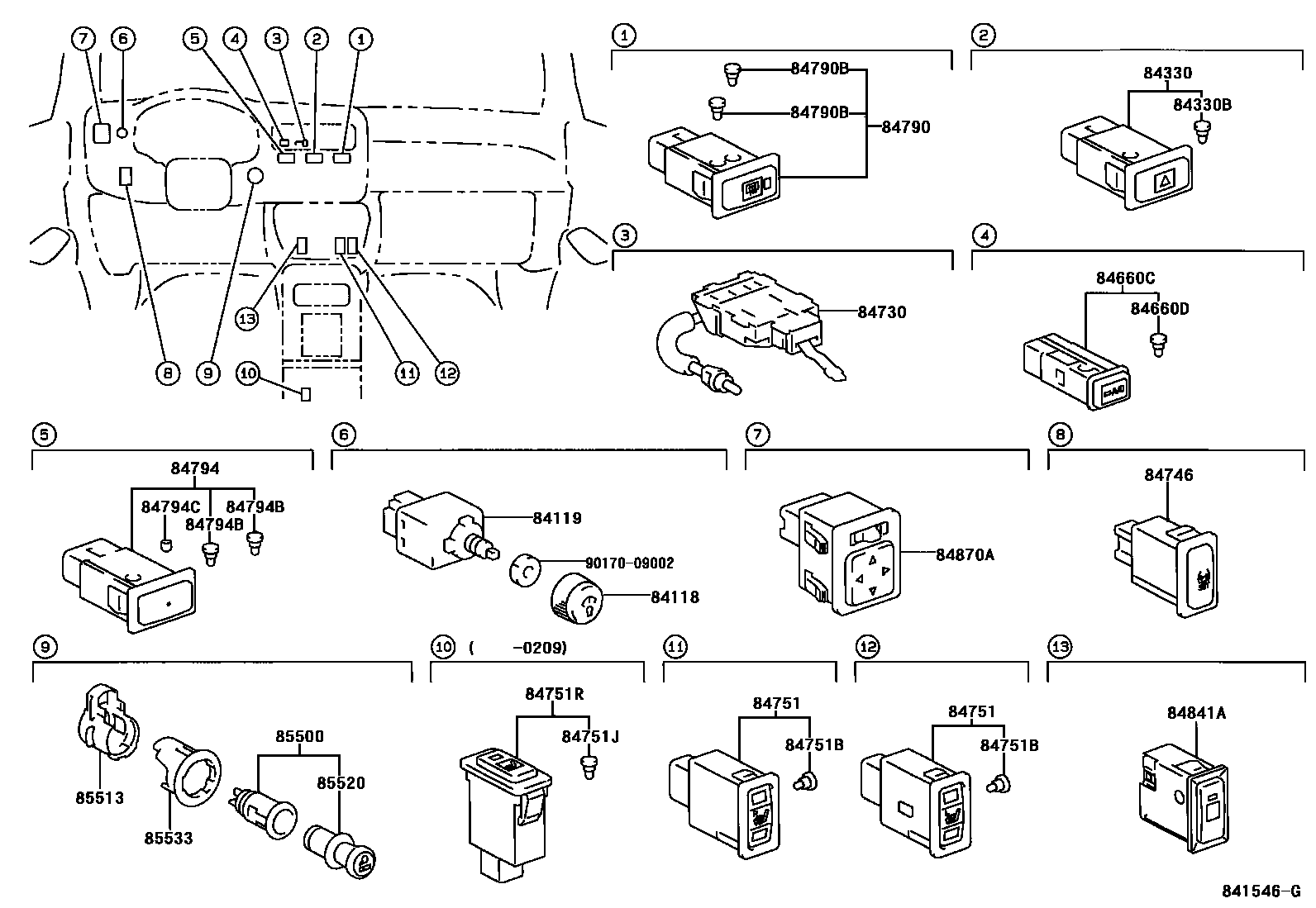

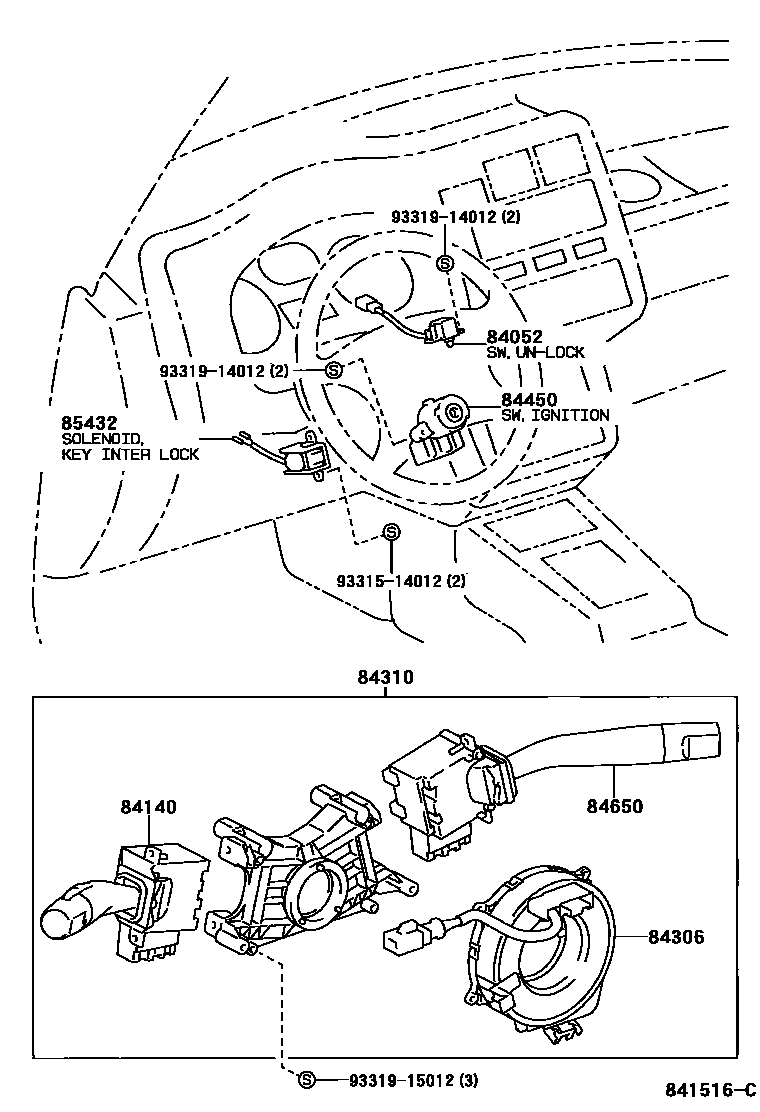

Toyota RAV4 EPC diagram 8401, 开关和继电器和ECU, with 6 images and 71 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44510F | Relay (for regenerative braking system) | 90987-02009 |
| 81980 | Turn signal flasher relay assembly | 81980-12070 |
| 82600G | Warning nameplate (for fuses) | 82683-42060 |
| 82641 | Integrated relay No. 1 | 82641-20141 |
| 82661 | No. 1 relay box cover | 82661-42020 |
| 82662A | No. 1 relay box upper cover | 82662-42100 · 82662-42151 |
| 82662B | No. 2 relay box upper cover | 82662-42110 |
| 82662C | No. 3 relay box upper cover | 82662-42120 · 82662-42161 |
| 82662D | No. 4 relay box upper cover | 82662-42130 |
| 82666 | Connector holder | 82666-42020 |
| 82673A | Junction box bracket | 82673-42020 |
| 83380A | Pressure switch assembly | 83380-42010 |
| 84052 | Unlock warning switch assembly | 84052-12070 |
| 84119 | Light control rheostat | 84119-60020 |
| 84140 | Headlight dimmer switch assembly | 84140-44010 |
| 84233 | Door control light switch assembly (for front door) | 84231-32040 |
| 84234 | Door control light switch assembly (for rear door) | 84231-32040 |
| 84235 | Door control light switch assembly (for back door) | 84231-42010 · 84231-42020 |
| 84306 | Spiral cable sub-assembly | 84306-12070 |
| 84310 | Turn signal switch assembly | 84310-42200 |
| 84330 | Hazard warning signal switch assembly | 84332-43010 |
| 84330B | Hazard warning signal switch light bulb | 84999-10860 |
| 84340 | brake light switch assembly | 84340-32090 |
| 84450 | Ignition or starter switch assembly | 84450-42020 |
| 84550 | Parking brake switch assembly | 84550-16060 |
| 84650 | Windshield wiper switch assembly | 84652-42080 |
| 84660C | Cooler switch | 84660-42010 · 84660-42011 |
| 84660D | Light bulb (for cooler switch) | 88607-16010 |
| 84727 | Shift lock control switch | 84727-12040 |
| 84730 | Heater blower switch assembly | 84732-42040 |
| 84746 | tire pressure warning switch | 84746-42010 |
| 84751 | Seat heater switch | 84751-20130 · 84751-20140 |
| 84751B | Seat heater switch light bulb | 84999-10190 |
| 84751J | Seat heater switch bulb (rear) | 84999-10310 |
| 84751R | Seat heater switch (rear) | 84751-42010 |
| 84790 | Rear window defogger switch assembly | 84790-42030 |
| 84790B | Bulb (for rear window defogger switch) | 84999-10310 |
| 84794 | Front wiper de-icer switch | 84794-42010 |
| 84794B | Front wiper de-icer switch bulb | 84999-10320 |
| 84794C | Front wiper de-icer switch bulb cover | 84998-10630 |
| 84810 | Electric window lift switch assembly | 84810-12080 |
| 84820 | Electric window lift main switch assembly | 84820-42060 |
| 84841A | Fuel filler cap opener switch | 84841-42010 |
| 84870A | Exterior rearview mirror switch assembly | 84870-16020 |
| 84930 | Door control switch assembly | 84930-33080 |
| 84931B | door control switch | 84931-10081 · 84931-10100 |
| 85432 | Key interlock solenoid valve | 85432-12020 |
| 85500 | Cigarette lighter assembly | 85500-28050 |
| 85513 | Cigarette lighter cover | 85513-28010 |
| 85520 | Cigarette lighter button and cigarette lighter core assembly | 85520-28010 |
| 85533 | Cigarette lighter indicator lamp shade | 85533-26010 |
| 85910N | EV control ECU relay | 90987-02009 |
| 85910V | seat heater relay | 90987-02009 |
| 85912 | defogger relay | 90987-02009 |
| 85916N | Tail light relay | 90987-02009 |
| 85916P | headlight relay | 90987-02006 |
| 85930 | Electric window relay assembly | 90987-02009 |
| 85930P | Filler cap relay | 90987-03003 |
| 85933 | Shift lock control ECU | 85933-42010 |
| 85940B | Rear wiper relay assembly | 85940-42010 |
| 85980 | Door control relay assembly | 85980-42030 |
| 85999C | No. 3 relay bracket | 85999-42030 |
| 86530 | Speaker relay assembly | 86530-20070 |
| 87130G | No. 2 battery blower relay | 90987-04003 |
| 88625S | Temperature sensor (for tire pressure warning system) | 88625-32170 · 88625-32171 |
| 88630G | Cooler relay assembly | 90987-02006 |
| 88630H | Cooler relay assembly | 90987-02009 |
| 88630N | Cooler relay assembly | 90987-04002 |
| 89413A | Transmission speed sensor | 89413-32010 |
| 89654 | power steering relay | 89654-42010 |
| G4281 | Electric vehicle battery temperature sensor | G4281-42010 · G4281-42011 |
