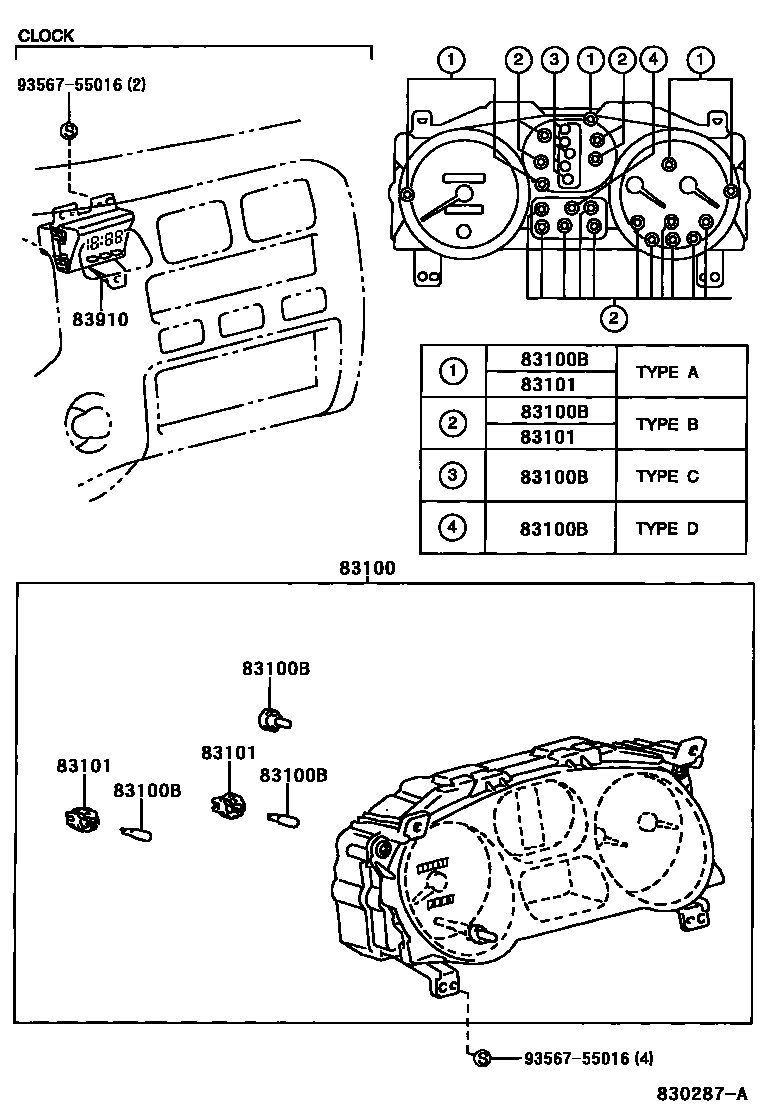

Toyota RAV4 仪表 — Figure 8301
Toyota RAV4 EPC diagram 8301, 仪表, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 83100 | Combined instrument assembly | 83800-42750 |
| 83100B | Combination instrument bulb No. 1 | 83119-24070 · 83119-42010 · 83120-24010 · 90981-11018 |
| 83101 | Combined instrument lamp holder sub-assembly | 83101-14040 · 83101-32020 |
| 83910 | clock assembly | 83910-42010 |
