Toyota RAV4 线束和卡夹 — Figure 8202
Toyota RAV4 EPC diagram 8202, 线束和卡夹, with 6 images and 15 PNC and OE references.

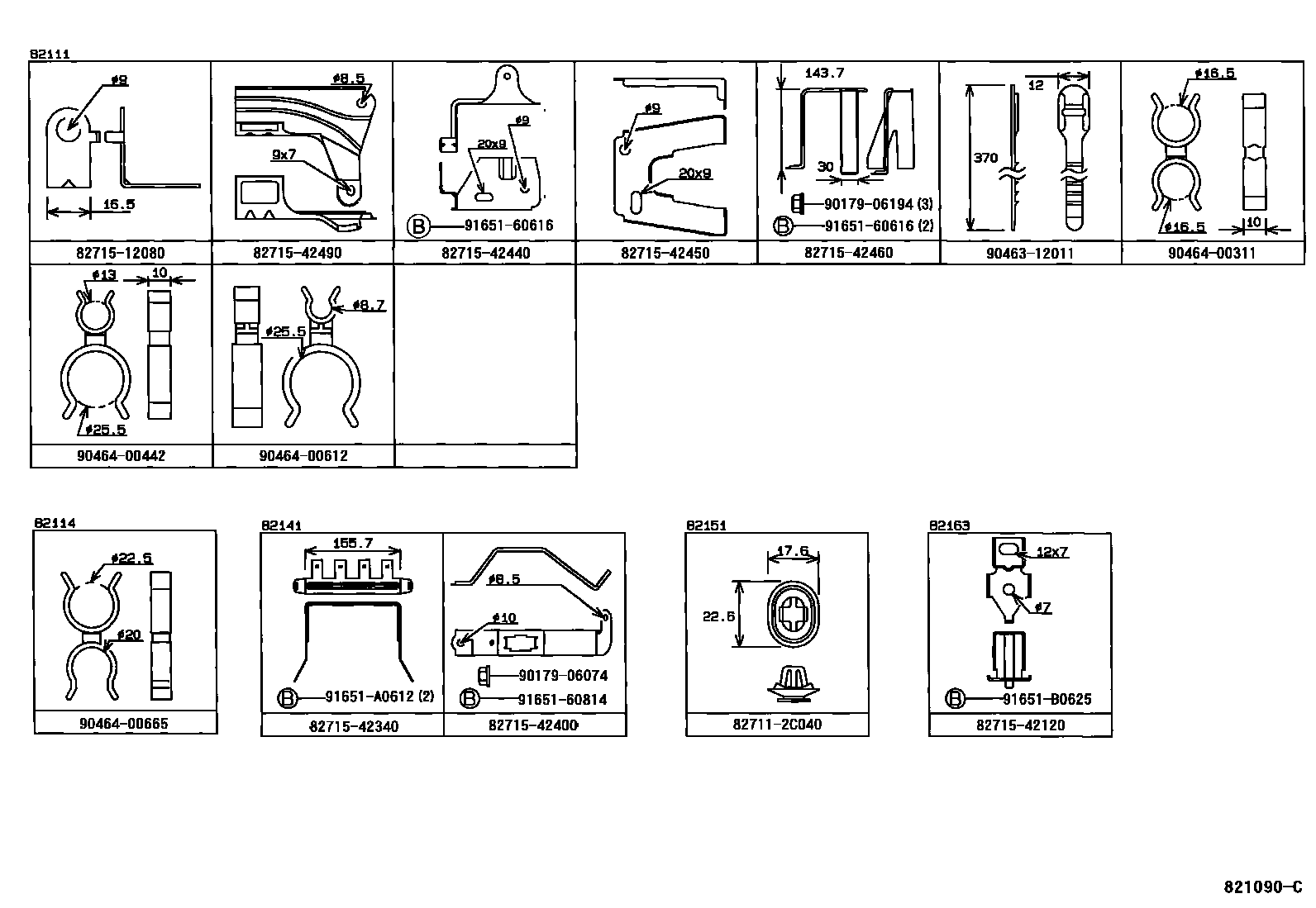

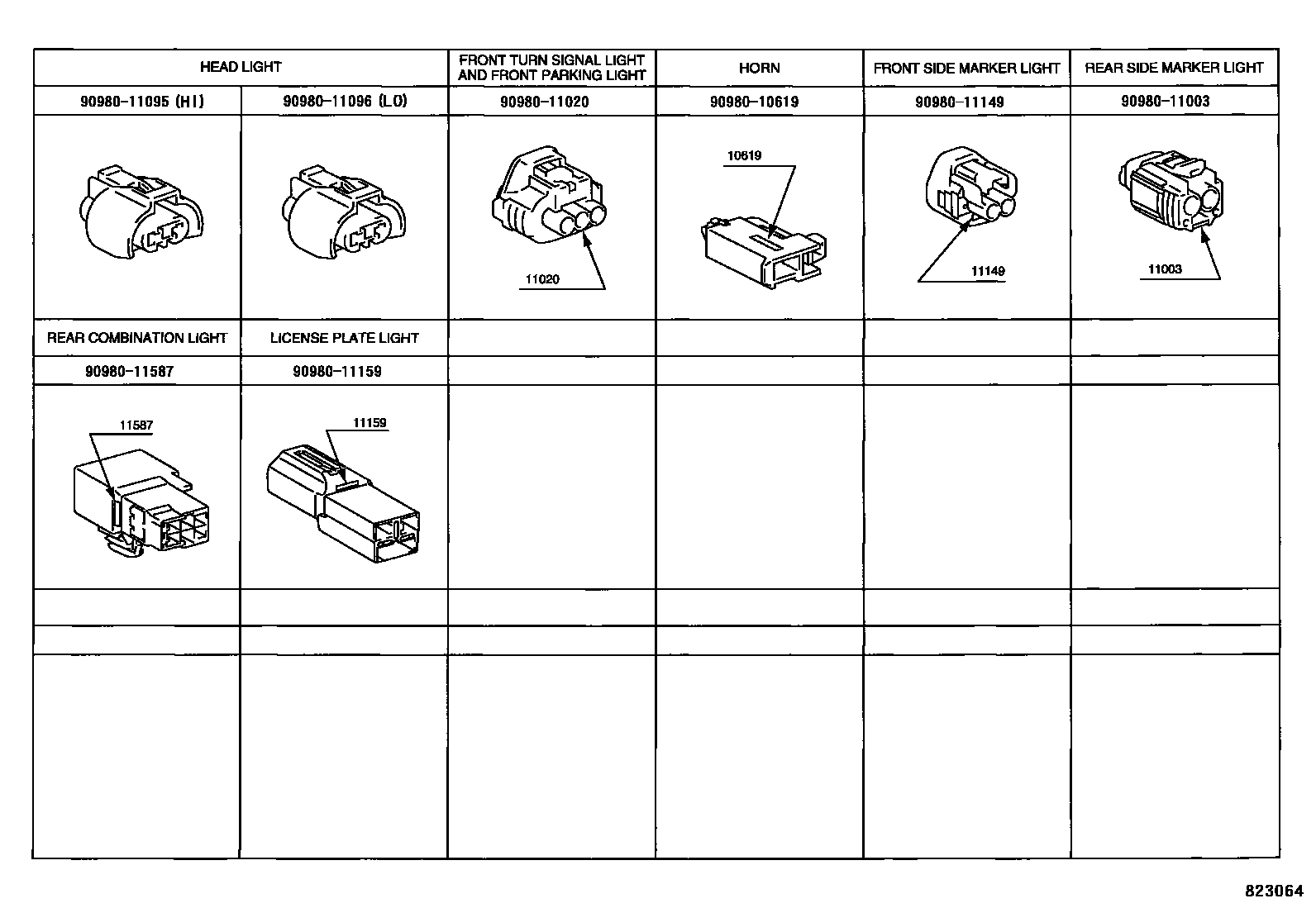

PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

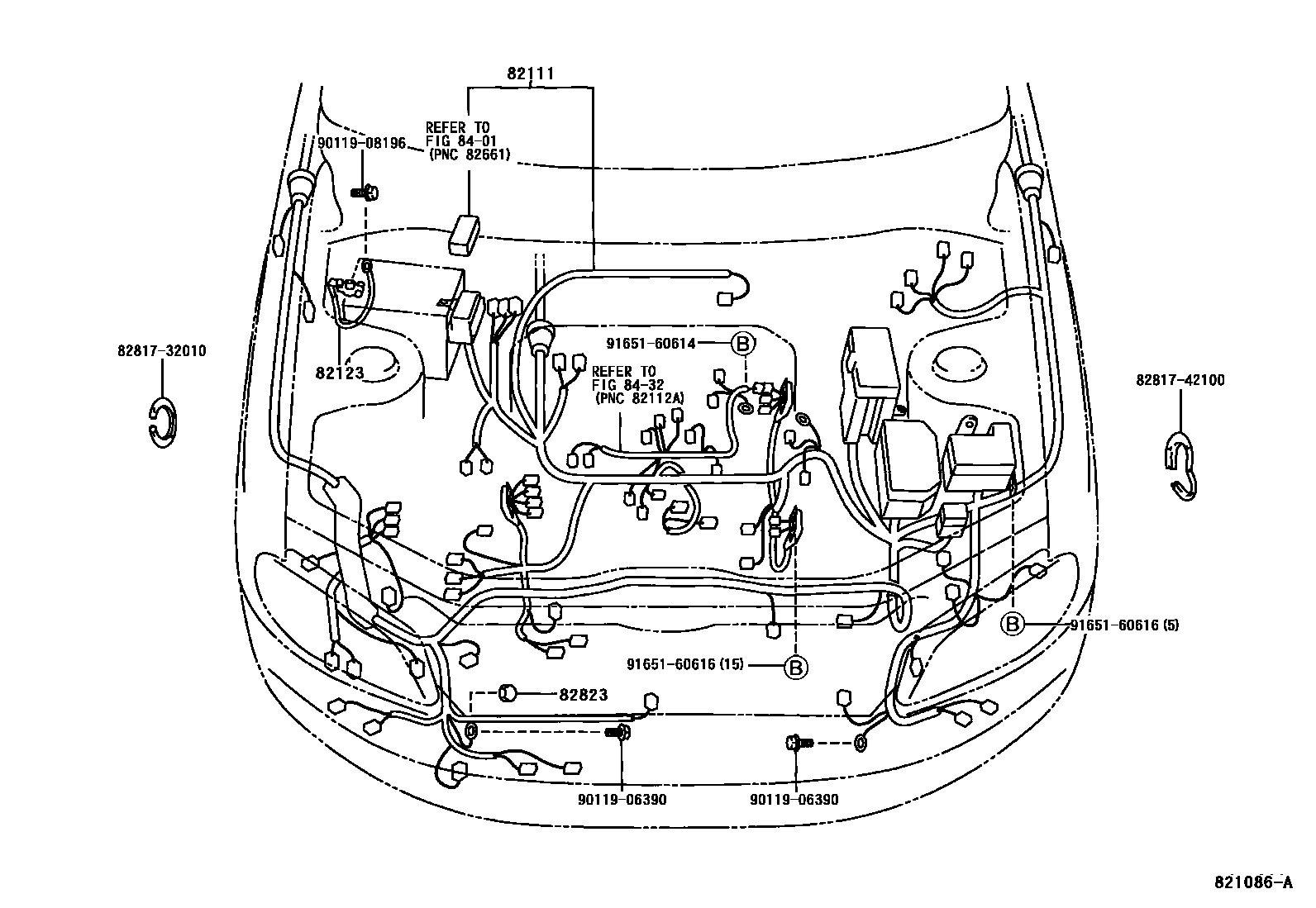

| 82111 | Engine room main wiring harness | 82111-42310 · 82111-4A060 · 82111-4A061 |
| 82123 | Engine No. 3 wiring harness | 82123-42031 · 82123-42050 |

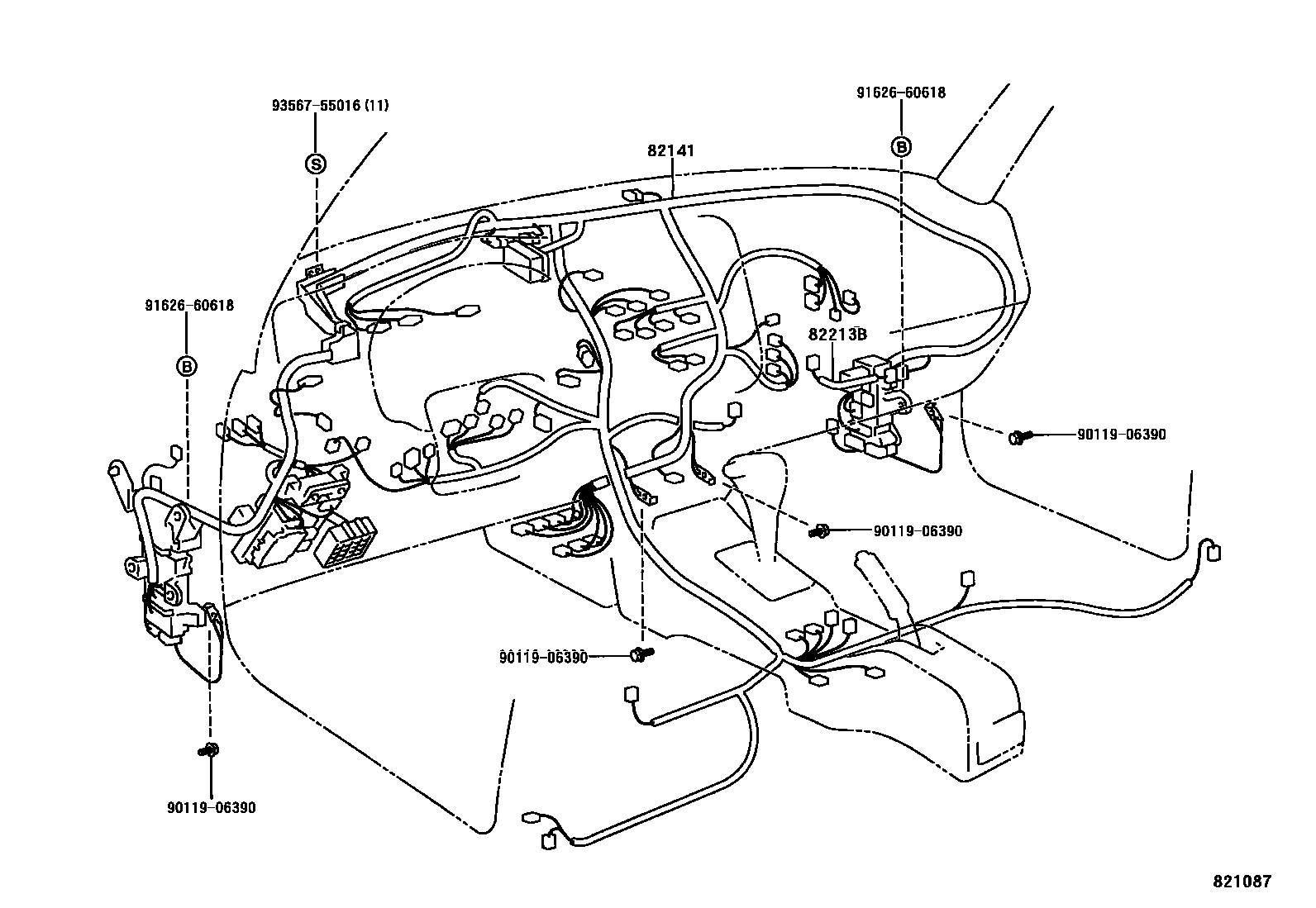

| 82141 | Dashboard wiring harness | 82141-4A620 · 82145-42020 · 82145-42021 |

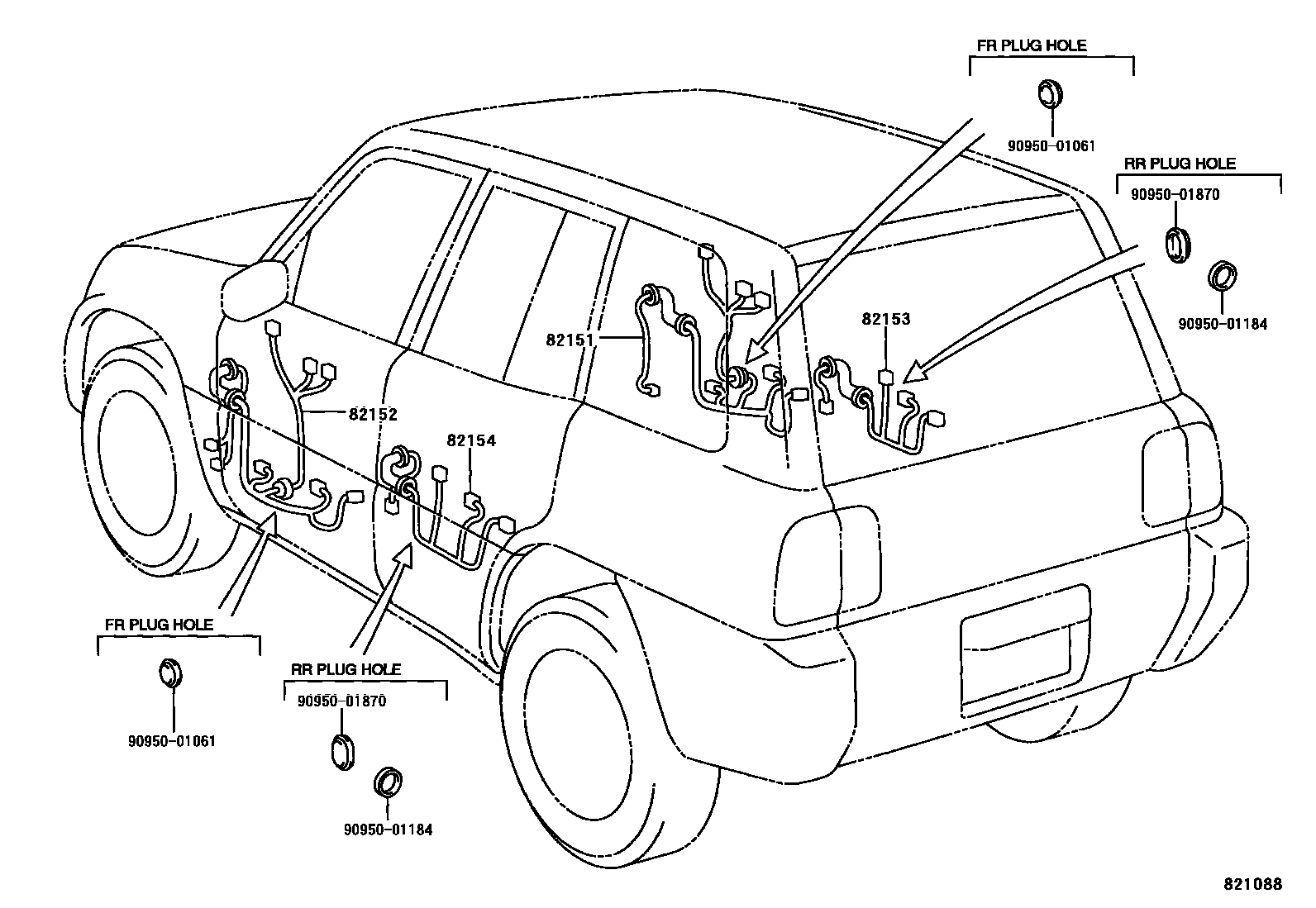

| 82151 | Right front door wiring harness | 82151-42010 · 82151-42370 |
| 82152 | Left front door wiring harness | 82151-42010 · 82152-42310 |
| 82153 | Rear door wiring harness No. 1 | 82153-42010 |
| 82154 | Rear door wiring harness No. 2 | 82154-42010 |

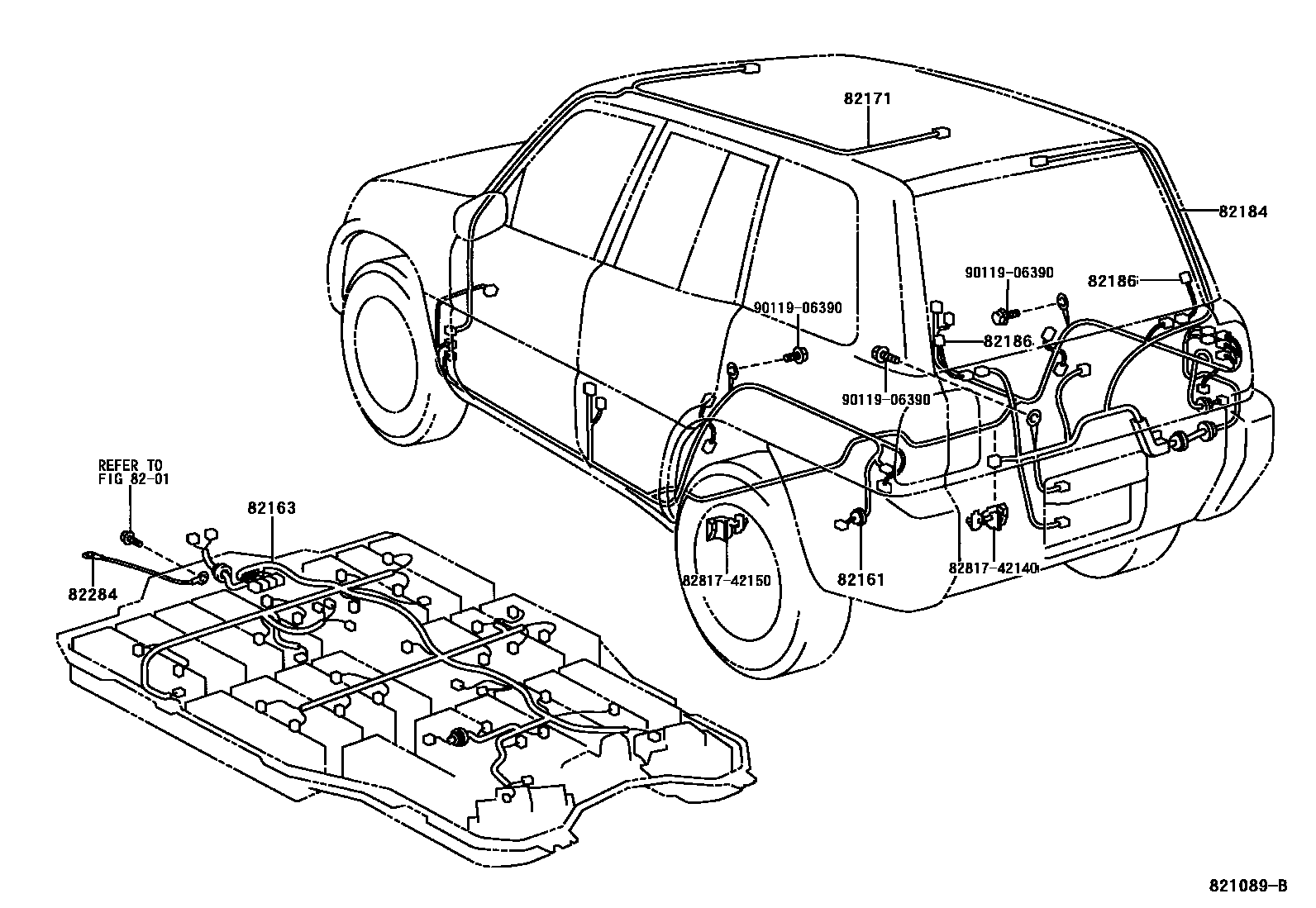

| 82161 | floor wiring harness | 82161-42600 · 82161-42610 · 82161-42611 |
| 82163 | Floor wiring harness No. 3 | 82163-42030 |
| 82171 | Roof No. 1 wiring harness | 82171-42180 · 82171-42280 |
| 82184 | Rear door No. 1 wiring harness | 82184-42170 |
| 82186 | Rear window wiring harness No. 1 | 82186-42010 |
| 82213B | heating wire | 82213-42040 |
| 82284 | Ground wire | 82284-42010 |
| 82823 | No. 1 terminal cover | 82823-50040 |
