Toyota RAV4 蓄电池和蓄电池电缆 — Figure 8201
Toyota RAV4 EPC diagram 8201, 蓄电池和蓄电池电缆, with 4 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

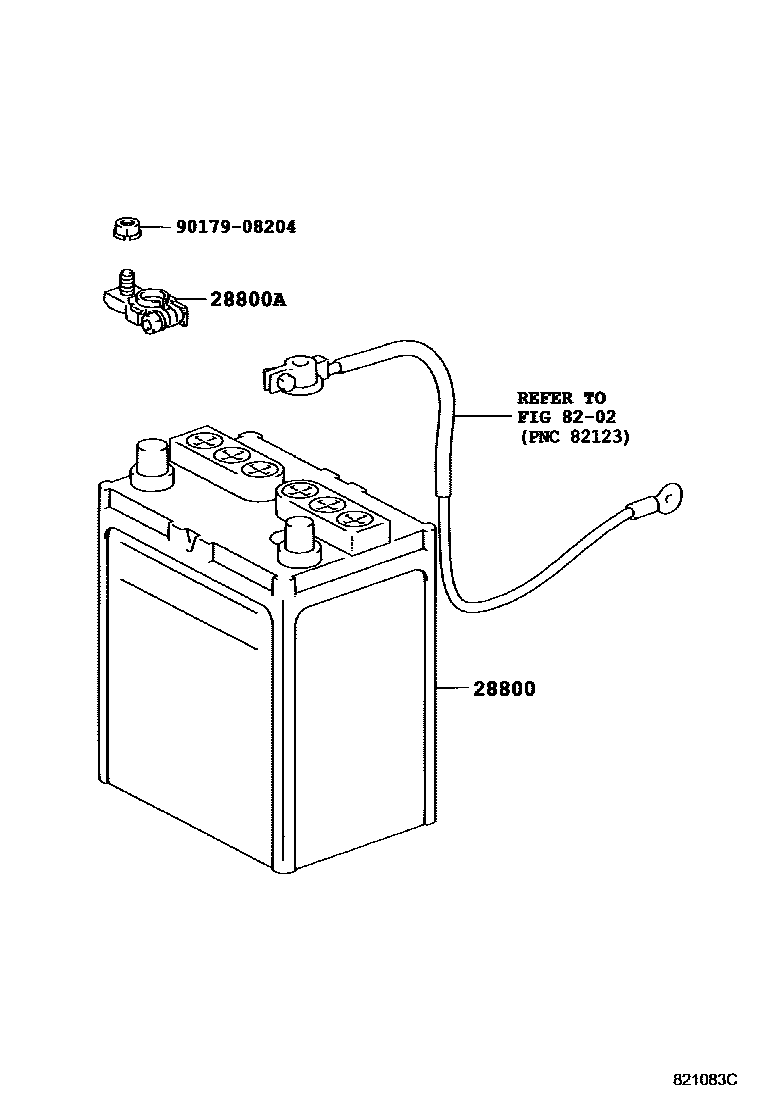

| 28800 | battery | 28800-11301 · 28800-15140 |
| 28800A | battery positive terminal | 90982-05037 |
| 74573A | Electric vehicle battery warning labels | 74573-42050 · 74573-42051 · 74573-42062 |
| 82685E | Maintenance plug warning nameplate | 82685-42020 · 82685-42021 |

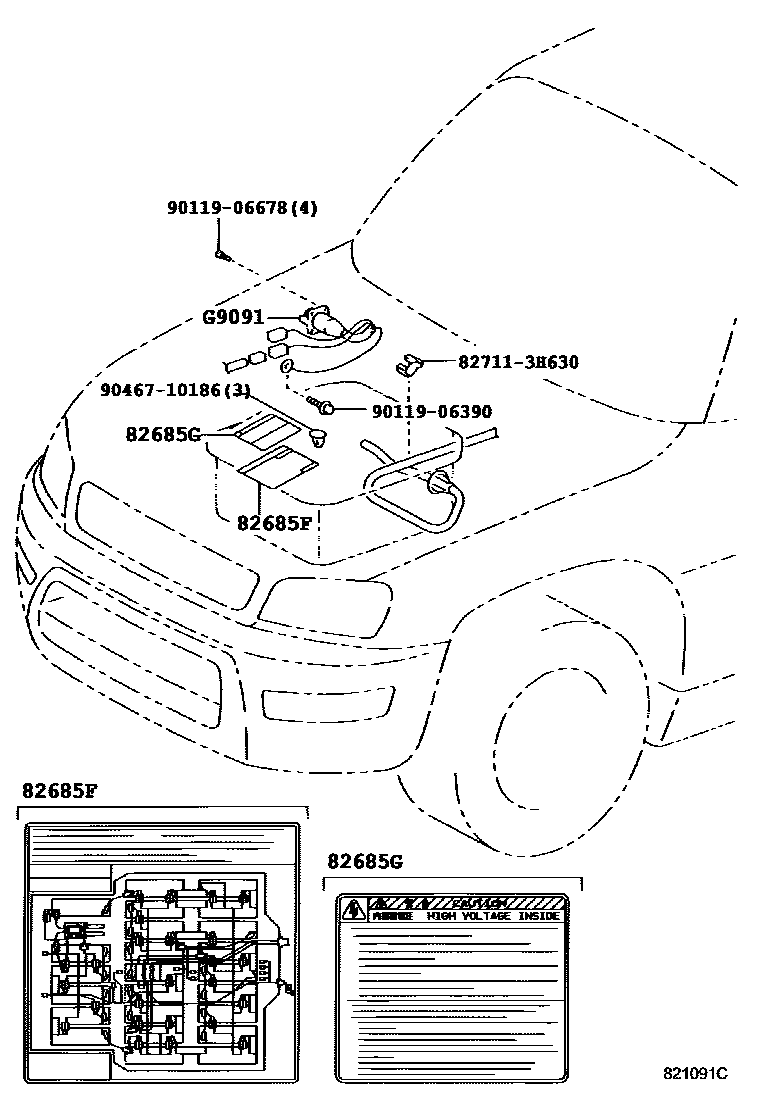

| 82685F | Main battery No. 1 warning nameplate | 82685-42061 |
| 82685G | Main battery No. 2 warning nameplate | 82685-42051 |
| 87130E | Battery blower assembly | 87130-42040 |
| 89891 | Battery ECU panel | 89891-42020 · 89891-42021 |

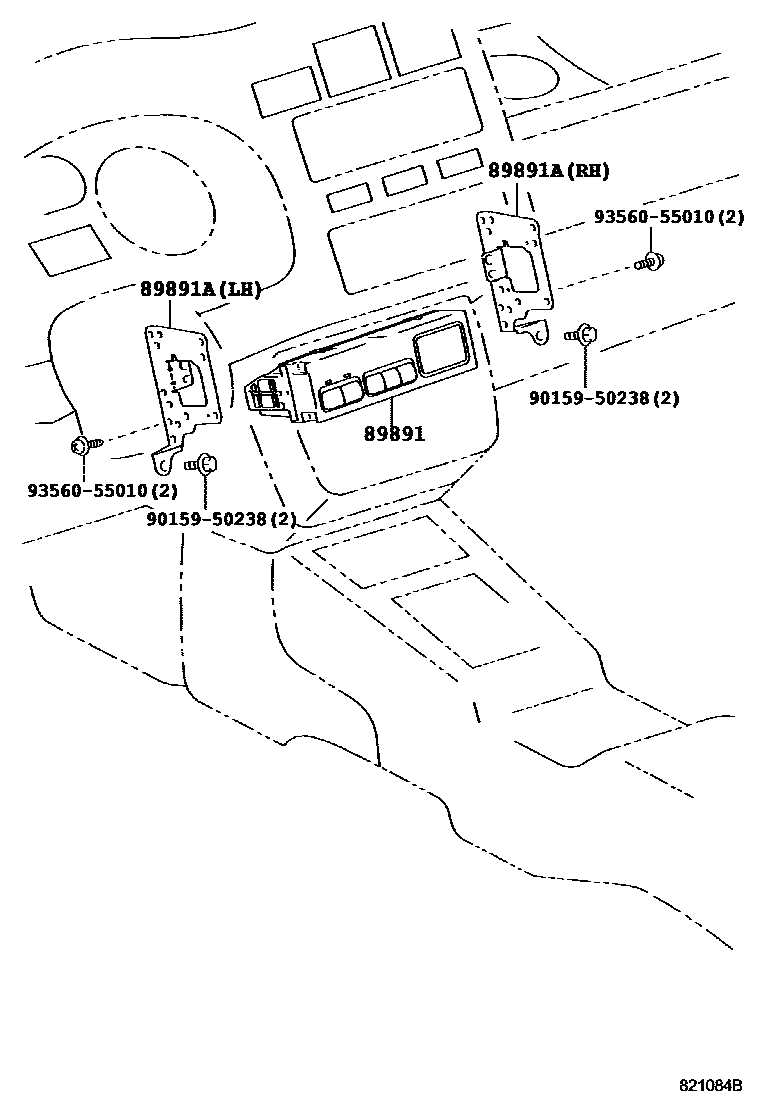

| 89891A | Battery ECU panel bracket | 86211-42040 · 86212-42040 |
| 89892 | Battery sensor ECU | 89892-42020 · 89892-42030 |
| G3829A | Electric vehicle fuse | G3829-42070 · G3829-42080 |
| G3830A | Electric vehicle battery plug assembly | G3830-42030 · G3830-42031 |
| G3834 | Service plug handle | G3834-42010 · G3834-42020 |
| G4282 | No. 2 EV battery temperature sensor | G4282-42010 · G4282-42011 · G4282-42020 |
| G9091 | Electric vehicle charger cable sub-assembly | G9091-42080 |
| G9242 | Main battery cable | G9242-42160 · G9242-42190 · G9242-42200 · G9242-42210 · G9242-42220 · G9242-42230 · G9242-42240 · G9242-42280 · G9242-42290 · G9242-42300 |

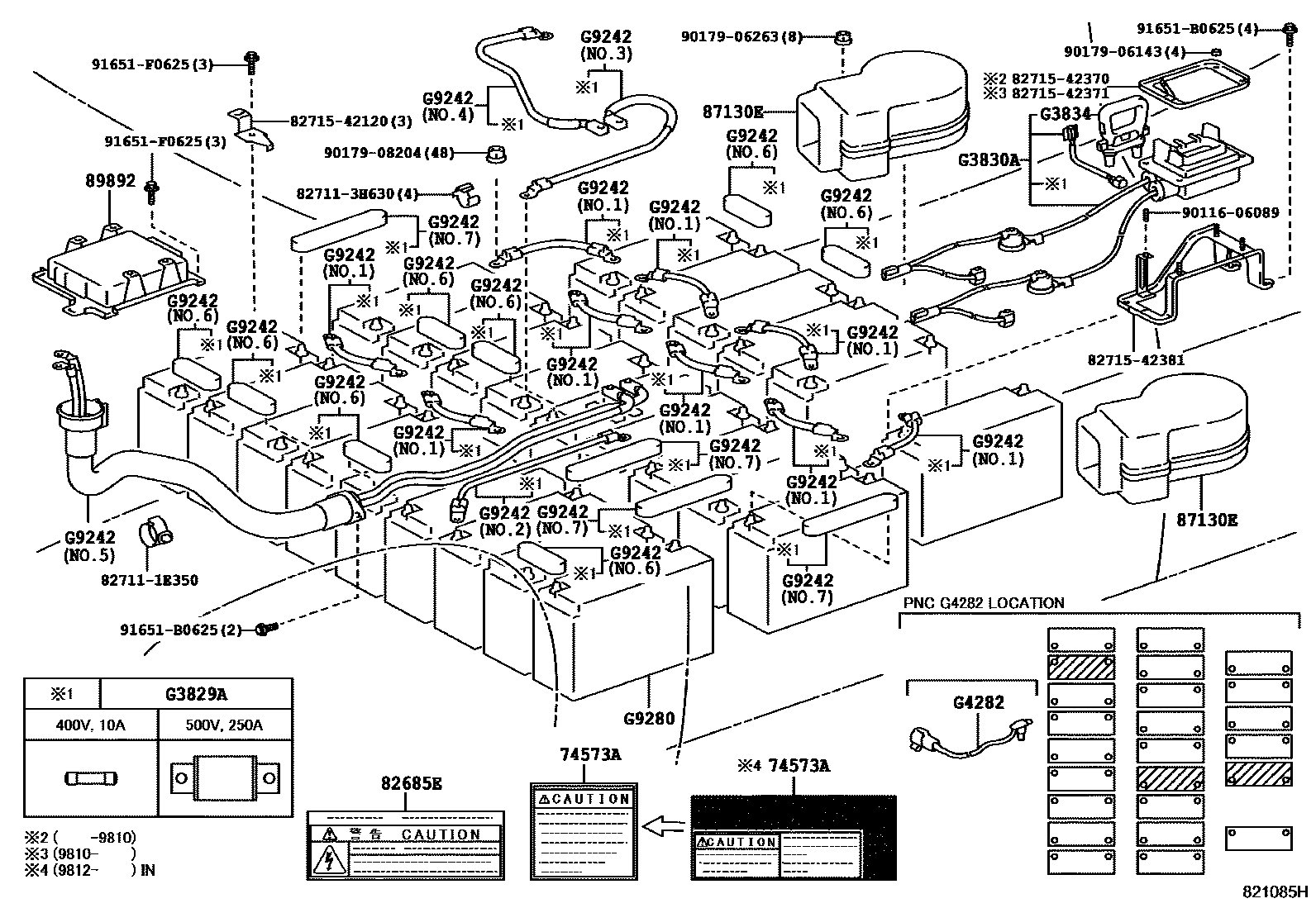

| G9280 | Electric vehicle battery assembly | G9280-42010 · G9280-42011 · G9280-42012 |
