Toyota RAV4 车内灯 — Figure 8121

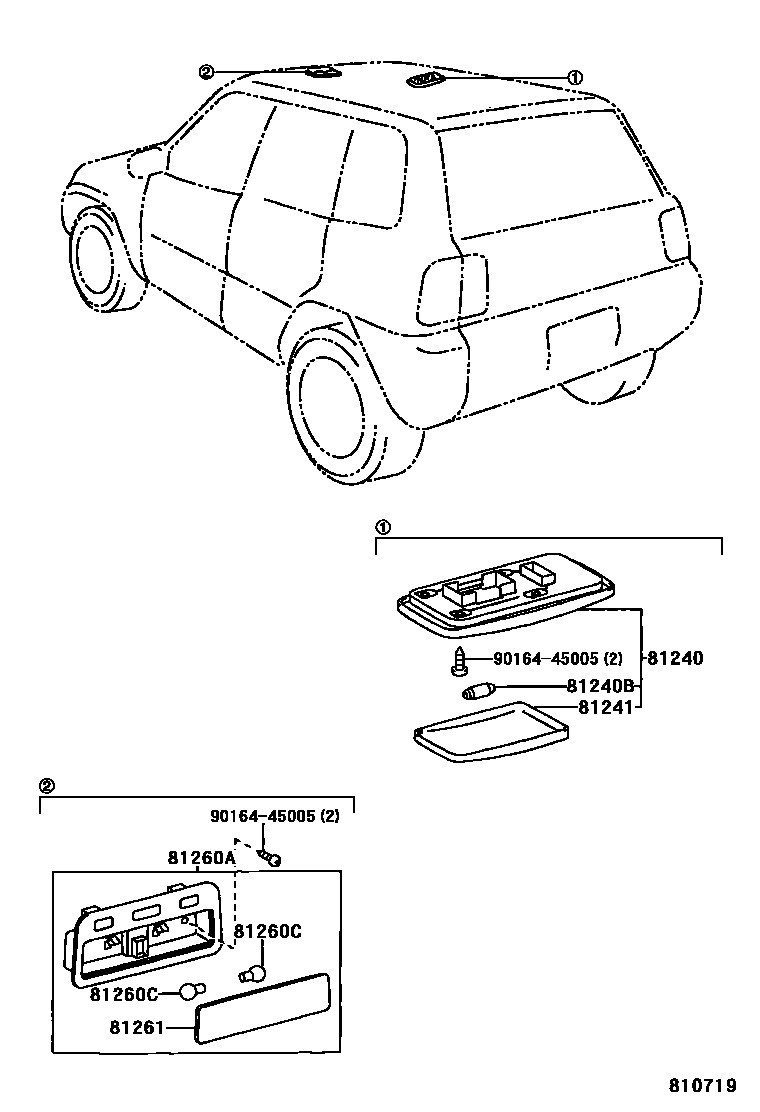

Toyota RAV4 EPC diagram 8121, 车内灯, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81240B | Interior light bulb No. 1 | 90981-14011 |
| 81241 | Interior light cover No. 1 | 81241-12020 |
| 81260C | Light bulb (for reading lamp) | 90981-12005 |
| 81261 | Reading lamp shades and covers | 81261-14080 |
