Toyota RAV4 Headlamp — Figure 8101

Toyota RAV4 EPC diagram 8101, Headlamp, with 1 images and 6 PNC and OE references.

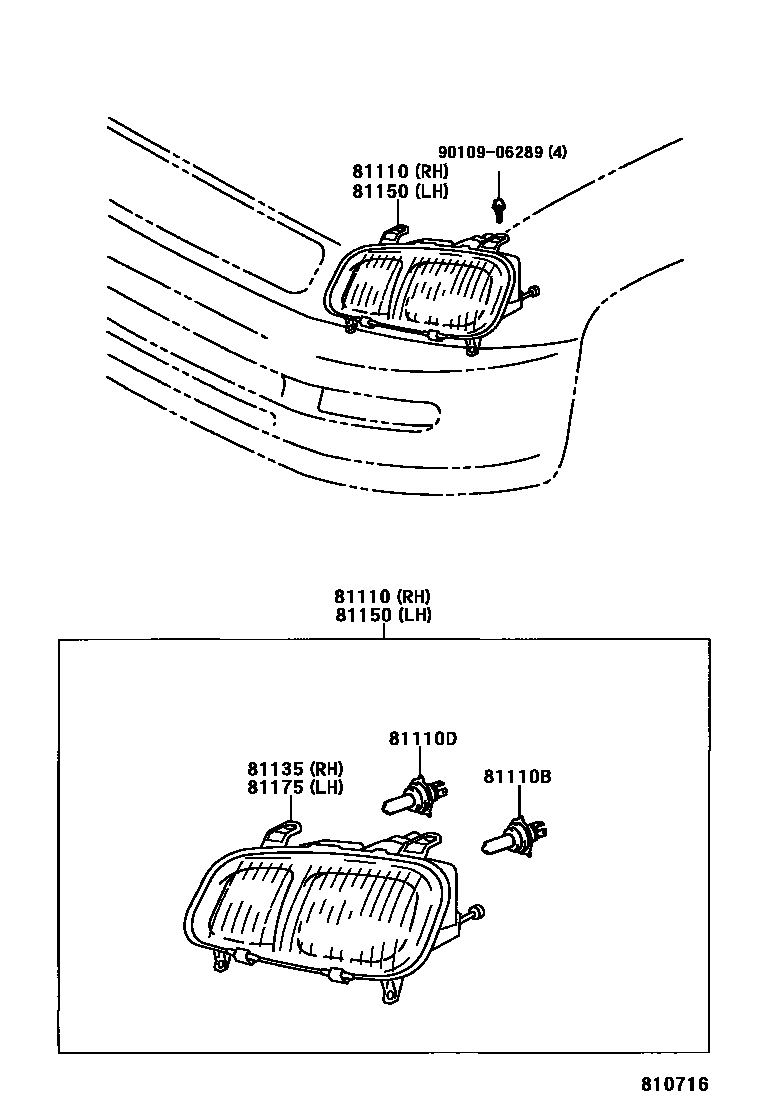

Toyota RAV4 Headlamp EPC diagram — 810716
Headlamp — 810716 (199709 – 999999)

PNC and OE references

PNCPart nameOE numbers
81110Right headlight assembly81110-42090
81110BBulb (for headlight No. 1)90080-81041
81110DBulb (for headlight No. 2)90080-81040
81135Right headlight assembly81105-42090
81150Left headlight assembly81150-42090
81175Left headlight assembly81106-42090
