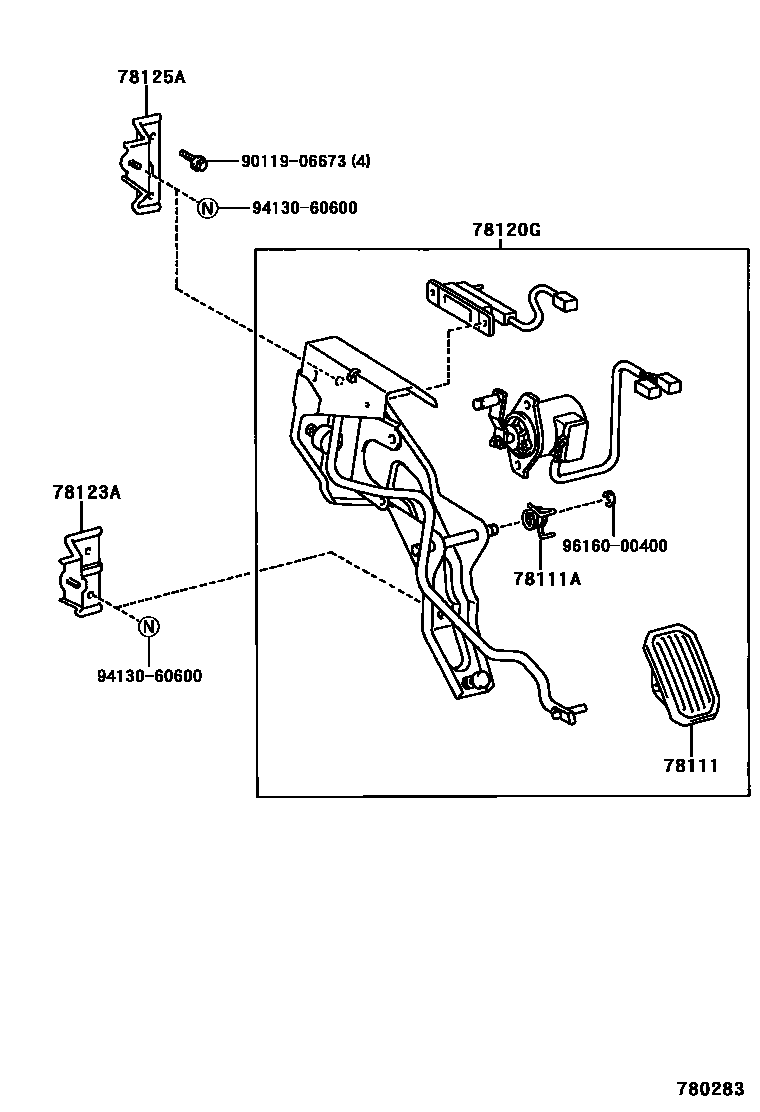

Toyota RAV4 accelerator pedal connecting rod — Figure 7851
Toyota RAV4 EPC diagram 7851, accelerator pedal connecting rod, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 78111 | accelerator pedal | 78111-32010 |
| 78111A | Spring (for gas pedal) | 90508-18050 |
| 78120G | Accelerator pedal lever assembly | 78100-42030 |
| 78123A | Accelerator pedal lever reinforcement | 78123-42010 |
| 78125A | No. 2 accelerator pedal lever bracket | 78125-42020 |
