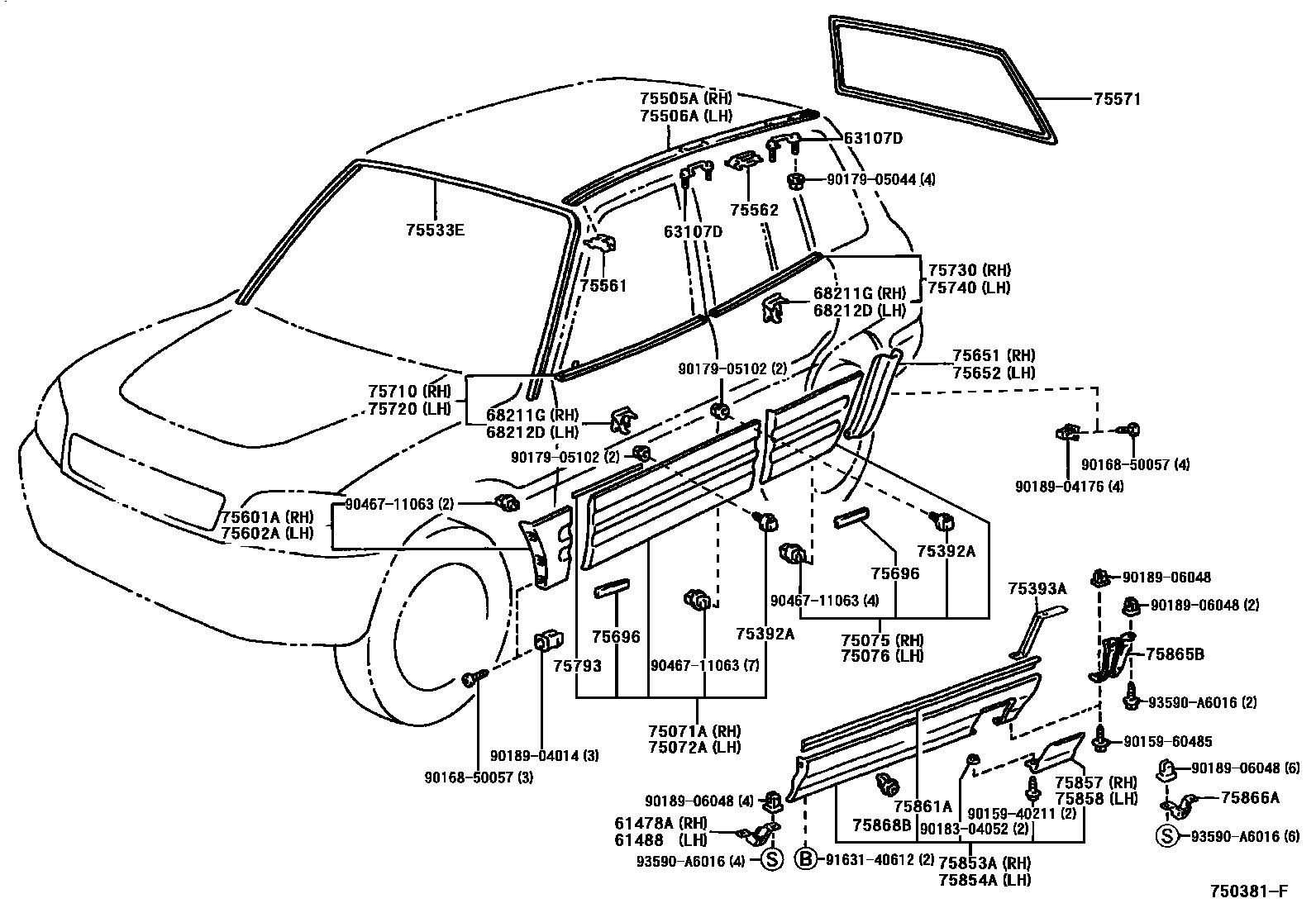

Toyota RAV4 防护条 — Figure 7552
Toyota RAV4 EPC diagram 7552, 防护条, with 1 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 61478A | Right front fender bracket | 61478-42010 |
| 61488 | Left front fender bracket | 61488-42010 |
| 63107D | Roof protection strip bracket sub-assembly | 63107-42011 |
| 68211G | Clip (for right door belt line protection strip) | 68212-16010 |
| 68212D | Clip (for left door belt line protection strip) | 68212-16010 |
| 75071A | Right front door outer protective strip sub-assembly | 75071-42021 |
| 75072A | Left front door outer protective strip sub-assembly | 75072-42021 |
| 75075 | Right rear door outer protective strip sub-assembly | 75075-42011 |
| 75076 | Left rear door outer protective strip sub-assembly | 75076-42011 |
| 75392A | No. 1 outer protective strip fixings | 75392-42011 |
| 75393A | No. 2 right outer protective strip fixing | 75393-42010 |
| 75505A | Drainage groove side decorative strip sub-assembly on the right side of the roof | 75505-42020 |
| 75506A | Roof drain channel left decorative strip sub-assembly | 75506-42020 |
| 75533E | Windshield outer protective strip | 75533-42030 |
| 75561 | No. 1 roof drain channel side decorative strip clip | 75561-42020 |
| 75562 | No. 2 roof drain channel side decorative strip clip | 75562-42020 |
| 75571 | Protective strips on the outside of the rear window | 75573-42010 |
| 75601A | Right front fender protection strip sub-assembly | 75601-42011 |
| 75602A | Left front fender protection strip sub-assembly | 75602-42011 |
| 75651 | Right side outer protective strip | 75651-42020 |
| 75652 | Left side outer protective strip | 75652-42020 |
| 75696 | No. 1 body outer protective strip lining | 75696-42010 · 75696-42030 |
| 75710 | Right front door waistline protection strip assembly | 75710-42020 |
| 75720 | Left front door waistline protection strip assembly | 75720-42020 |
| 75730 | Right rear door waistline protection strip assembly | 75730-42010 |
| 75740 | Left rear door waistline protection strip assembly | 75740-42010 |
| 75793 | Front door outer upper protective strip lining | 75793-42020 |
| 75853A | Right side door sill panel center protective strip | 75850-42020 |
| 75854A | Left side door sill panel center protective strip | 75860-42020 |
| 75857 | Right side door sill panel protective strip cover | 75857-42020 |
| 75858 | Left side door sill panel protective strip cover | 75858-42020 |
| 75861A | No. 1 door sill panel protective strip protective cover | 75861-42020 |
| 75865B | No. 2 door sill panel protective strip fixings | 75865-42020 |
| 75866A | Door sill panel protective strip fixings | 75866-42010 |
| 75868B | No. 2 door sill plate protective strip clip | 75868-30020 |
