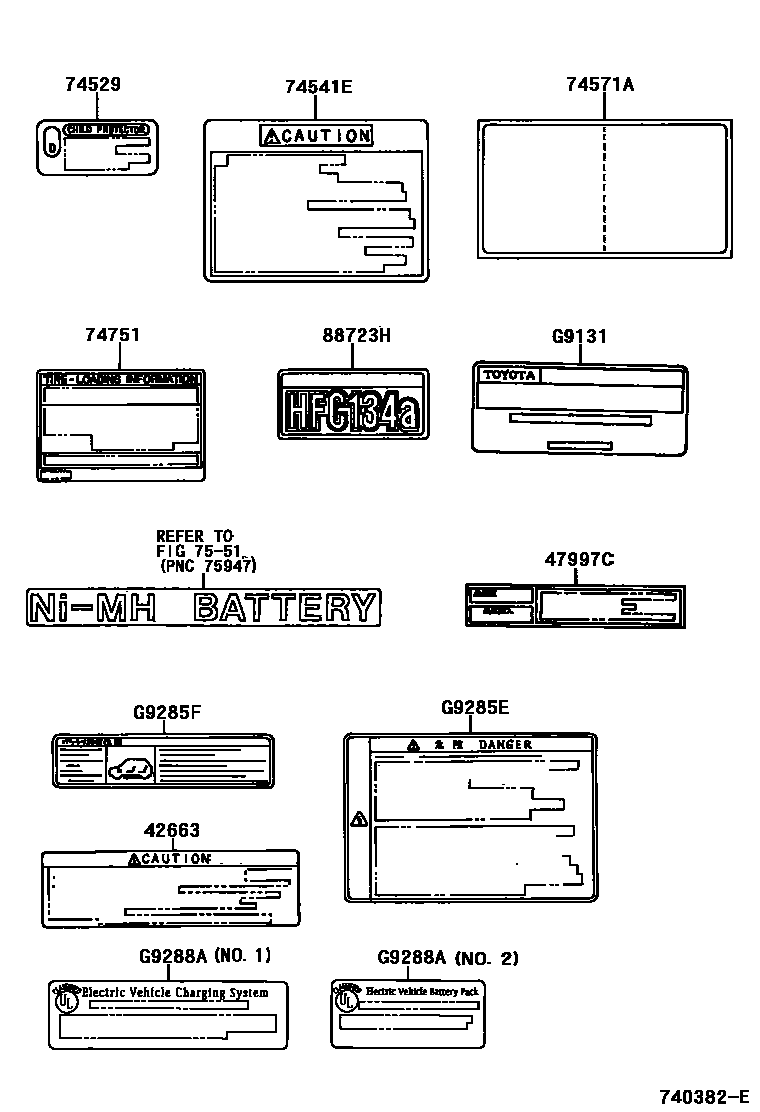

Toyota RAV4 warning nameplate — Figure 7455
Toyota RAV4 EPC diagram 7455, warning nameplate, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42663 | wheel warning label | 42663-42010 |
| 47997C | Accumulator No. 1 Warning Label | 47997-30010 |
| 74529 | Child safety or child restraint lock warning nameplate | 69339-12010 |
| 74541E | Small spare tire warning plate | 42668-12010 |
| 74571A | Label cover protective film | 74571-28020 · 74571-35020 |
| 74751 | tire pressure information label | 42661-42100 |
| 88723H | Cooler maintenance warning label | 88723-42030 |
| G9131 | Electric Vehicle Emission Control Information Label | G9131-42011 · G9131-42012 · G9131-42013 · G9131-42014 · G9131-42015 |
| G9285E | No. 1 HV battery warning label | G9285-42020 |
| G9285F | No. 1 HV battery information label | G9285-42010 |
| G9288A | Battery charging precautions label | G9288-42010 · G9288-42020 |
