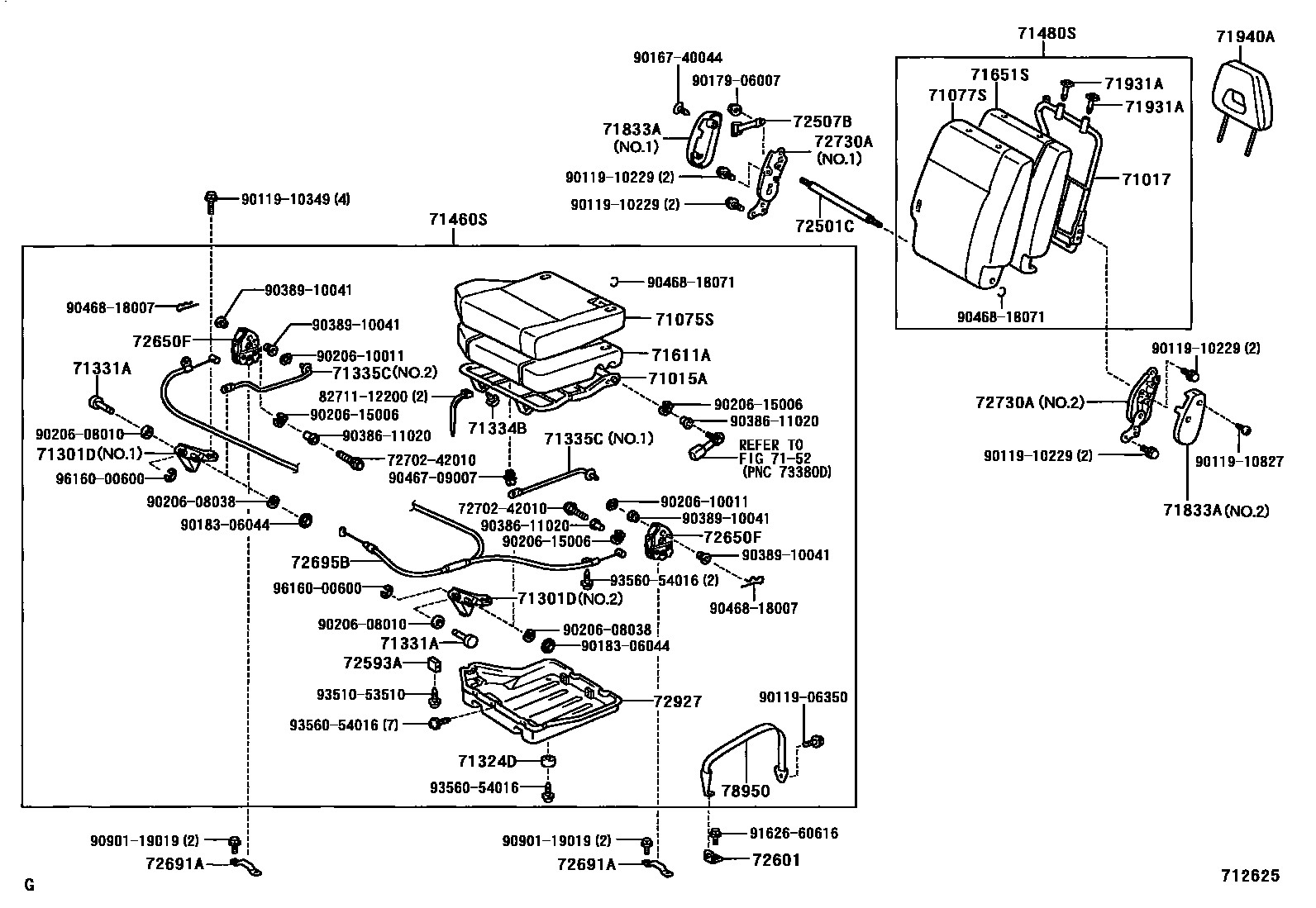

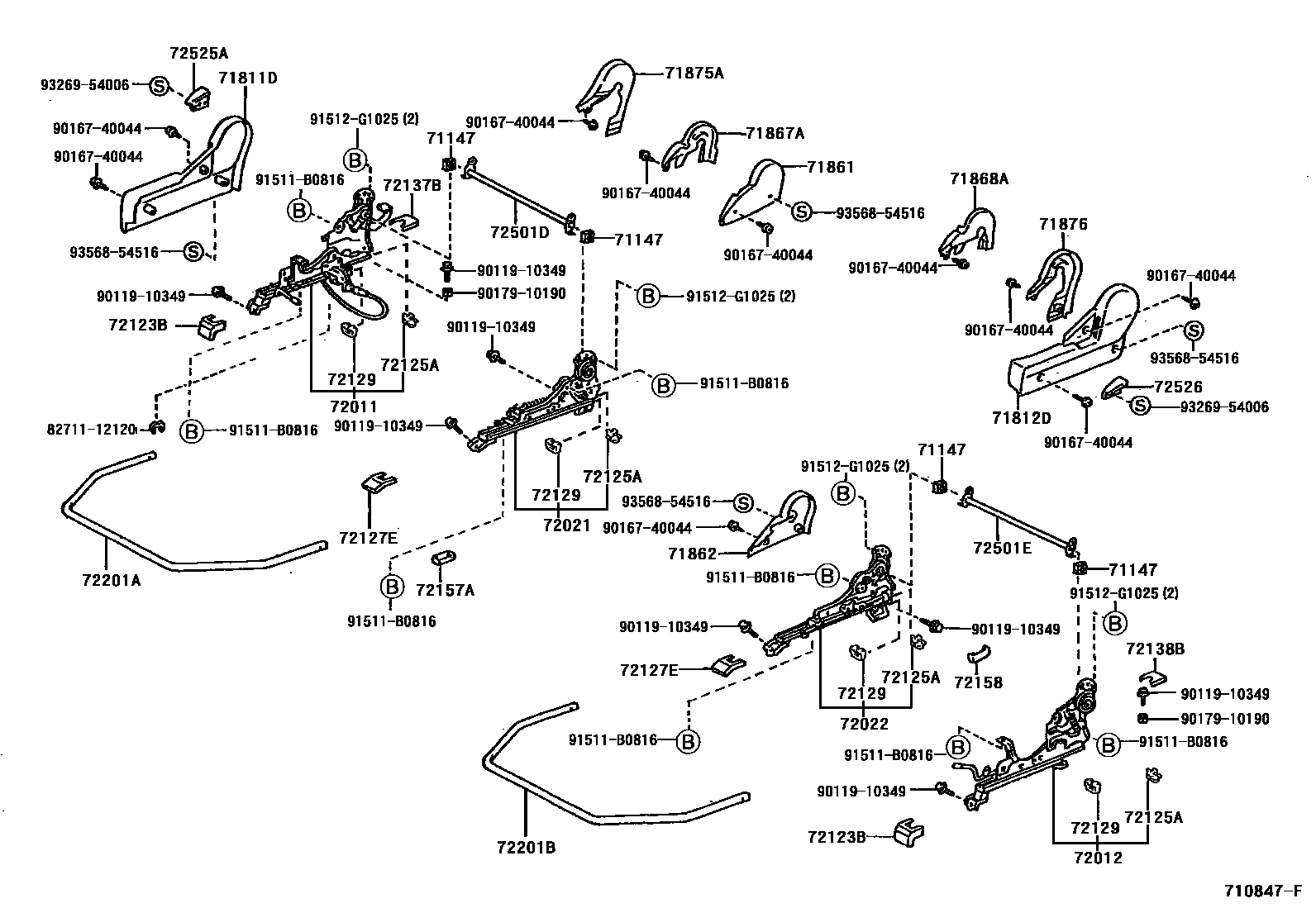

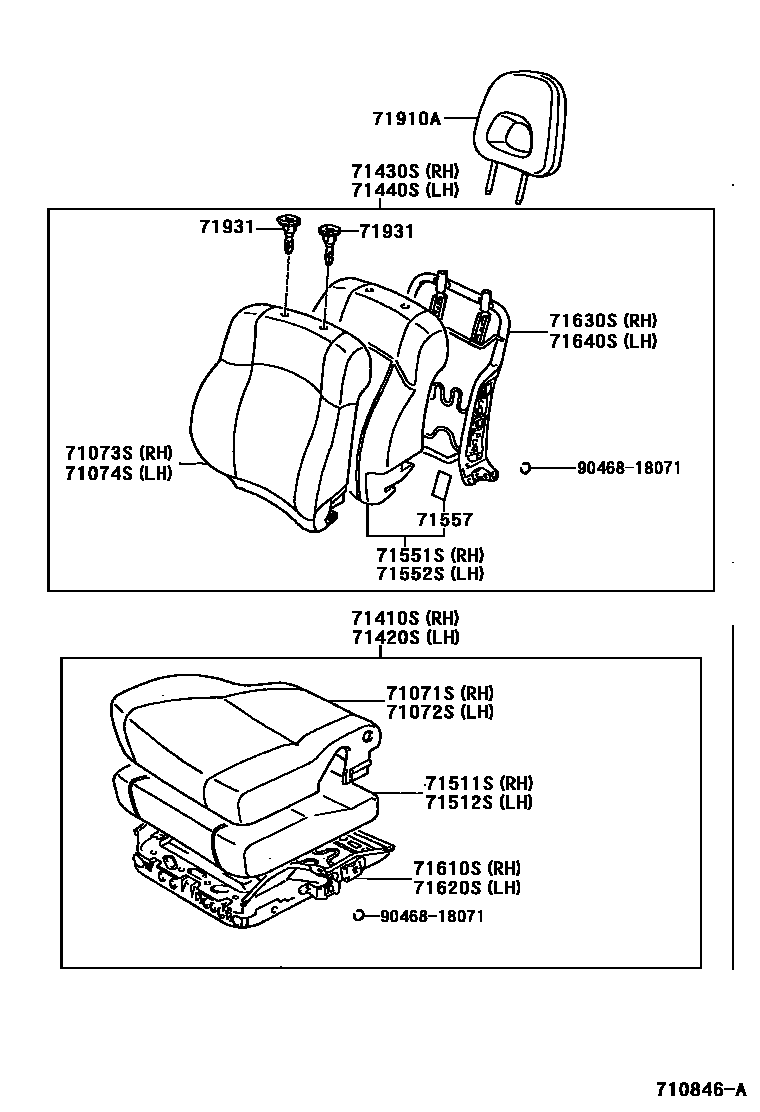

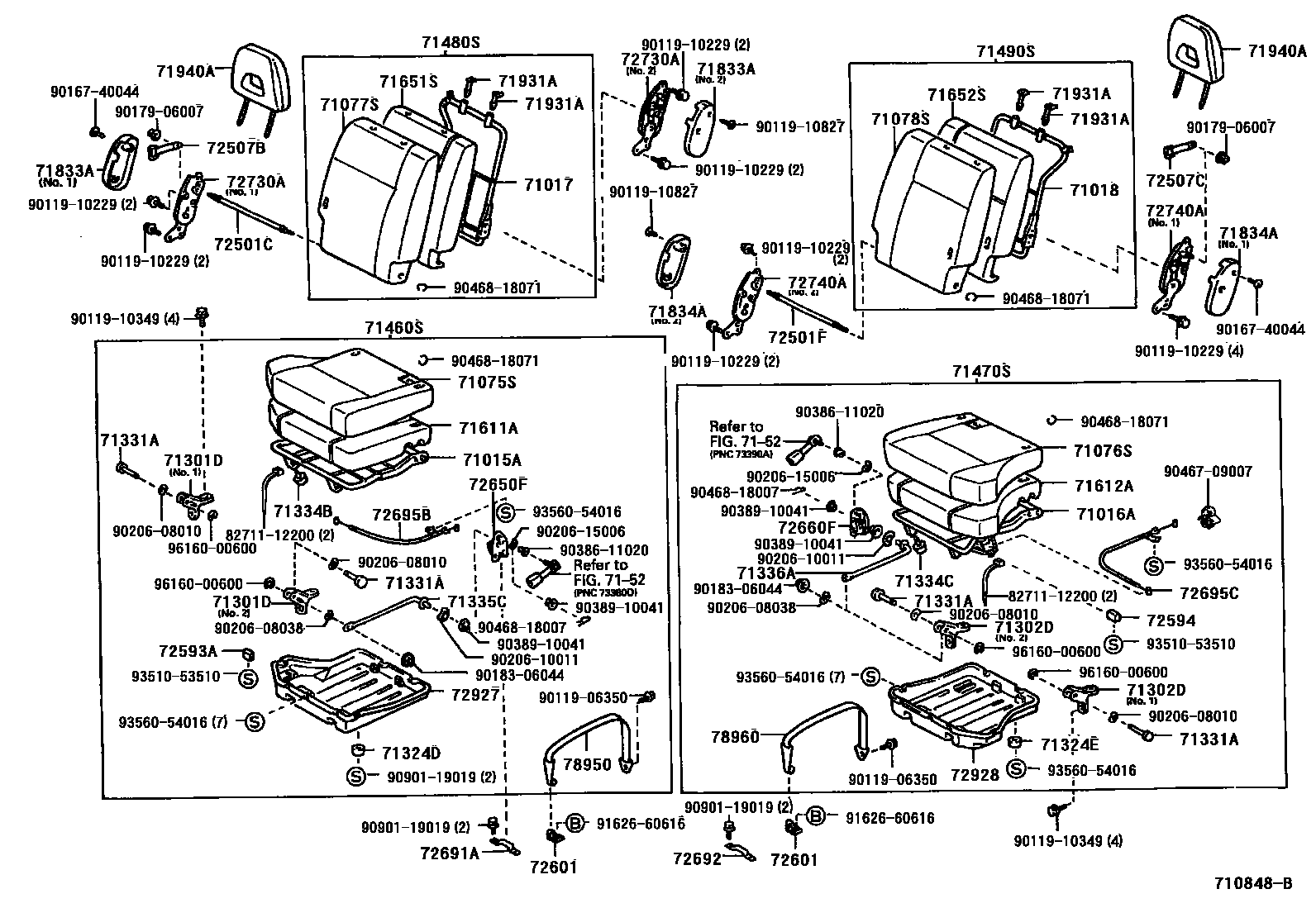

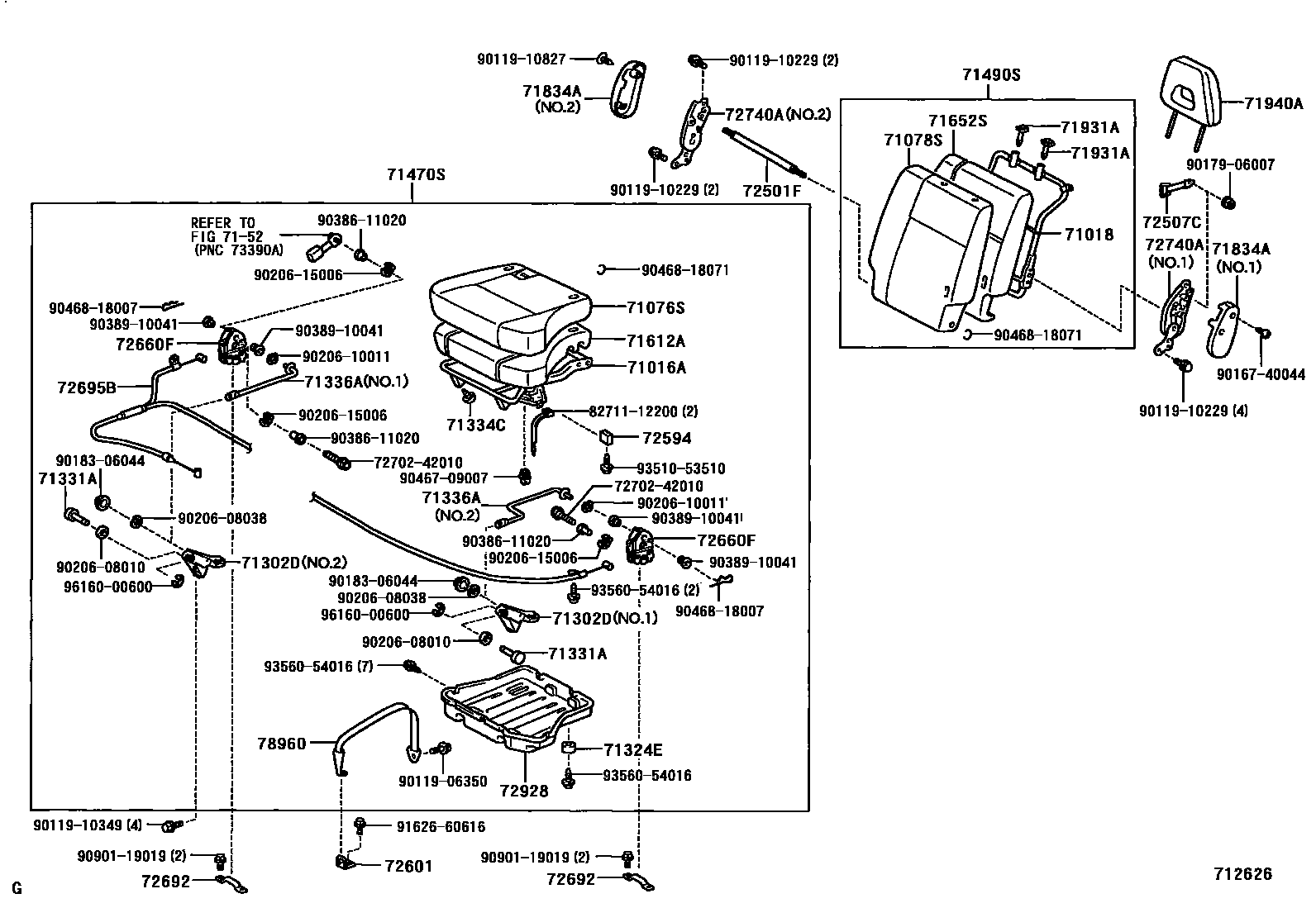

Toyota RAV4 座椅和座椅滑轨 — Figure 7151
Toyota RAV4 EPC diagram 7151, 座椅和座椅滑轨, with 5 images and 60 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71015A | Rear right seat cushion frame sub-assembly | 71015-42030 · 71015-42060 · 71015-42140 |
| 71016A | Rear left seat cushion frame sub-assembly | 71016-42030 · 71016-42060 · 71016-42140 |
| 71017 | Right rear seat back frame sub-assembly | 71017-42031 · 71017-42050 |
| 71018 | Rear left seat back frame sub-assembly | 71018-42031 · 71018-42050 |
| 71071S | Front right seat cushion cover (for split seats) | 71071-42300 |
| 71072S | Front left seat cushion cover (for split seats) | 71071-42300 |
| 71073S | Front right seat back cover (for split seats) | 71073-42300 |
| 71074S | Front left seat back cover (for split seats) | 71073-42300 |
| 71075S | Rear right seat cushion cover (for split seats) | 71075-42290 |
| 71076S | Rear left seat cushion cover (for split seats) | 71076-42290 |
| 71147 | seat spring muffler | 71147-35010 |
| 71301D | Rear right seat hinge sub-assembly | 71301-42020 · 71301-42030 · 71301-42040 · 71301-42050 |
| 71302D | Rear left seat hinge sub-assembly | 71301-42020 · 71302-42020 · 71302-42030 · 71302-42040 |
| 71324D | Rear right seat cushion | 71324-42020 |
| 71324E | Rear left seat cushion | 71324-42020 |
| 71331A | Rear seat hinge pin | 71331-42010 |
| 71334B | Rear right seat foot stop | 71334-42010 |
| 71334C | Rear left seat foot stop | 71334-42010 |
| 71335C | Rear right seat cushion connecting rod stay | 71335-42021 · 71335-42030 |
| 71336A | Rear left seat cushion connecting rod stay | 71336-42021 · 71336-42030 |
| 71410S | Front right seat cushion assembly (for split seats) | 71410-42200 |
| 71420S | Front left seat cushion assembly (for split seats) | 71410-42200 |
| 71430S | Front right seat back assembly (for split seats) | 71430-42310 |
| 71440S | Front left seat back assembly (for split seats) | 71430-42310 |
| 71460S | Rear right seat cushion assembly (for split seats) | 71460-42500 |
| 71470S | Rear left seat cushion assembly (for split seats) | 71470-42460 |
| 71511S | Front right seat cushion cushion (for split seats) | 71511-42020 |
| 71512S | Front left seat cushion cushion (for split seats) | 71511-42020 |
| 71551S | Front right seat back cushion (for split seats) | 71551-42020 |
| 71552S | Front left seat back cushion (for split seats) | 71551-42020 |
| 71557 | Lower lining of front seat backrest | 71557-42030 |
| 71610S | Front right seat cushion spring assembly (for split seats) | 71610-42020 |
| 71611A | Rear right seat cushion | 71611-42020 · 71611-42060 |
| 71612A | Rear left seat cushion | 71612-42020 · 71612-42060 |
| 71620S | Front left seat cushion spring assembly (for split seats) | 71610-42020 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-42020 |
| 71640S | Front left seat back spring assembly (for split seats) | 71630-42020 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-42020 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-42020 |
| 72011 | Front right seat outer adjuster sub-assembly | 72011-42110 · 72011-42111 |
| 72012 | Front left seat outer adjuster sub-assembly | 72012-42080 · 72012-42081 |
| 72021 | Front right seat inner adjuster sub-assembly | 72021-42060 · 72021-42061 |
| 72022 | Front left seat inner adjuster sub-assembly | 72022-42050 · 72022-42051 |
| 72125A | Rear seat upper slide rail cover | 72125-10010 |
| 72129 | No. 1 seat slide rail lower rail protective cover | 72129-20040 |
| 72201A | Right seat slide rail handle sub-assembly | 72201-42010 |
| 72201B | Left seat slide rail handle sub-assembly | 72201-42010 |
| 72501C | Seat back recline adjuster connecting pipe sub-assembly | 72345-42010 |
| 72501D | Right seat back recline adjuster connecting pipe sub-assembly | 72501-42030 |
| 72501E | Left seat back recline adjuster connecting pipe sub-assembly | 72501-42030 |
| 72501F | Seat back recline adjuster connecting pipe sub-assembly | 72345-42010 |
| 72601 | Rear seat lock sub-assembly | 72601-42020 |
| 72650F | Rear right seat lock assembly | 72650-42021 |
| 72660F | Rear left seat lock assembly | 72660-42021 |
| 72691A | Rear seat No. 1 cushion lock | 72691-42020 |
| 72692 | Rear seat 2 seat cushion lock | 72691-42020 |
| 72695B | Rear right seat lock control cable | 72695-42010 · 72695-42030 |
| 72695C | Rear left seat lock control cable | 72695-42020 |
| 72730A | Rear right seat backrest tilt adjuster assembly | 72730-42040 · 72730-42050 |
| 72740A | Rear left seat backrest angle adjuster assembly | 72740-42040 · 72740-42050 |
