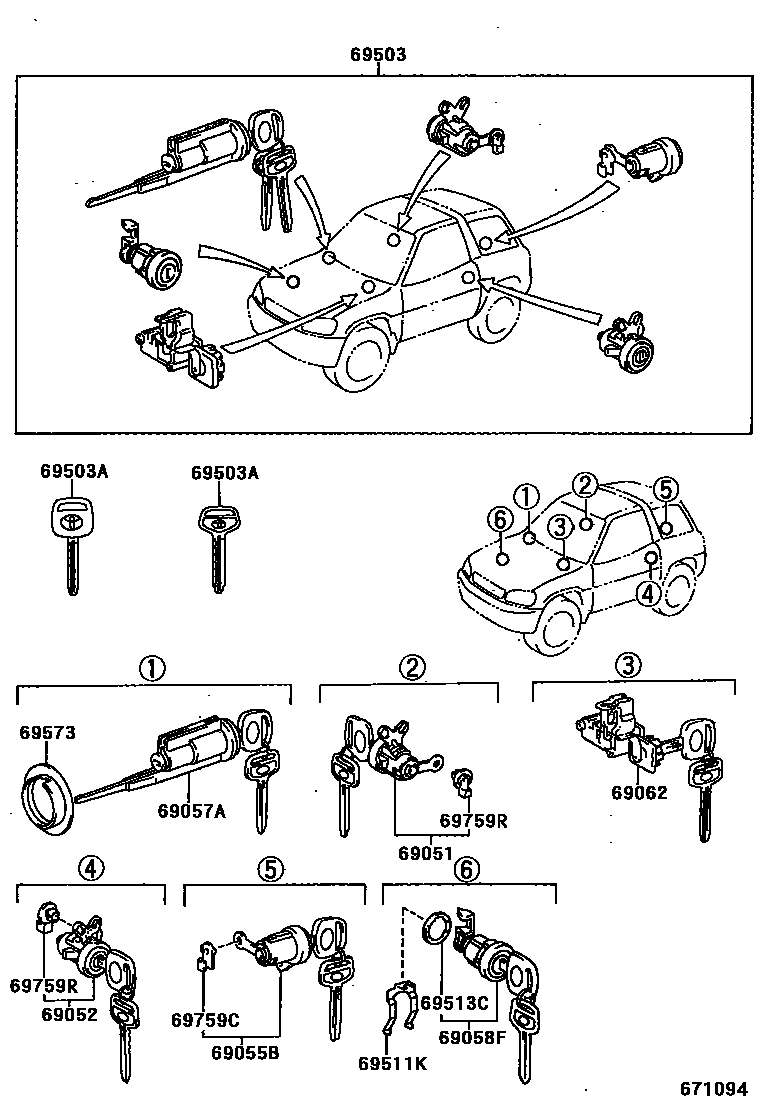

Toyota RAV4 锁芯组件 — Figure 6765
Toyota RAV4 EPC diagram 6765, 锁芯组件, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-42060 |
| 69052 | Left door lock cylinder and key assembly | 69052-42060 |
| 69055B | Rear door lock cylinder and key assembly | 69055-42030 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-12400 |
| 69058F | Electric vehicle charger cover lock cylinder and key assembly | 69058-42030 |
| 69062 | Glove box lock cylinder and key assembly | 69056-42030 |
| 69503 | Door lock cylinder components | 69005-42160 · 69005-42180 |
| 69503A | external tooth key | 90999-00185 · 90999-00187 |
| 69511K | No. 1 Electric Vehicle Charger Lock Cylinder Fixing Part | 69511-32010 |
| 69513C | Electric vehicle charger cover lock gasket | 69513-32010 |
| 69573 | Ignition switch lock cylinder gasket | 69573-42020 |
| 69759C | Back door lock cylinder buckle | 69759-24080 |
| 69759R | Front door lock cylinder buckle | 69759-22080 · 69759-22090 |
